Posted by: illustrarch
Working Group: Matteo Pigni, Oscar Benaim, Luis Acedo-Rico
Academic Year: 2017/2018
Professors: Cino Zucchi, Carolina Pacchi, Paola Sturla, Stefano Tropea Tutors | Federica Basile, Matteo Puglisi
Instagram: @teopigni, @oscarbenaim, @giginepal
Behance Webpage: https://www.behance.net/TeoP
The aim of this urban project is to research “on the ﬁeld” the relationships between the physical metamorphosis of an existing urban landscape and the shift in its environmental qualities and social relevance. The project site is the Porta Genova railway yard, in Milan, which presents a critical issue currently unresolved: the railway yard is cutting in two parts the urban pattern, dividing the fabric of the city. On the urban side the project wants to sew up this portion of the city, creating a city not locked in private and privatized blocks but that is porous, inclusive, ready to welcome differences through a place of socialization and meeting.
The strategy of the intervention, and the urban structure that derives from it, is the creation of a meaningful public open space taking the form of an open and permeable margin in which the alternation of irregular “bubbles” of vegetation, slightly raised from the pavement, break the linearity of the square and encourage access to the the site, inviting people to sit down and stroll around. The structure of the landscape is entrusted to a few simple elements: liquidambar and magnolias trees on the perimeter, ephemeral volumes of grasses and aromatic plants, cement ﬁnished paving on the paths and cobblestone inside the rest areas, recreation equipment for children and lighting elements. In addition to the urban design of the public square, the design program includes a student hostel, services and a multipurpose space for events and expositions. In order to ensure the major permeability to the public space the two new volumes, one hosting the hostel and the other for the multi-purpose pavilion, are placed at the two poles of the area in order to obtain a visual and spatial tension. The pavilion, placed at the beginning of the site near the station, is a low and ﬂat volume taking up the form of the vegetation “bubbles” present in the square.

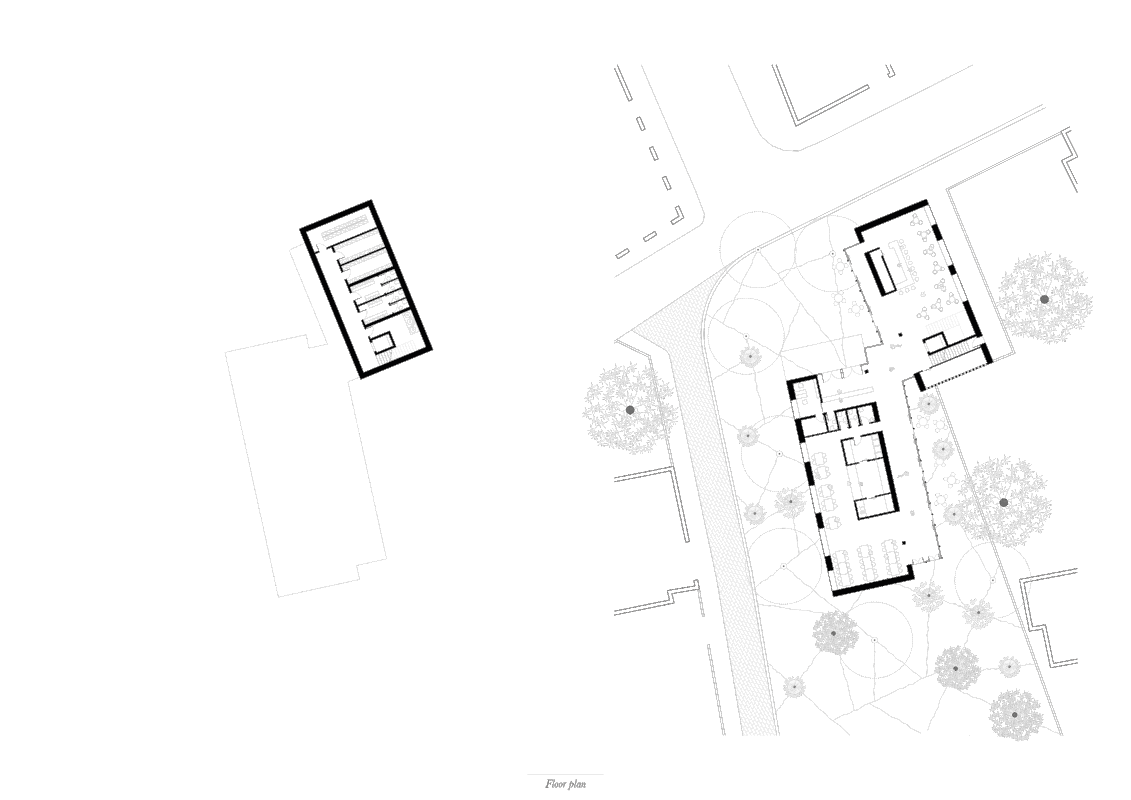

The hostel instead is placed in the northern part of the area, opposite to the pavilion, and consists in two sharp blocks, staggered both in section and in plan, linked in between by a lighter and ephemeral volume. The simple rectangular plans are oriented following the tight site morphology and the alignments coming from the surrounding buildings, by means a design approach that seeks a dialogue between old and new.
The ground ﬂoor is designed in order to have entrances situated at points where there are ample lobbies ensuring, also thanks to big windows, a visual permeability through the external spaces. The ground ﬂoor host different public activities, while on the upper ﬂoors are present private or shared rooms, of varying scale, binding together by a “covered gallery” that works not only as distributional element but becomes also a common spaces for each storey. In particularly shared rooms are characterized by couples of bunk beds assembled into one single wooden structure, equipped with drawers and nooks where to storage luggages, used to obtain modular rooms. Lastly the last ﬂoor hosts a ﬂoor-to-ceiling shared space, equipped with a common kitchen and sofas, where guests can chill and enjoy the view from the terrace overlooking the landscape and the city itself.
