Grid in Architecture: A Guide to Structure and Harmony

A grid in architecture is a network of intersecting lines that organizes space, sets proportions, and aligns structural and visual elements. It gives designers a consistent framework for positioning columns, walls, and rooms, helping a building stay coherent from the first sketch through to the finished structure.

Architectural grids quietly shape almost every building you walk through. They decide where columns land, how rooms line up, and why a facade feels balanced rather than accidental. Far from limiting creativity, a well chosen grid gives architects a reliable framework to work against, and often to push against. For a closer look at how this thinking shows up in technical drawings, see our guide to architectural drawing symbols.

What Is a Grid in Architecture?

A grid in architecture is a system of regularly spaced lines, usually arranged in two or three directions, that establishes a reference framework for a design. These lines may be visible in the finished building or hidden behind the surfaces, but they govern the placement of structure, openings, and spaces. The grid acts as a shared language between the architect, the engineer, and the builder.

The idea is old. Greek and Roman planners laid out cities on rectangular grids, and Renaissance architects used proportional grids to control the harmony of facades and floor plans. Landmarks such as the Parthenon and St. Peter’s Basilica rely on ordered geometry to feel balanced. Le Corbusier later formalized this instinct with his Modulor system, a measuring scale based on human proportions that you can read more about through his work on the Modulor.

What separates a grid from a simple sketch is consistency. Once the spacing is set, every later decision can be checked against it, so a window, a beam, and a partition all answer to the same rhythm. That repeatability is what lets large teams work on one building without the parts drifting out of alignment, and it is why the grid is usually one of the first marks an architect makes on a fresh plan.

Main Types of Architectural Grids

Architects rarely work with a single kind of grid. Most projects combine several, each handling a different job. The lines can be straight or curved, evenly spaced or rhythmic, but they tend to fall into a few recognizable families based on what they control.

Comparison of Common Grid Types

The table below summarizes the grid systems you are most likely to meet on a real project and where each one earns its place.

Beyond these, grids are also described by their geometry. Rectilinear grids use straight lines to form squares and rectangles, giving the clear, ordered layouts seen in most skyscrapers and the work of Le Corbusier at the Villa Savoye. Curvilinear grids use curved lines to shape flowing spaces, as Frank Gehry did at the Guggenheim Museum in Bilbao, where the geometry bends to create movement instead of rigid order.

Why Do Grids Matter in Design?

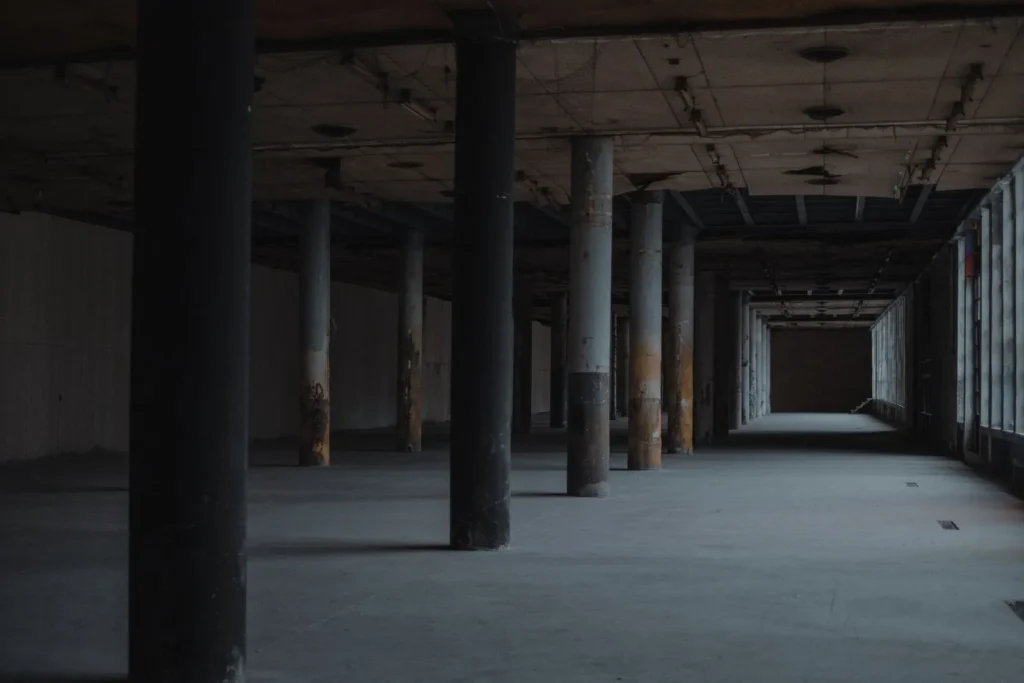

Grids matter because they solve two problems at once: they keep a building standing and they keep it looking deliberate. On the structural side, a clear grid spreads loads evenly and tells the engineer exactly where columns, beams, and walls belong. That coordination reduces the risk of structural failure and makes the construction sequence far easier to manage on site.

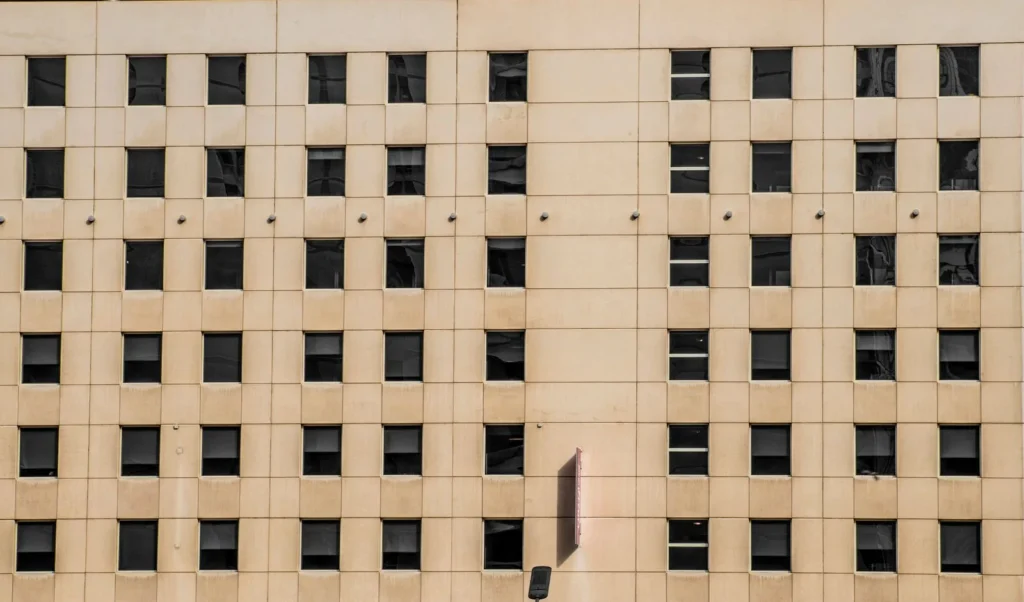

On the visual side, grids set the proportional relationships that make a design feel resolved. When windows, floors, and panels share a common rhythm, the eye reads the result as ordered rather than random. This is why grids support styles as different as strict minimalism and looser postmodern work, and why a strong layout often starts long before any decorative choices, much like planning good floor plans.

How Grids Shape Cities and Interiors

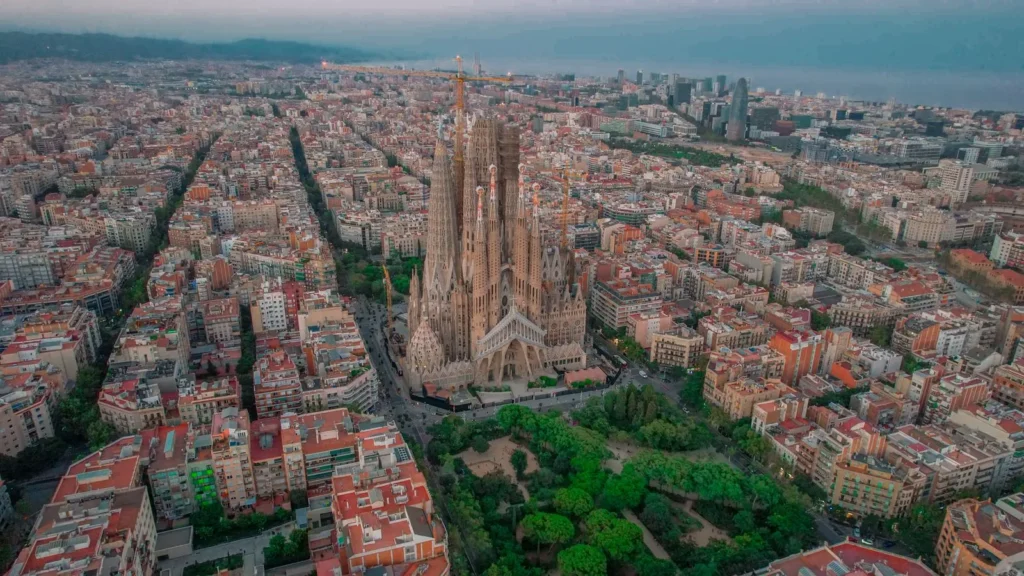

The same logic that orders a single building scales up to whole cities and down to single rooms. In urban planning, grids organize streets, blocks, and transport into a layout people can read at a glance. Manhattan is the obvious case, where a regular grid turns a dense island into something easy to move through. ArchDaily’s study of orthogonal grids in 17 cities shows how planners bend the basic pattern to fit hills, rivers, and older streets.

At the scale of a room, planning grids guide where furniture, partitions, and fixtures sit. An open-plan office laid out on a grid keeps circulation clear and makes future changes simpler, since new walls can follow lines that already exist. Grids also help align lighting and structure with how daylight enters a space, a relationship covered in our piece on daylight in architecture. For a deeper read on city-scale grids, the Harvard research behind ArchDaily’s review of Urban Grids is a strong starting point.

Common Challenges When Working With Grids

For all their value, grids are not a default setting you switch on and forget. Fitting one to an existing building means studying its proportions carefully so the grid clarifies the design instead of fighting it. Awkward sites bring their own trouble, since slopes, odd boundaries, and neighboring buildings rarely line up with a clean rectangle.

There is also a constant pull between looks and function. A grid that produces a beautiful facade may force inconvenient room sizes, while a purely practical layout can feel mechanical. Custom or irregular grids tend to raise labor and material costs, so budgets often decide how far an idea can go. Materials add another limit, since a grid built around standard panel or block sizes will be cheaper and faster than one that demands constant cutting. Future flexibility matters too, because a building that may change use later benefits from a grid that can absorb new walls without a full rebuild. The best results usually come from treating the grid as a starting discipline rather than a rule that can never bend, which is the spirit behind many contemporary house designs.

The Bigger Picture

Bottom Line: A grid in architecture is less a constraint than a tool for clear thinking. It coordinates structure, proportion, and space so a design holds together at every scale, from a single room to an entire city. Choose the grid that fits the problem, then let the architecture earn its freedom by knowing exactly where the rules begin.
