Understanding Architectural Bubble Diagrams: A Complete Guide

Architectural bubble diagrams are foundational space-planning tools that use circles and connecting lines to map functional relationships between rooms before any floor plan is drawn. In interior design and architecture, they help designers test dozens of spatial configurations quickly, ensuring that layouts are both practical and purposeful from the very first sketch.

In the realm of architecture and interior design, the journey from concept to blueprint is loaded with tools and methodologies aimed at refining the vision into a tangible plan. Among these, architectural bubble diagrams stand out as a fundamental yet often underappreciated technique. A bubble diagram in architecture is essentially a simple, intuitive visual that serves as the backbone of spatial planning, enabling designers to explore and communicate the relationships between different functional areas of a project.

At their core, bubble diagrams are a blend of lines and circles, each representing a specific space or function, such as sleeping, dining, or studying. By mapping out these elements in relation to one another, architects can ensure that the final layout is not just aesthetically pleasing but also practical and efficient. Whether you are working on a bubble diagram of a house or planning a large commercial complex, these diagrams translate abstract requirements into spatial logic.

Free Online Bubble Diagram Maker

Despite their significance, bubble diagrams rarely make it to the public eye, remaining a largely invisible yet crucial step in the architectural design process. Through understanding these diagrams, we look deeper into the art and science of creating spaces that resonate with their intended purpose and context.

What Is a Bubble Diagram in Architecture?

So, what is a bubble diagram exactly? In architecture and interior design, a bubble diagram is a conceptual drawing that uses circles (or “bubbles”) to represent spaces and lines to show how those spaces connect. It is one of the earliest planning tools used in the design process, long before any detailed floor plans are drawn. The architectural bubble diagram helps designers organize rooms, zones, and circulation paths based on function, hierarchy, and adjacency — making it indispensable for both space planning in architecture and interior design bubble diagrams.

The Basics of Bubble Diagrams in Architecture

Architectural bubble diagrams serve as foundational tools during the early stages of design planning. These diagrams consist of circles or “bubbles” of varying sizes connected by lines, each representing different spaces or functions within a project. Here are the core components that make up these diagrams:

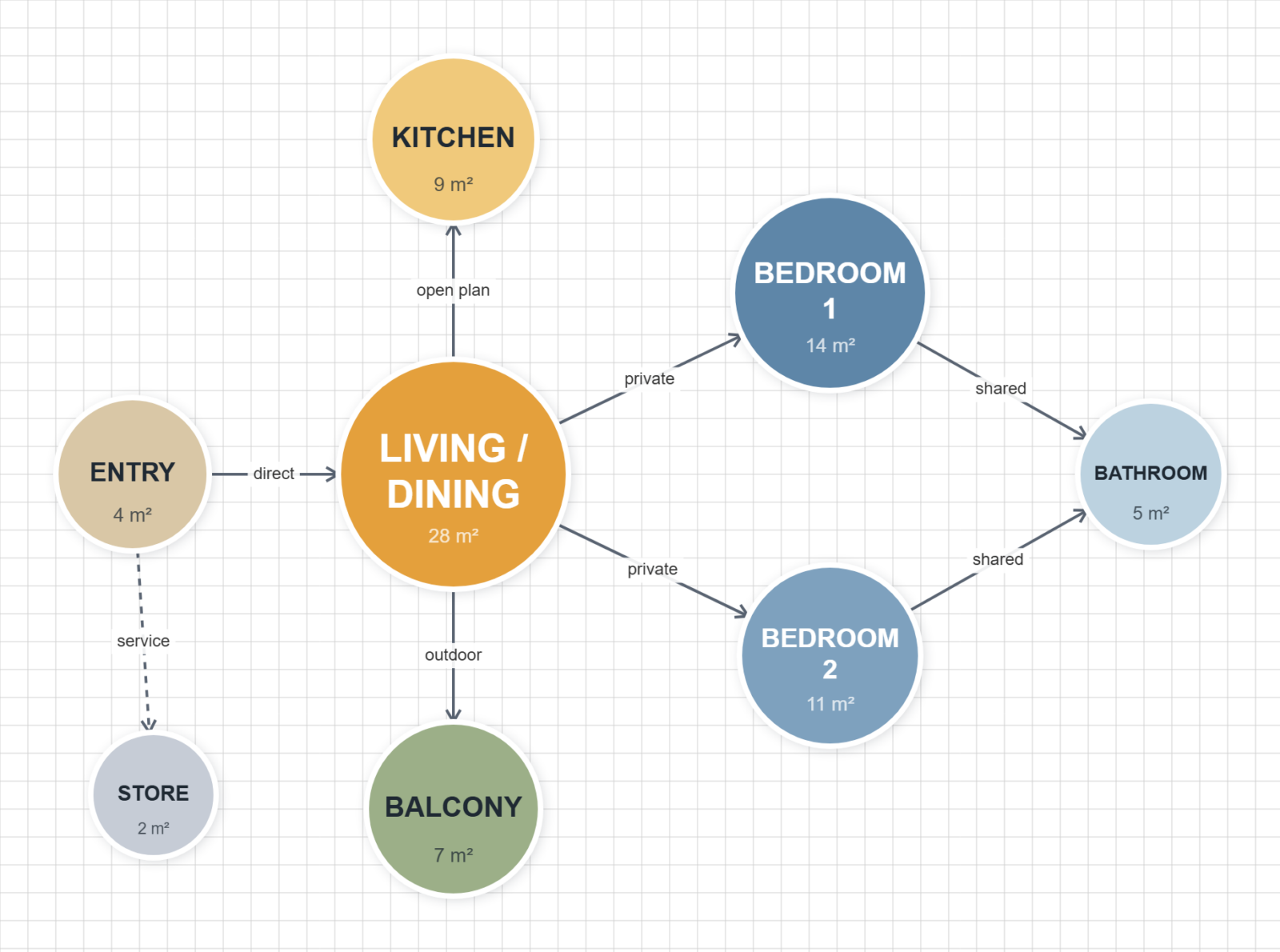

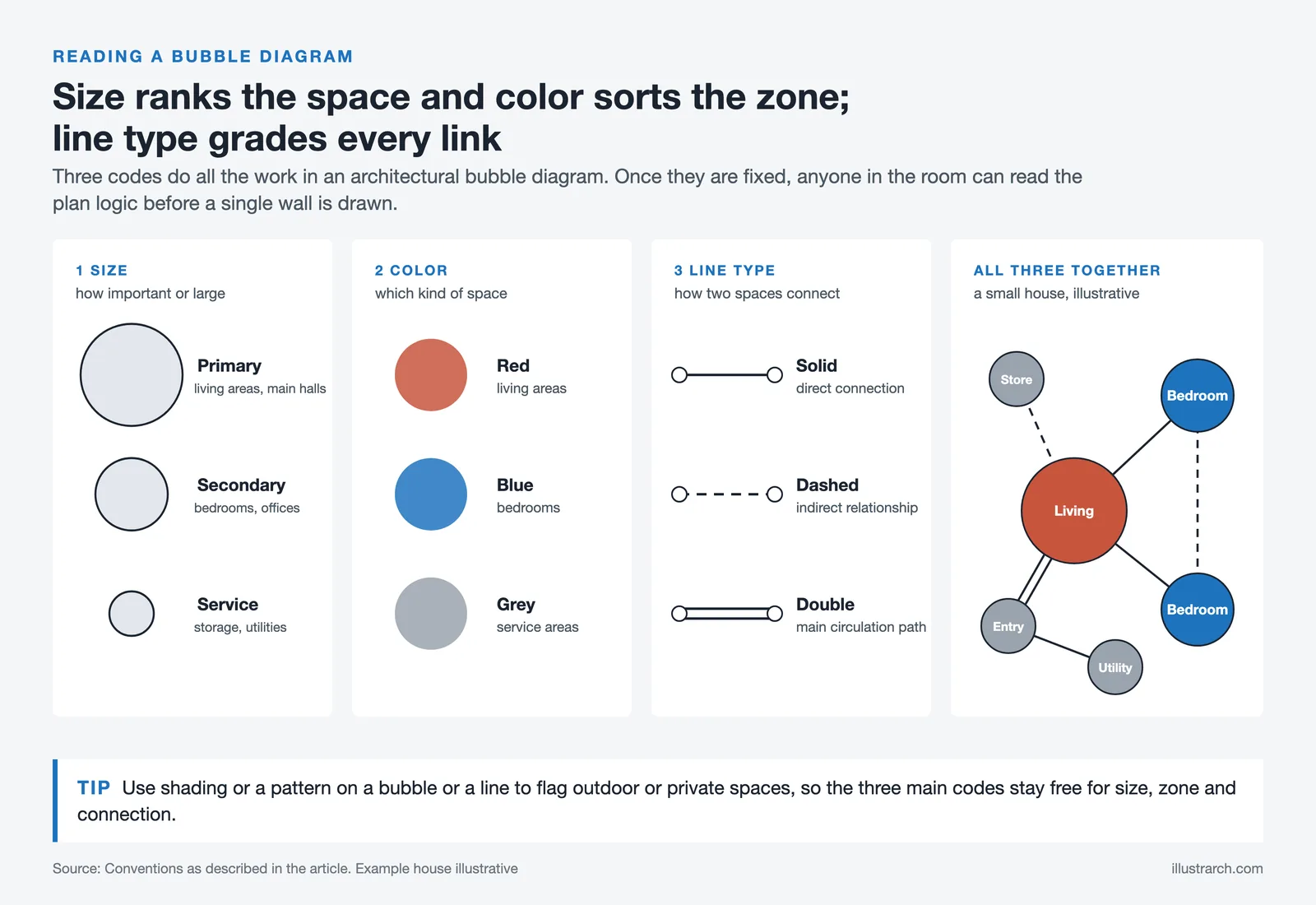

• Bubble Sizes denote the importance or scale of space. Larger bubbles usually signify primary spaces such as living areas or main halls, medium bubbles indicate secondary spaces like bedrooms or offices, and smaller bubbles are reserved for service areas, including storage rooms and utilities.
• Bubble Colors and Line Types are used to delineate different areas and connections. For instance, living areas might be marked in red, bedrooms in blue, and service areas in grey. Solid lines denote direct connections between spaces, dashed lines indicate indirect relationships, and double lines highlight main circulation paths.
• Labels and Symbols enhance clarity by naming each space and indicating important features such as furniture placements, light fixtures, and directional cues like north arrows. Shading or patterns may be applied to bubbles or connecting lines to signify outdoor spaces, private areas, or other special considerations.

Understanding these elements enables architects to convey spatial organization, functional zoning, and overall design intent effectively. Through this visual language, architectural bubble diagrams facilitate clear communication between designers, clients, and stakeholders.

Bubble Diagram vs. Block Diagram in Interior Design

While bubble diagrams and block diagrams in interior design are closely related, they serve different stages of the design process. A bubble diagram uses soft, abstract circles to explore spatial relationships and adjacency — it is intentionally loose and conceptual. A block diagram, on the other hand, replaces those circles with more defined rectangular shapes that begin to approximate actual room proportions and dimensions. Think of the bubble diagram as brainstorming and the block diagram as the next step toward a real bubble diagram floor plan. Many architects move from bubblediagram sketches to block diagrams before committing to detailed architectural drawings.

Why Are Bubble Diagrams Important in Design Planning?

Architectural bubble diagrams play a significant role in the design planning process. Their simplicity and flexibility allow architects and designers to explore spatial relationships and design concepts without getting bogged down by the details required in more advanced stages of design development. Here are several ways bubble diagrams impact design planning:

• Visualizing Relationships: By abstracting spaces into simple forms, bubble diagrams help designers visualize how different areas of a project relate to each other. This is crucial for ensuring functional and efficient layouts.
• Facilitating Collaboration: These diagrams serve as a common visual ground for discussion among architects, interior designers, clients, and other stakeholders. They make complex spatial ideas accessible to non-designers.
• Informing Later Stages: Although not used as construction documents, the organization and connections established in bubble diagrams inform more detailed drawings and models in later design phases. They ensure that the initial design intent is maintained throughout the development process.
• Enhancing Design Flexibility: The ease of modifying bubble diagrams allows for rapid exploration of multiple layout options. Designers can quickly iterate on concepts to find the best solution for the given constraints and objectives.

Architectural bubble diagrams are essential tools that bridge imagination and concrete planning in architecture. They simplify the complexity in spatial design, making it easier to craft spaces that meet both functional needs and aesthetic desires. Through understanding and applying bubble diagrams effectively, we lay the groundwork for creating coherent, well-thought-out projects that resonate with their intended use and context.

How to Create an Architectural Bubble Diagram

In our continued exploration of architectural bubble diagrams, we look at the practical aspects of creating these essential tools. Understanding how to craft a bubble diagram architecture sketch efficiently can significantly enhance the planning phase of any architectural or interior design project. Below, we outline the core components to include, provide a step-by-step guide on drawing them manually, and offer tips to ensure their effectiveness.

Key Elements to Include in Your Diagram

Our bubble diagrams must include a variety of elements to fully convey spatial relationships and project requirements. These elements comprise:

• Spaces and Functions: Circles or “bubbles” represent each space within the project, varying in size according to the space’s relative importance or size.
• Relationship Lines: Lines or arrows illustrate the connection between spaces, indicating flow or access, with line thickness or style reflecting the strength of the relationship.
• Labels and Annotations: Including names and functions within or adjacent to bubbles provides clarity on what each bubble represents.
• Color Coding: Applying different colors can denote diverse types of spaces, such as private vs. public areas, or differentiate various functional groups.

Step-by-Step Guide to Drawing a Bubble Diagram Manually

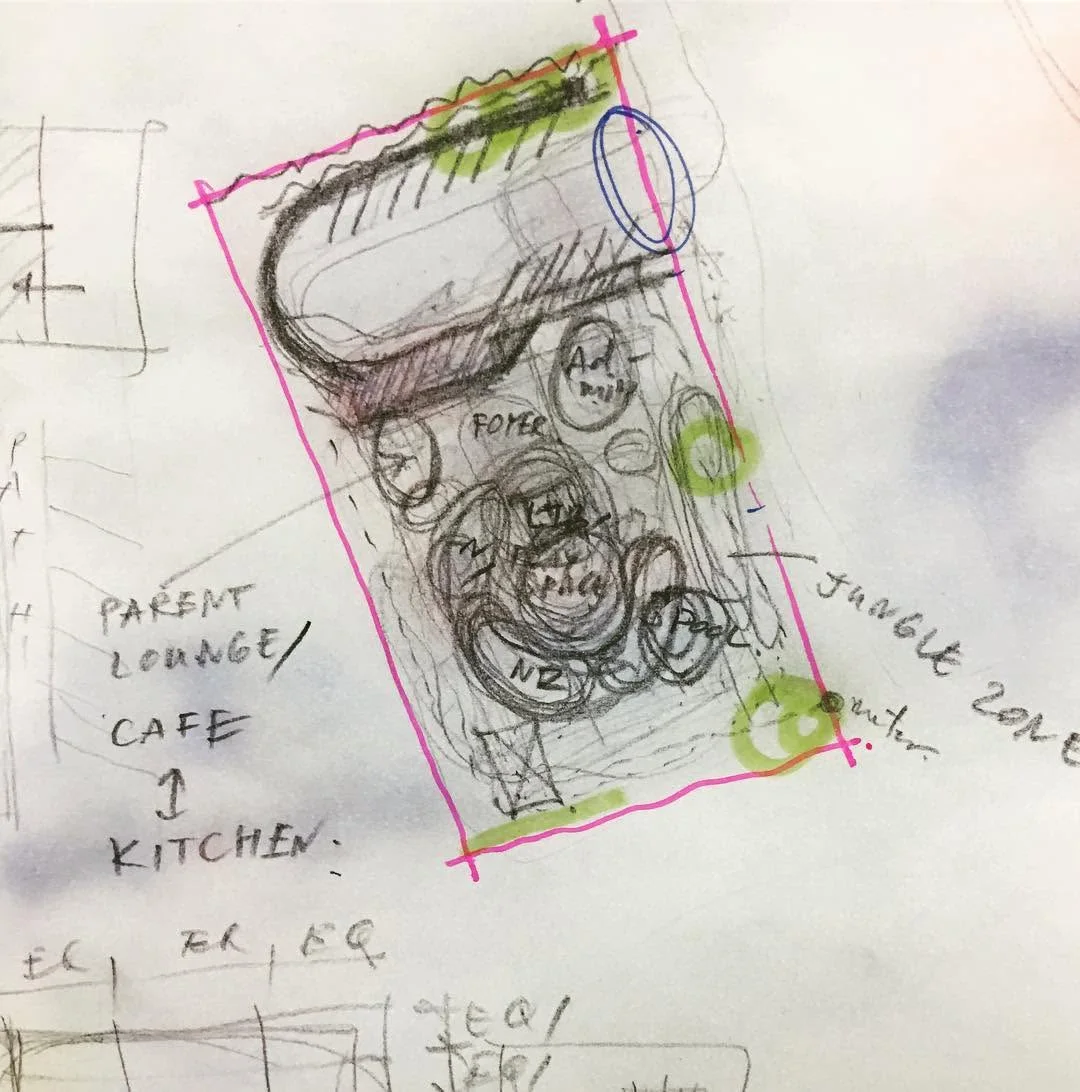

Drawing a bubble diagram by hand allows for maximum flexibility and creativity during the initial stages of design. Here’s how to approach the manual creation process:

1. List Space Requirements: Begin by listing all spaces and their functions to ensure no area is overlooked.
2. Prioritize Spaces: Determine the relative importance and size needs of each space to guide bubble sizing.
3. Sketch Initial Bubbles: Using a pencil, lightly sketch circles to represent each space, adjusting sizes as needed to reflect priorities.
4. Connect Spaces: Draw lines or arrows between bubbles to show the desired flows and relationships based on the project’s specific needs.
5. Adjust for Clarity: Review and adjust the sketch, ensuring the diagram is clear and accurately represents the intended spatial relationships.
6. Finalize with Labels and Color: Add labels and apply color coding to enhance readability and further categorize spaces.

Tips for Effective Bubble Diagrams

To maximize the impact and clarity of bubble diagrams, we follow several proven tips:

• Focus on Function Over Form: Remember, bubble diagrams are conceptual. Don’t get caught up in precise dimensions; instead, concentrate on relationships and flows.
• Keep It Flexible: The value of a bubble diagram lies in its adaptability. Use erasable markers or pencils for easy adjustments.
• Iterate as Needed: Don’t hesitate to revisit and revise your diagram as the project evolves. Early ideas can change as constraints and opportunities emerge.
• Collaborate with Stakeholders: Share and discuss your bubble diagram with project stakeholders, gathering input to refine the plan and ensure alignment with the project vision.

By incorporating these elements, steps, and tips into our design process, we create architectural bubble diagrams that fully serve their purpose: clarifying complex relationships in a visual format, aiding in decision-making, and facilitating communication among all project participants. For more on the broader diagramming process, see our guide to creating architecture diagrams.

Bubble Diagram Floor Plan: From Bubbles to Built Space

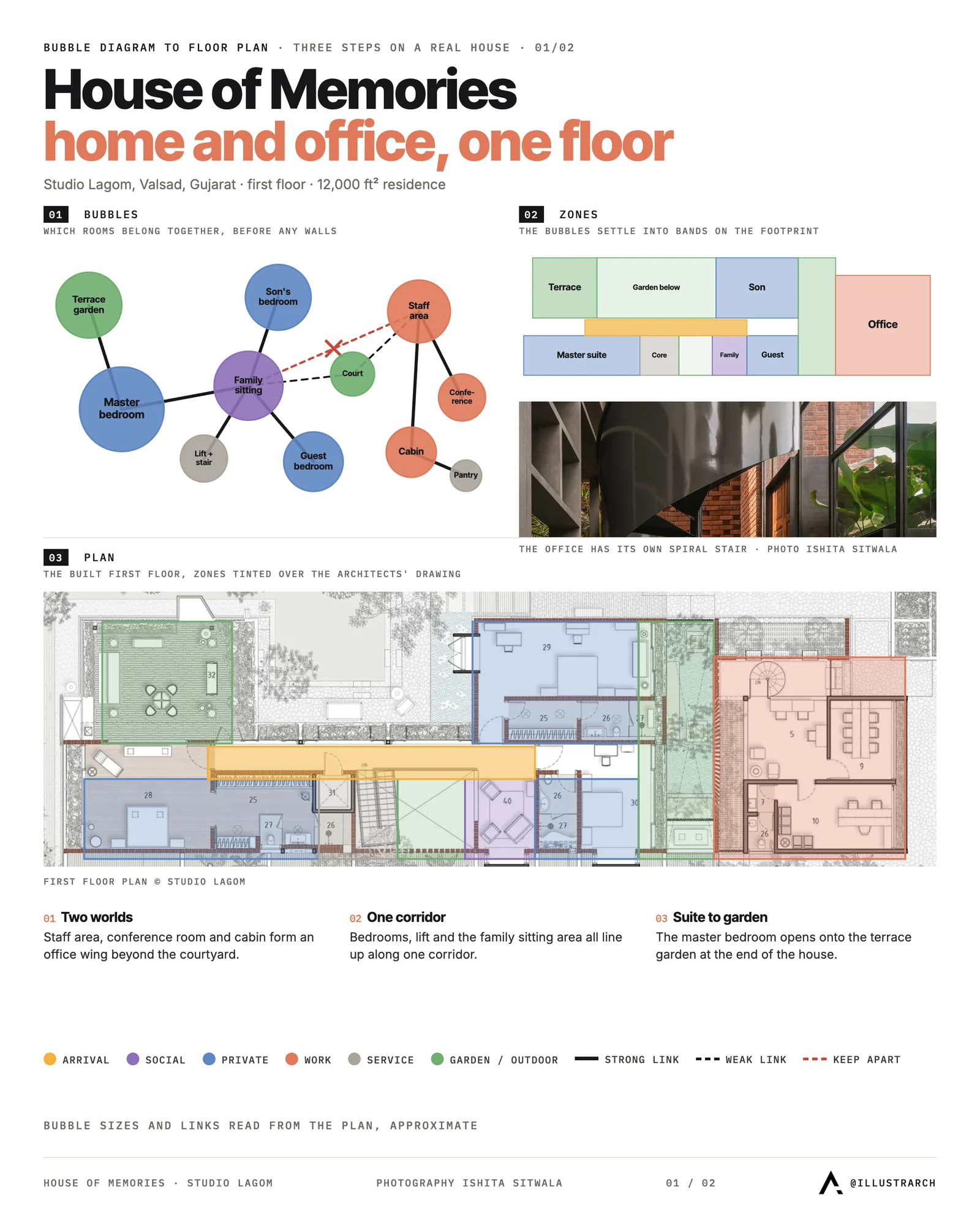

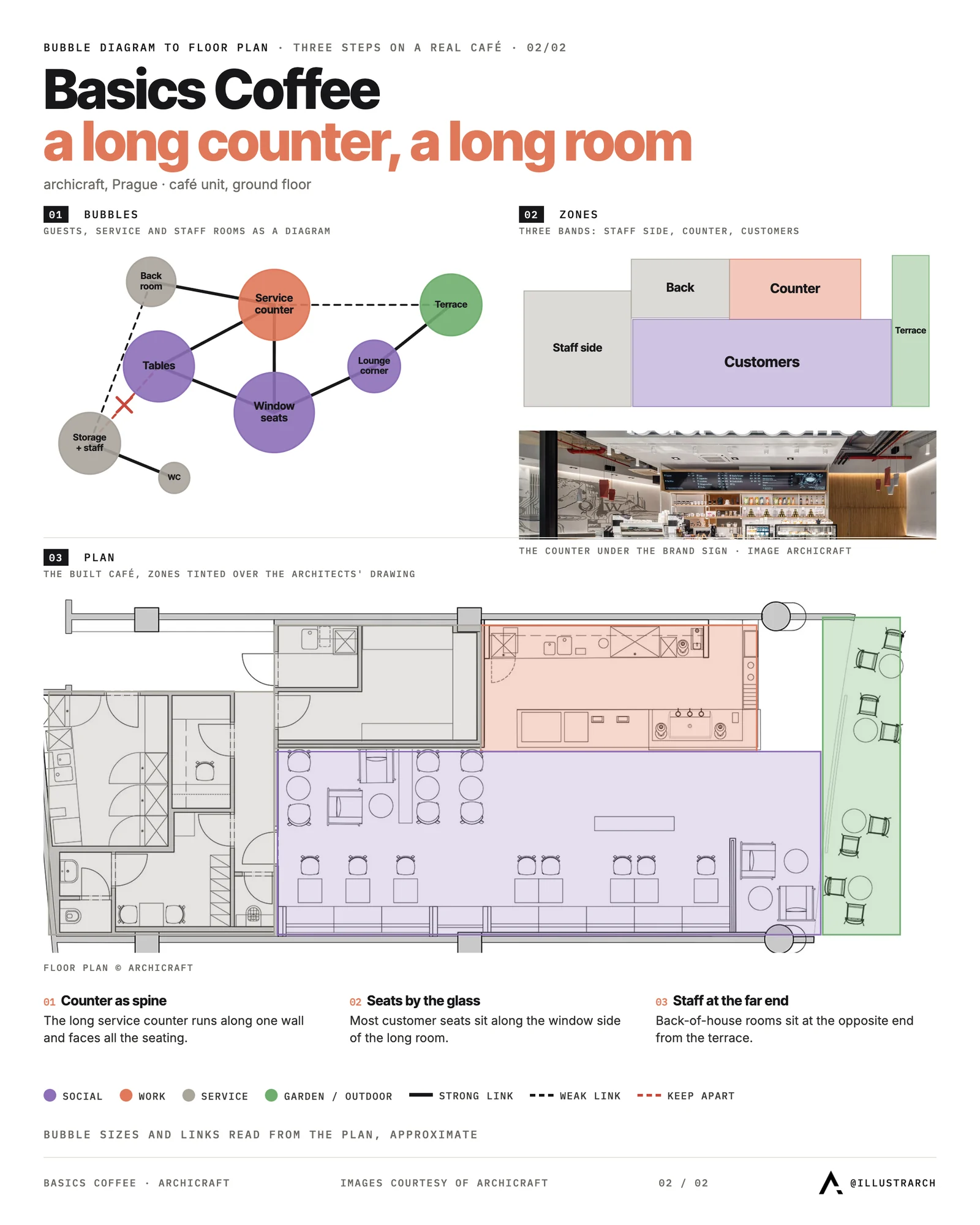

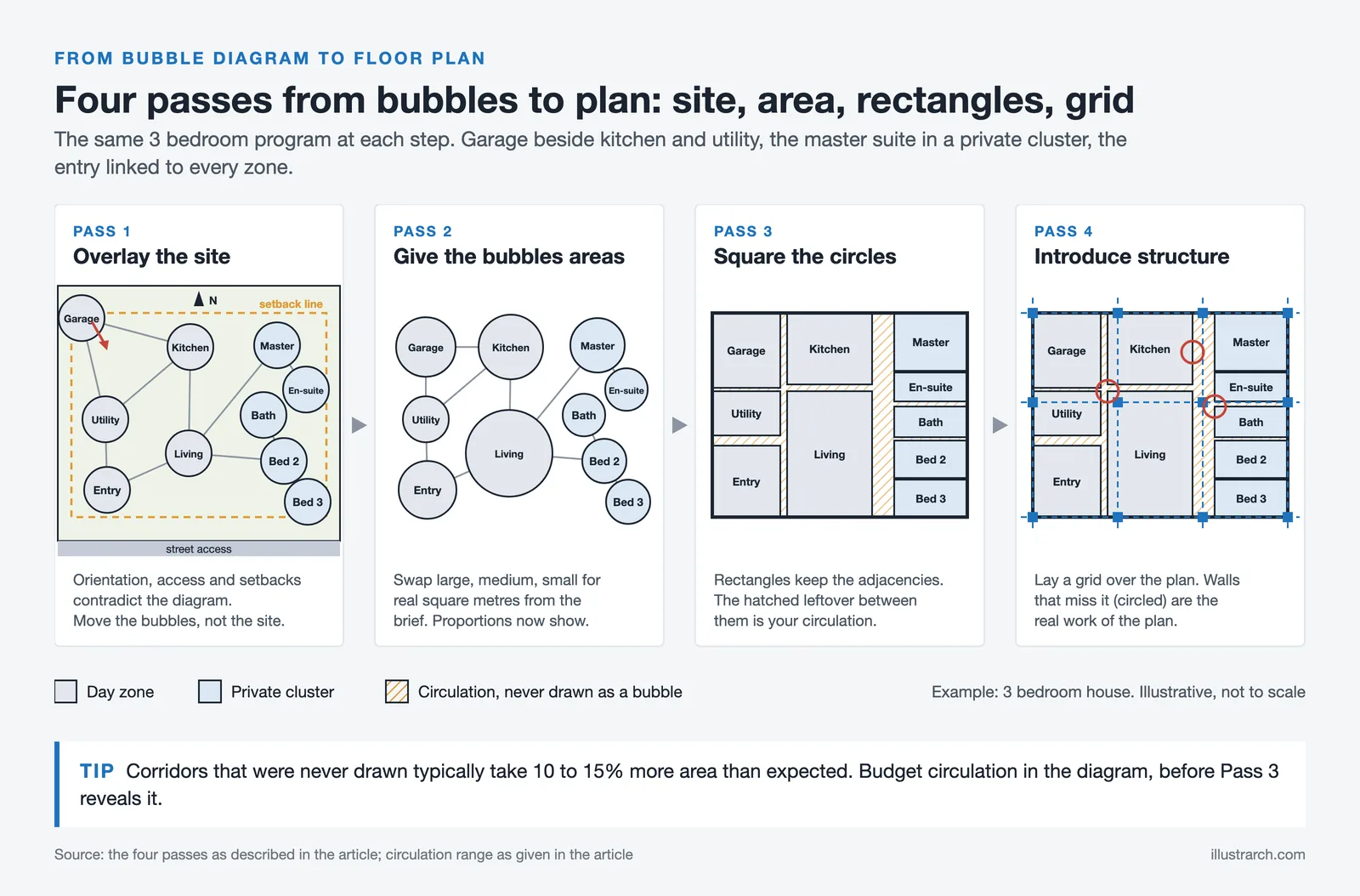

One of the most practical applications of a bubble diagram is translating it into a floor plan bubble diagram. After establishing spatial relationships with your initial architecture bubble diagram, the next step involves overlaying those abstract circles onto an actual site plan or building footprint. Each bubble is gradually reshaped into a rectangular room that respects structural grids, wall thicknesses, and building codes. This transition — from bubble diagram to schematic floor plan — is where design intent meets real-world constraints. For residential projects, a bubble diagram of house layouts typically positions private zones (bedrooms, bathrooms) away from public zones (living room, kitchen), connected by circulation corridors represented by linking lines in the original diagram.

Double Bubble Diagram for Comparative Analysis

A double bubble diagram is a variation that compares two related concepts side by side — for example, the spatial program of an existing building versus a proposed renovation. In this format, two central bubbles each branch outward, with shared characteristics placed in overlapping middle bubbles. While double bubble diagrams are more commonly associated with educational brainstorming, architects increasingly use them during design analysis to compare functional requirements across project phases or to evaluate competing design schemes against the same brief.

How Does a Bubble Diagram Relate to Other Diagram Types?

Understanding how architectural bubble diagrams sit within the full range of architectural diagram types helps clarify when and how to use each tool. A bubble diagram is the most abstract and earliest — it shows spatial adjacency without any dimensional commitment. A parti diagram captures the single organizing idea behind a design, while a concept diagram expresses the driving design intent in visual form. The ideal sequence is: bubble diagram (who goes next to whom) → parti diagram (what is the core concept) → schematic floor plan (how does it actually fit). According to the American Institute of Architects (AIA), visual communication through diagrams is one of the core competencies expected in professional architectural practice.

Using Bubble Diagrams in Architectural Projects

Enhancing Concept Development

Bubble diagrams play a key role in the early stages of architectural design, significantly enhancing concept development. These diagrams allow us to visually organize spaces according to their function and importance, making it easier to explore various spatial arrangements without committing to detailed drawings. By representing spaces as bubbles of varying sizes, we can quickly assess relationships between primary, secondary, and service areas, ensuring that the most critical spaces receive the prominence they need. Adjusting the proximity of these bubbles also helps consider the flow of movement, privacy requirements, and accessibility, thereby refining our conceptual vision before detailed plans are drawn. This flexibility allows iterative design exploration, enabling us to efficiently address and integrate complex design requirements and client needs into our initial concepts.

Improving Communication Amongst Stakeholders

In architectural projects, clear and effective communication amongst stakeholders is crucial. Bubble diagrams serve as an invaluable tool in achieving this, providing a simplified visualization of space planning that can be easily understood by clients, team members, and other stakeholders, regardless of their architectural expertise. These diagrams show how various spaces relate to one another through straightforward symbols and color codings, such as solid, dashed, and double lines to denote different types of connections and movements between spaces. Such visual aids help stakeholders quickly grasp the design intent and spatial relationships, leading to more productive discussions and feedback sessions. By incorporating labels, furniture symbols, and patterns, we ensure that everyone involved can visualize the proposed layout and function of each space, promoting consensus and aligning expectations early in the design process.

Streamlining Design Workflows

One of the most significant benefits of using bubble diagrams in architectural projects is their ability to streamline design workflows. By abstracting the complexity of architectural spaces into simple shapes and lines, we can rapidly iterate on design options, enabling faster decision-making. This high-level planning tool allows architects and designers to map out the spatial hierarchy and relationships before working on detailed architectural drawings, saving time and resources. The use of bubble diagrams also allows a smoother transition from concept to development phases, as they provide a clear roadmap for further detailing and specification. Moreover, integrating bubble diagrams into our design process encourages a more organized and systematic approach, ensuring that all project aspects are considered and harmoniously integrated from the outset.

Bubble Diagrams for Interior Design Projects

Interior design bubble diagrams follow the same principles as their architectural counterparts but tend to focus more closely on furniture groupings, traffic flow within individual rooms, and the sensory experience of a space. When creating a bubble diagram in interior design, designers often work at a smaller scale, mapping zones within a single room — such as a seating area, a reading nook, and a media wall within a living room. Color coding in bubble diagrams interior design projects frequently reflects material palettes or lighting zones rather than purely functional categories. Interior designers also use these diagrams to communicate spatial priorities with clients who may find traditional plan drawings difficult to interpret. For an overview of the diagram types interior designers rely on, see our article on diagram types for interior designers. For in-depth educational resources, the Chicago Architecture Center is also an excellent reference.

The Diversity of Bubble Diagrams in Architecture

In the realm of architectural design, bubble diagrams serve as a fundamental tool, embodying the versatility of spatial planning. Their application goes beyond preliminary sketches, evolving into a strategic instrument that architects use to visualize and communicate complex spatial relationships. As we look deeper into the diversity of these diagrams, it becomes evident how their variations and creative applications, along with practical case studies, confirm their indispensable role in architecture.

Variations and Creative Applications

Bubble diagrams are not a one-size-fits-all solution; rather, they adapt to the unique demands of each project. From simple, hand-drawn sketches to sophisticated, software-generated models, these diagrams appear in numerous forms, each tailored to specific phases of the design process. The creativity in their application lies in the ability to abstract spaces into simple bubbles or circles, representing areas like rooms, zones, or outdoor spaces. These shapes vary in size and hierarchy, directly corresponding to their relative importance or scale within a project.

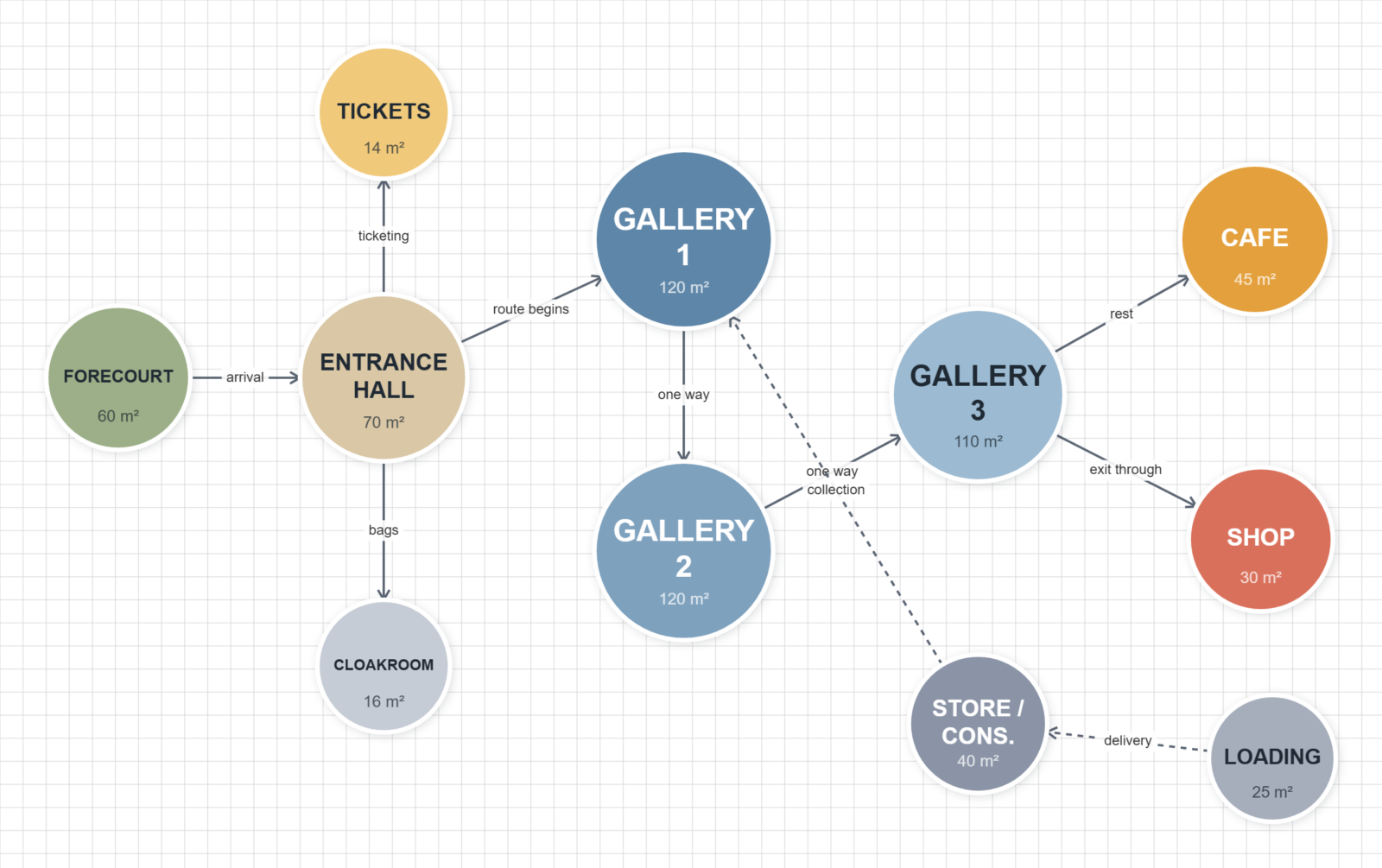

A powerful aspect of bubble diagrams architecture is their adaptability for different architectural projects, from residential layouts emphasizing privacy and flow between living spaces, to expansive commercial projects where accessibility and customer experience are central. Architects use these diagrams to explore spatial composition and relationships without committing to detailed architectural plans prematurely. This flexibility allows iterative exploration, generating solutions that align with the client’s vision and the project’s requirements. For a broader look at how different diagram types fit into the design sequence, our guide to diagram types in architecture provides useful context.

Digital Tools for Bubble Diagram Architecture

While hand-drawn bubble diagrams remain popular during brainstorming sessions, digital tools have expanded what designers can achieve. Software such as Figma, Miro, and Adobe Illustrator allow architects to create, share, and iterate on bubble diagram architecture sketches collaboratively in real time. For those looking for a quick, browser-based solution, our free online bubble diagram maker lets you draw project bubble map flowchart layouts without installing any software. Some architects also integrate bubble architecture concepts into BIM workflows by using early-stage plugins in Autodesk Revit or SketchUp that convert programmatic bubble layouts into 3D massing models. For a full comparison of available options, our guide to the best diagram tools for architects covers 8 platforms tested for professional use.

Bubble Diagram Architecture: FAQs

What is the difference between a bubble diagram and a floor plan?

A bubble diagram is an abstract, conceptual drawing created early in the design process. It uses circles to represent spaces and lines to indicate relationships — without any fixed dimensions or wall thicknesses. A floor plan, by contrast, is a scaled technical drawing that shows exact room sizes, door and window positions, and construction details. The bubble diagram informs the floor plan; it is the spatial logic that the floor plan later executes with precision.

Can bubble diagrams be used for commercial projects?

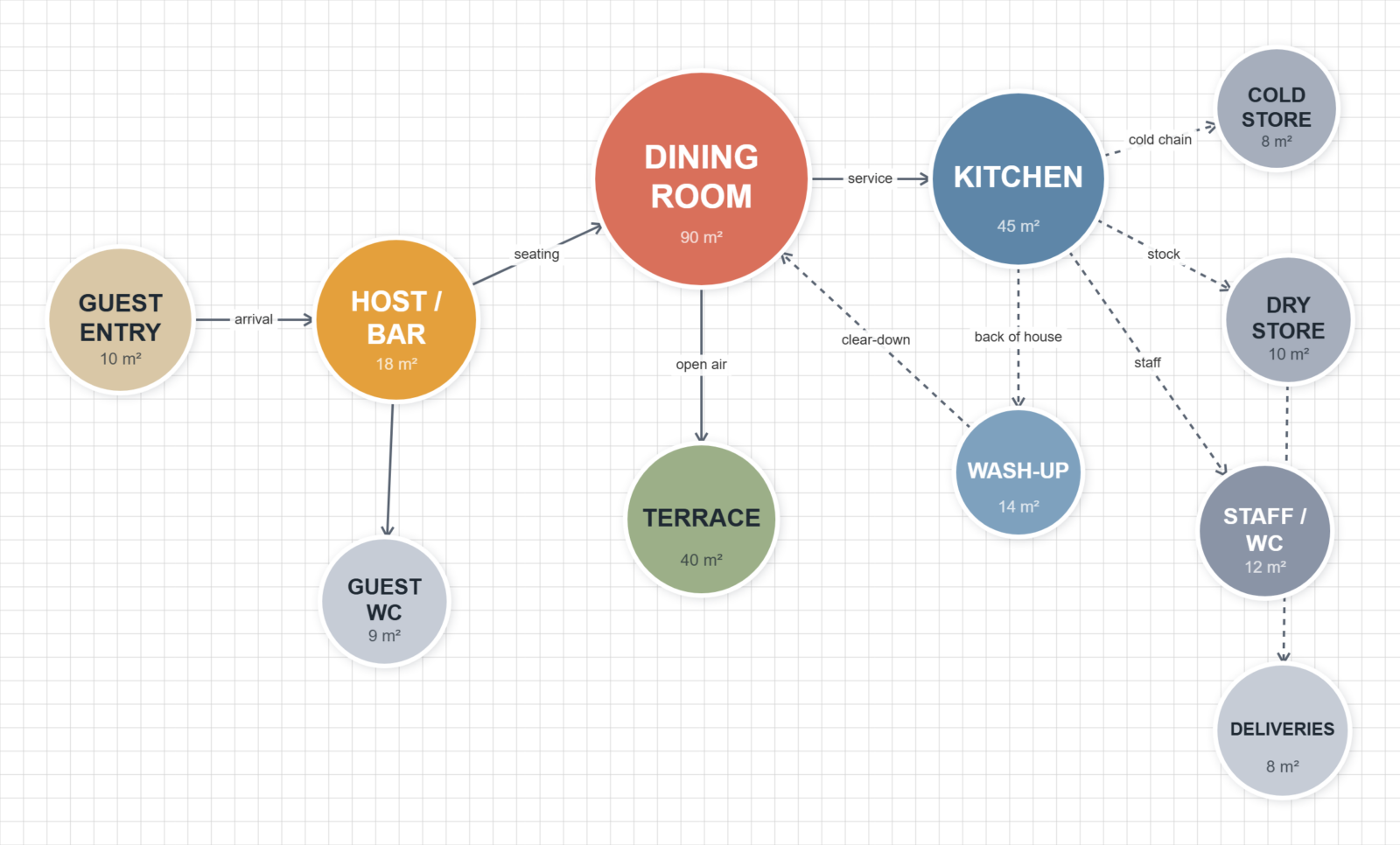

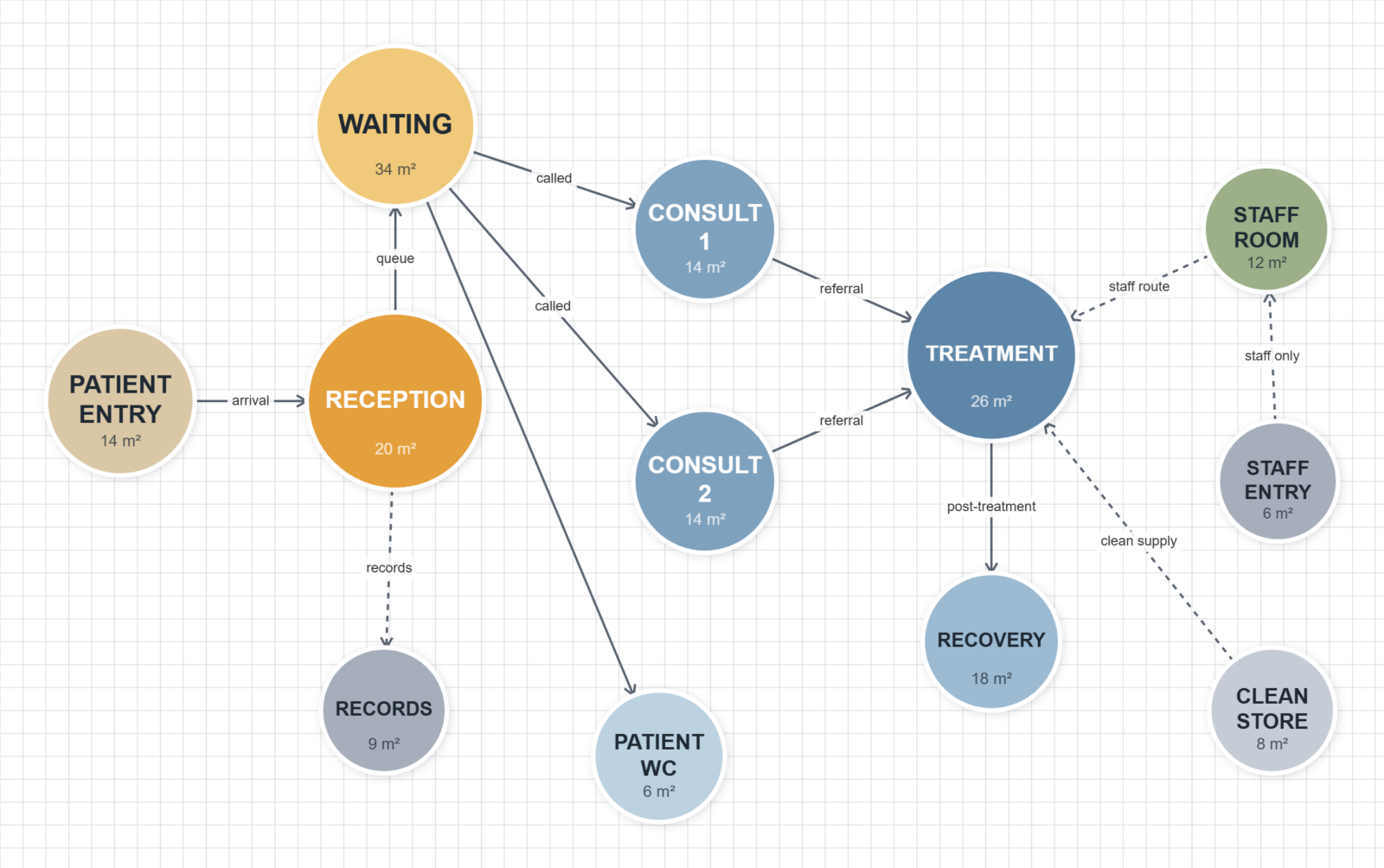

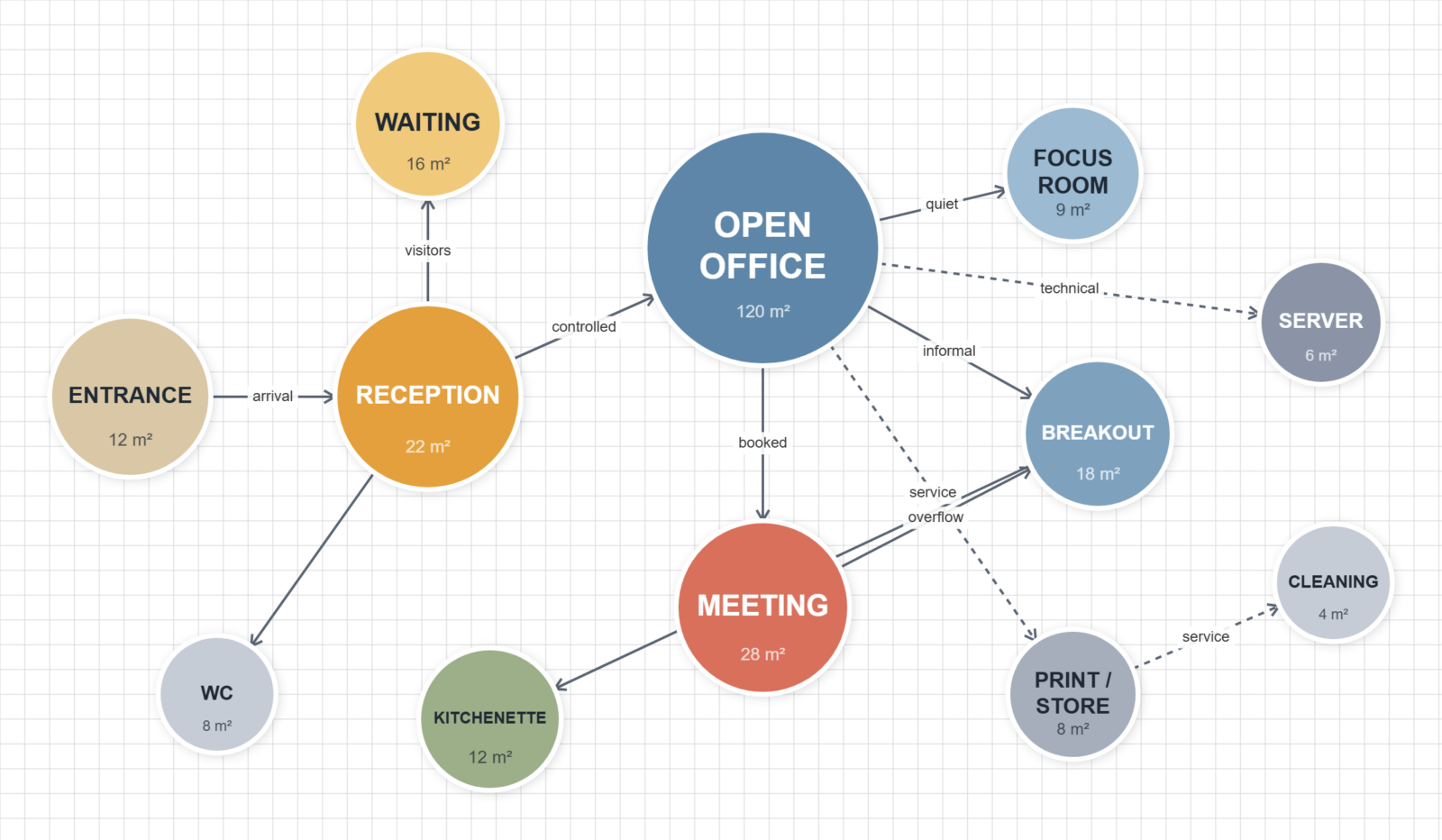

Yes. While bubble diagrams are often discussed in the context of residential design, they are equally valuable for commercial, hospitality, healthcare, and educational buildings. In a hospital project, for example, a bubble diagram might group emergency areas, surgical suites, and patient wards to map critical adjacency requirements before any floor plan work begins. The larger the building program, the more essential the bubble diagram phase becomes for managing spatial complexity across multiple departments. For a deeper look at how architectural programmes and functions diagrams operate in complex projects, that guide provides a thorough breakdown.

Conclusion

Architectural bubble diagrams are far more than casual doodles — they are the conceptual scaffolding upon which successful buildings and interiors are planned. From the earliest bubble diagram of a house sketch to a polished interior design bubble diagram presented to clients, these tools bridge the gap between abstract ideas and buildable realities. By mastering bubble diagram architecture principles, designers of every level can produce more thoughtful, efficient, and client-aligned spatial layouts. To go further, explore the full guide to architectural diagrams for students or review the 10 best architectural diagram examples by architects. Ready to try it yourself? Use our free bubble diagram maker and start mapping your next project today.
