The House in Between

The bungalow in Ayodhya integrates contemporary design with locally sourced materials, emphasizing sustainability and a harmonious connection with its natural surroundings.

Share
Share

The client who is a part of the Indian film fraternity wanted to create a home away from home. The client the bungalow to serve the purpose of a get away he would eventually move into permanently. The client wanted to use the concepts of contemporary interiors, combining locally available materials and a locally infused

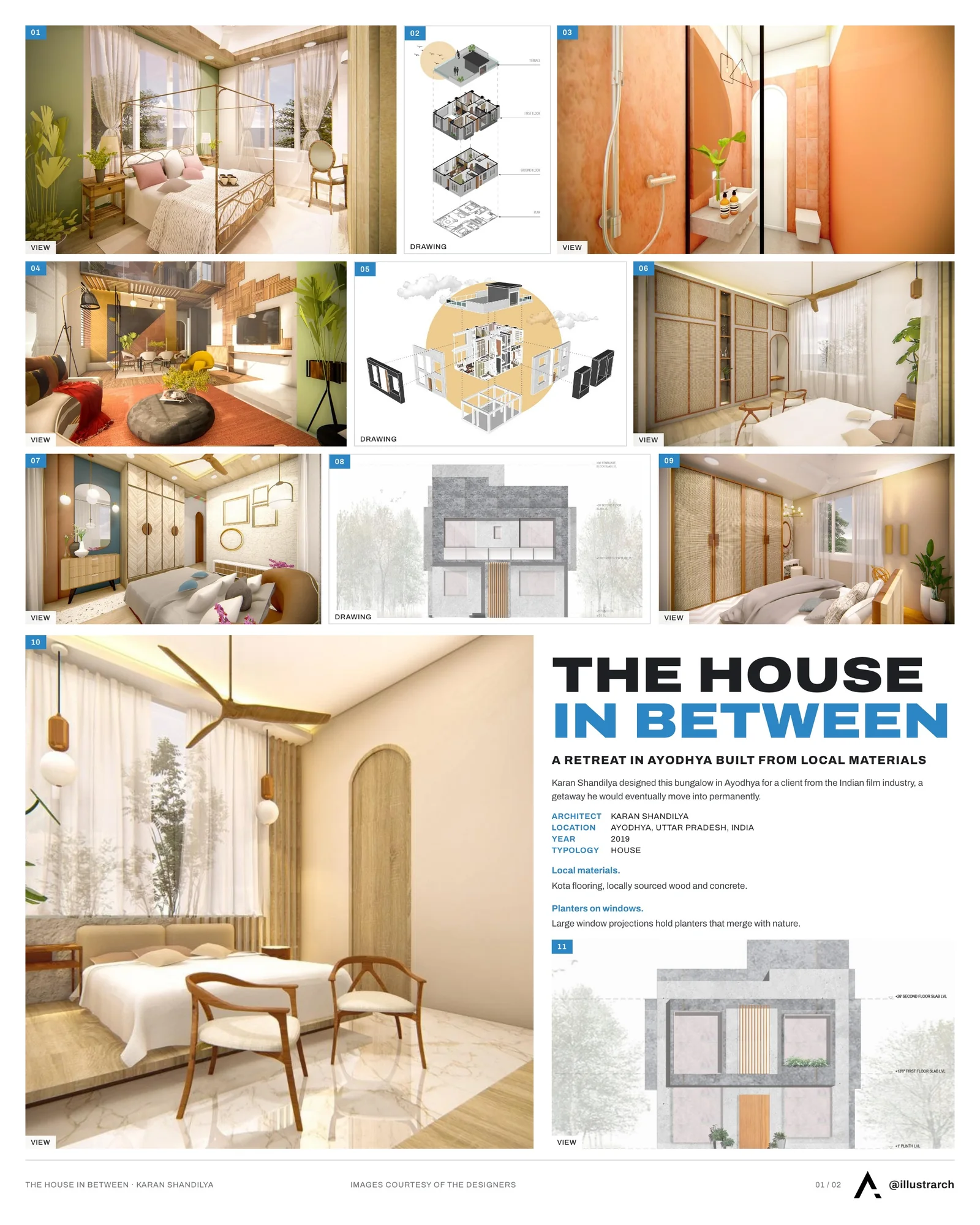

Presentation board cover for The House in Between, with the lead image, project summary and a grid of photographs and drawings
Presentation board: illustrarch. Project: The House in Between; Images: courtesy of the designers

design to create a language that would reflect the surroundings the bungalow is located in.

The House in Between

The architects use kota flooring combined with locally sourced wood and concrete to create a contemporary and yet relatable space for the client. The doors in the bungalow are arched and the windows have large rectangular projections to incorporate planters. Due to the fact that the bungalow has existing properties on either side the project was constructed to ensure and front facing detail, with a double-heighted living room to enrich the space.

The House in Between 2 The House in Between 3

As the bungalow is located in Ayodhya, Uttar Pradesh, we decided to ensure the design was not jarring for the peaceful locality it was situated in. We incorporated a multitude of warm colours to ensure the space had a minimalist form. Planters were placed on all the windows ensuring the structure merges with the surrounding nature. The interiors contain earth hues and wooden details to enrich the space it was built in.

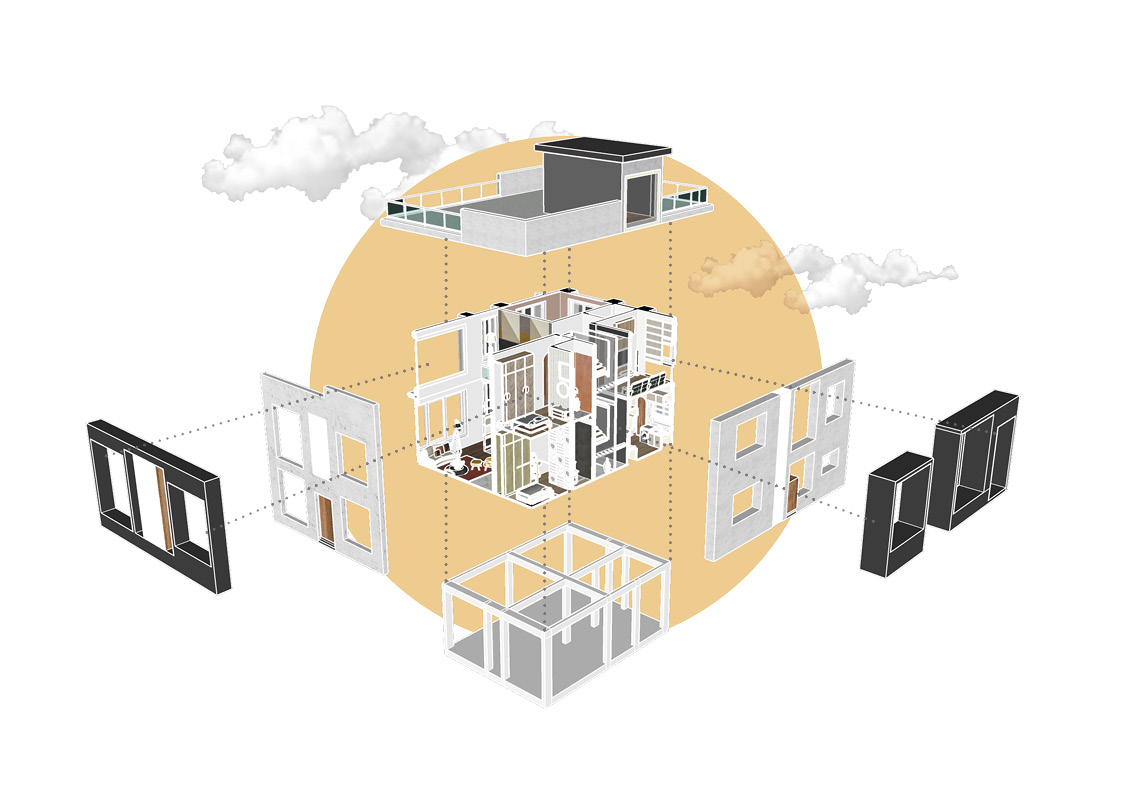

side explosion The House in Between 4

Even though the space is a retreat, we ensured maximum efficiency as the client desired to eventually move into the bungalow permanently. We ensured maximum movement and flexibility of services, along with a practical and utilitarian interior space. To prevent overly sparse detailing multiple claddings were used to ensure
the post modern, contemporary detail the client aspired to reside in.

The House in Between 5 The House in Between 6 The House in Between 7

As a studio that focuses on green practise we ensured the use of locally available wood and concrete. The brick that was used in the interiors of the space was sourced from kilns that were not located on farmlands. Provision for solar panels on the terrace as well as rain water harvesting tanks and sump pits were createdon site.

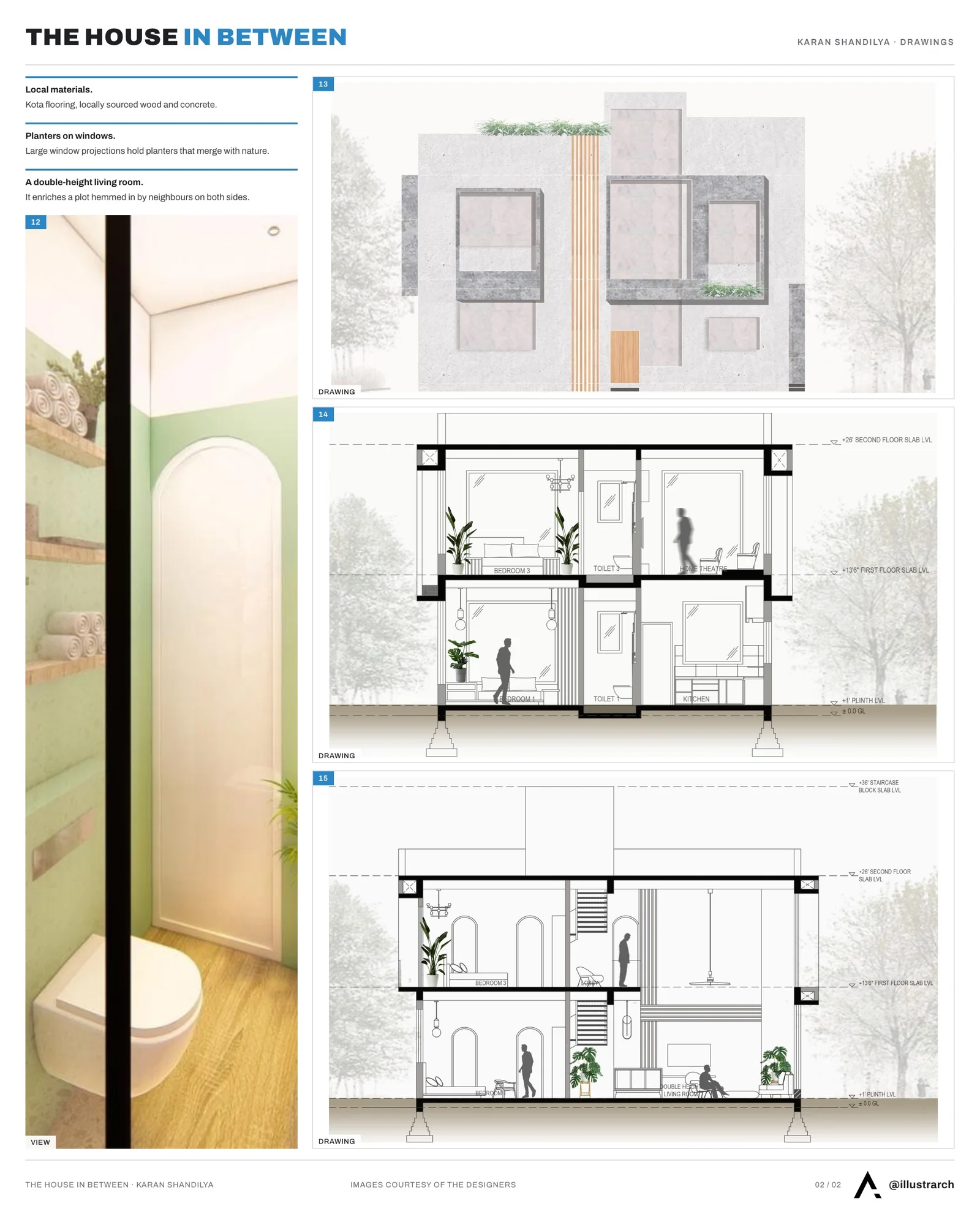

Second presentation board sheet for The House in Between, laying out the project drawings and images on one page
Presentation board: illustrarch. Project: The House in Between; Images: courtesy of the designers

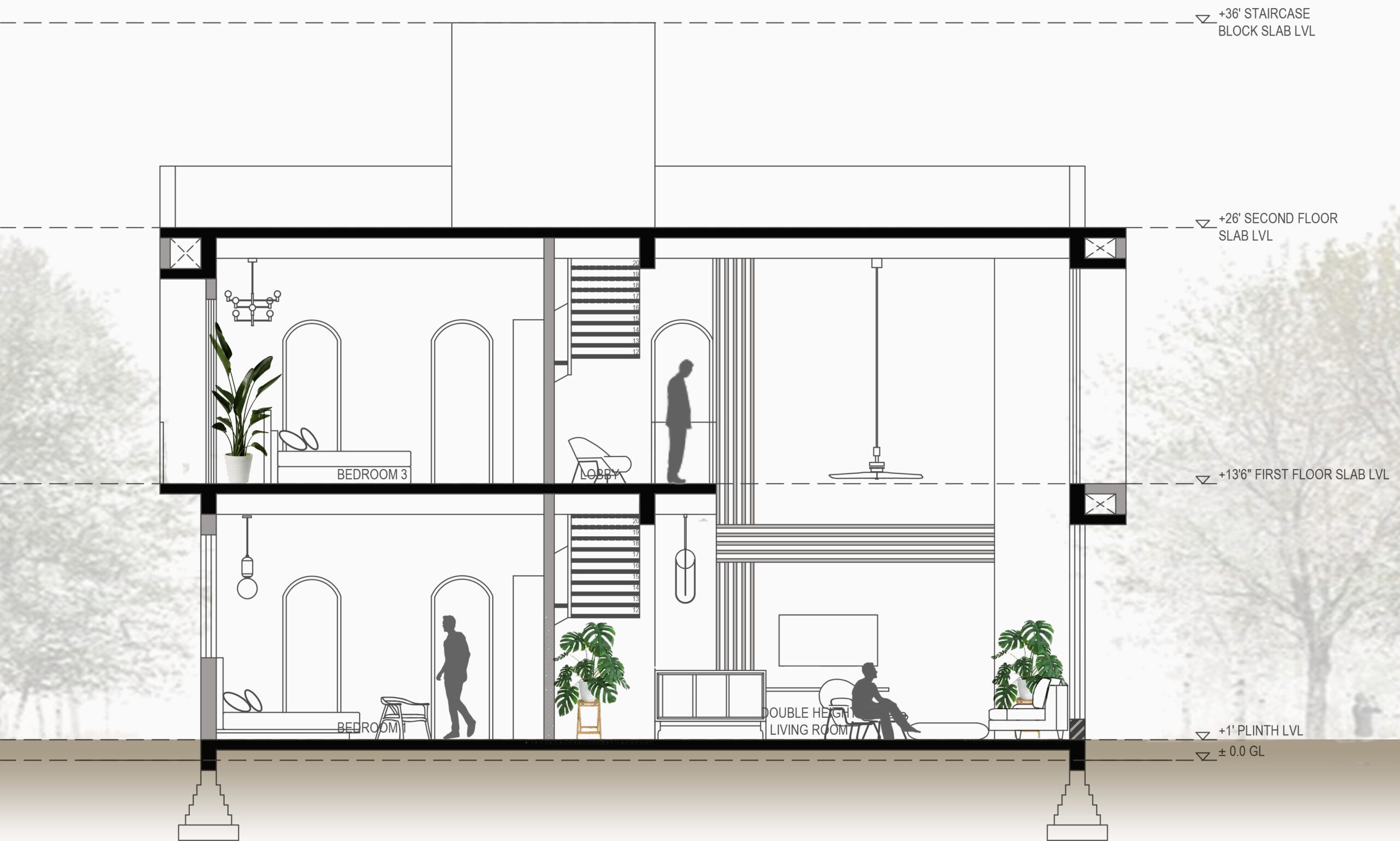

Windows and double heighted spaces were created to ensure funnel ventilation ensuring minimal use of air conditioners reducing the overall carbon footprint.

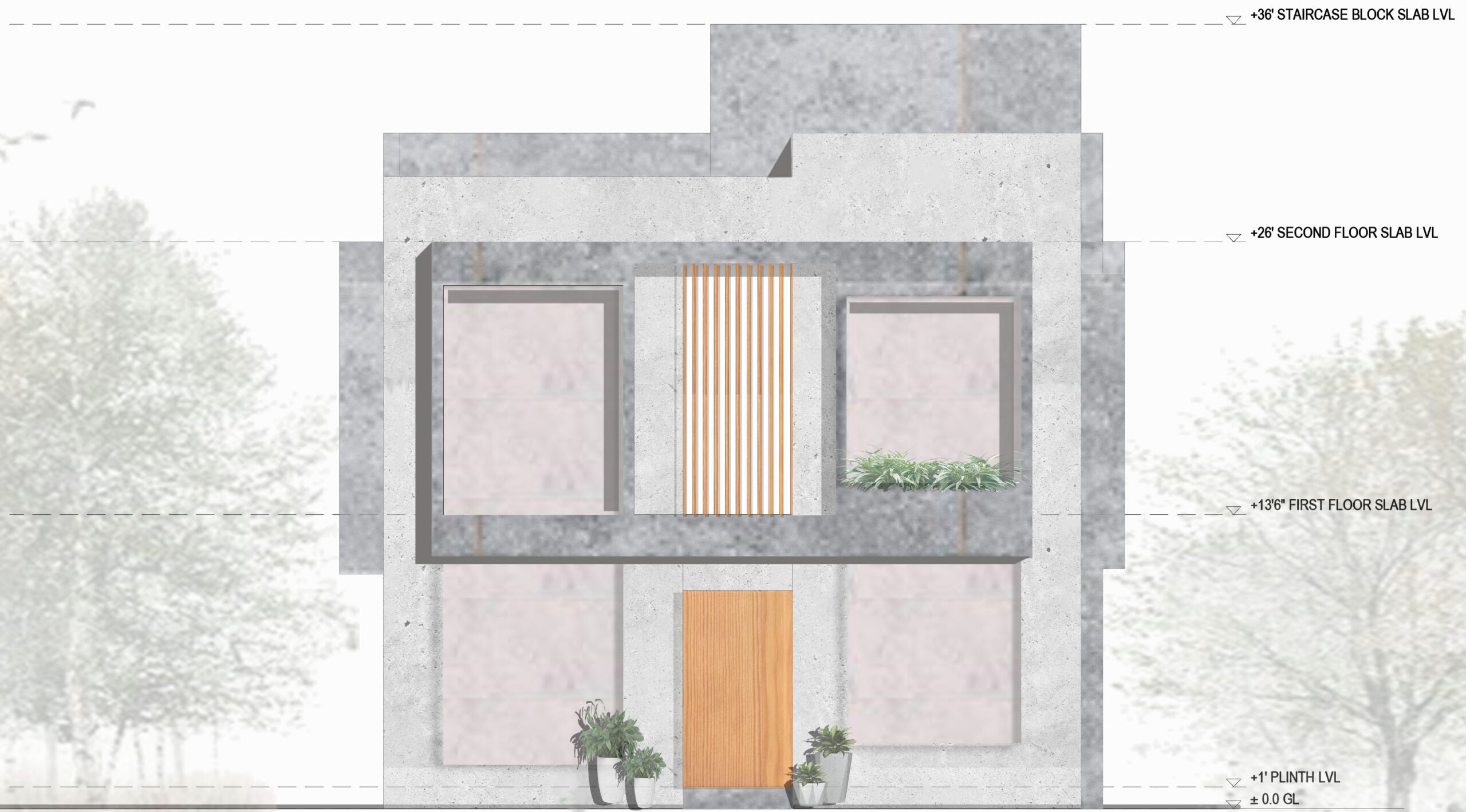

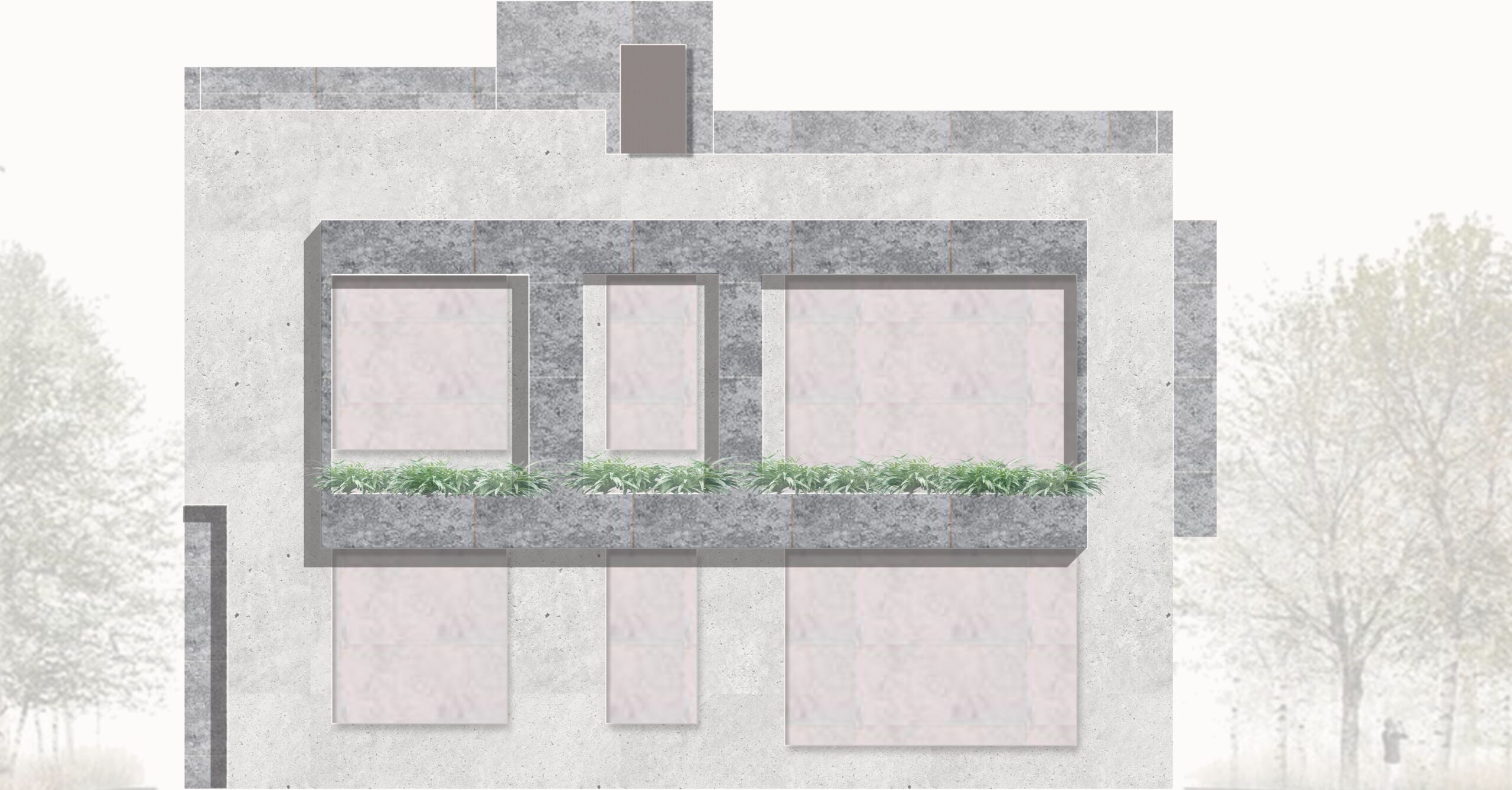

Up rhs elevation UP BUNGALOW FRONT ELEVTAION UP BACK ELEVATION UP lhs elevation

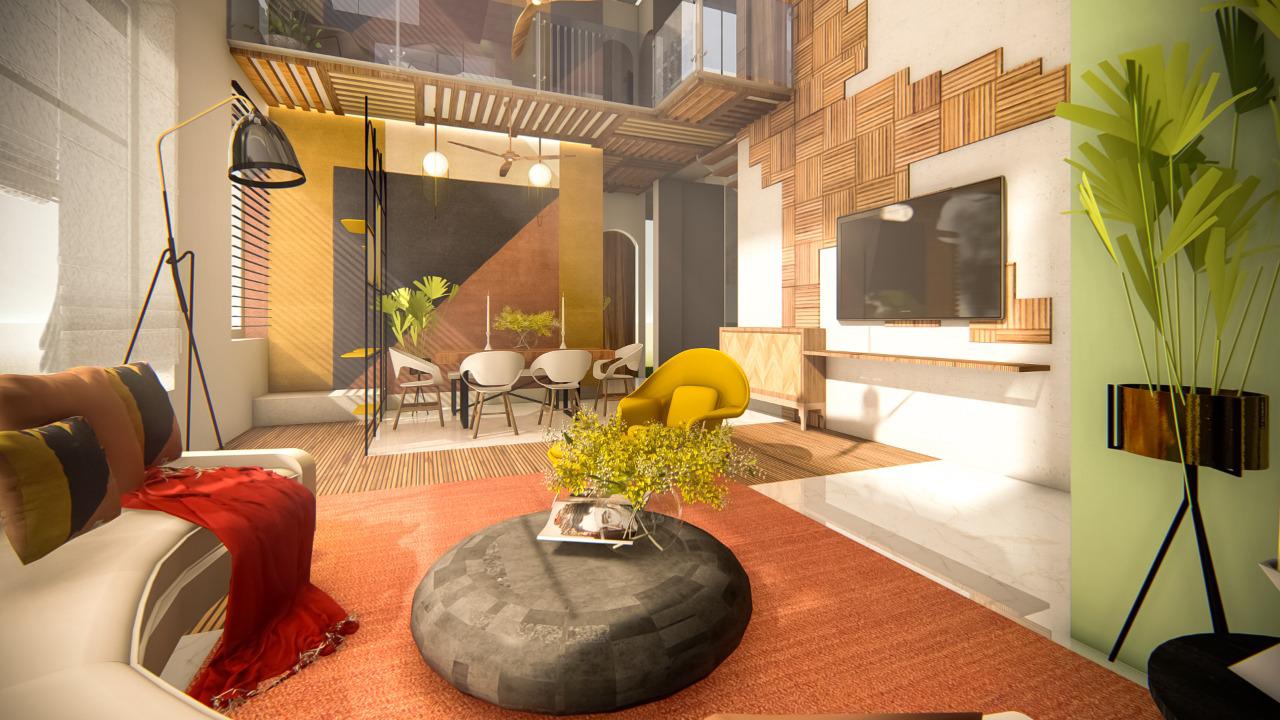

Materials such as locally available concrete to create IPS, refurbished rafter wood for ceiling details and locally available kota stone were used to create the experience the client desired. The entire space has been created to ensure maximum experiences through touch and texture. We tried to focus on these senses to create a sensorial experience that would keep the persons residing in the space to converse with the structure. A variety of wall and floor textures to make each space resonate uniquely to every individual was the studio’s primary focus.

The House in Between 8 The House in Between 9 The House in Between 10

The studio has sourced rugs and carpets for floor and wall cladding from local artisans ensuring a incorporation of the surrounding influence of a city so rich in heritage. Wooden murals were sourced from craftsmen working in the locality and the doors were crafted by skilled wood masons to ensure the perfect adaptation of a modern functionality and cultural heritage.
