Exploring the Golden Ratio in Notre Dame Cathedral’s Architecture

The golden ratio in Notre Dame Cathedral refers to the mathematical proportion of approximately 1.618 (phi) embedded in the cathedral’s facade, rose windows, nave dimensions, and portal arrangements. This principle, applied by medieval builders between 1163 and 1345, contributes to the visual harmony and structural balance that have made Notre Dame one of the most admired Gothic buildings in the world.

The Notre Dame Cathedral, an iconic symbol of Gothic architecture, has fascinated visitors and scholars for centuries. But did you know that its design is deeply rooted in the mathematical concept of the golden ratio? This ancient principle, often associated with beauty and harmony, plays a significant role in the cathedral’s stunning proportions and details.

As we look at the golden ratio’s influence on Notre Dame, we’ll uncover how this mathematical relationship enhances the cathedral’s aesthetic appeal and structural integrity. Understanding this connection deepens our appreciation for Notre Dame and reveals the timeless nature of mathematical beauty in art and architecture.

Historical Context of Notre Dame Cathedral

Notre Dame Cathedral, located on the Ile de la Cite in Paris, is one of the most iconic examples of French Gothic architecture. Construction began in 1163 under Bishop Maurice de Sully during the reign of King Louis VII. The choir was completed by 1182, the nave by around 1200, and the western facade with its twin towers by 1250. Various chapels and refinements continued until the cathedral was primarily completed by 1345.

In the mid-12th century, a shift in architectural design aimed at creating taller, more light-filled structures began. Notre Dame’s architects used the pointed arch and the ribbed vault, hallmarks of Gothic design, to achieve this goal. Bishop Maurice de Sully, the driving force behind the cathedral, envisioned a monument that would symbolize Paris’ religious and cultural importance. The project drew on innovations first tested at the Abbey of Saint-Denis under Abbot Suger, where light was treated as a divine element within sacred space.

Several key historical events are associated with Notre Dame. In 1431, Henry VI of England was crowned King of France within its walls. In 1804, Napoleon Bonaparte’s coronation as Emperor of France took place here. The cathedral also witnessed the beatification of Joan of Arc in 1909.

Free Online Golden Ratio Calculator

Single Value Ratio Check Series Reverse

Enter a value

px cm mm m inch feet

Enter a number to calculate golden ratio values

Nearest Fibonacci Numbers

Golden Rectangle

Hide Spiral

φ = 1.618

Image Golden Ratio Overlay

Click to upload or drag and drop

PNG, JPG, GIF, WEBP (max 10MB)

− 100% +

Drag the golden spiral overlay to position it on your image. Use +/- to resize.

Golden Ratio Calculator

Renovation efforts have played a significant role in Notre Dame’s history. Victor Hugo’s 1831 novel, “The Hunchback of Notre-Dame,” sparked renewed interest in the cathedral, leading to extensive restoration overseen by Eugene Viollet-le-Duc in the 19th century. Viollet-le-Duc added the famous spire (la fleche), restored the gargoyles, and reinstated many decorative elements that had been damaged during the French Revolution.

In April 2019, a devastating fire severely damaged parts of Notre Dame, including its iconic spire and two-thirds of the medieval oak roof. After a five-year restoration effort involving approximately 2,000 craftspeople, 250 companies, and roughly 850 million euros in donations from 340,000 donors worldwide, Notre Dame reopened on December 7, 2024. The restored cathedral now reveals its original luminosity, with cleaned limestone walls, vibrant murals, and all 8,000 organ pipes carefully restored.

Architectural Significance of Notre Dame Cathedral

Notre Dame Cathedral represents a turning point in the history of architecture, combining structural innovation with the golden ratio to create one of Europe’s most celebrated buildings.

Gothic Architecture Features

The cathedral’s Gothic architecture features pointed arches, ribbed vaults, and flying buttresses. These elements create a strong sense of verticality and allow natural light to flood the interior. The soaring arches direct weight outward and down, allowing walls to reach unprecedented heights. Ribbed vaults reinforce the structure while reducing the weight of the ceiling, enabling the inclusion of large stained-glass windows. Flying buttresses, the external arched supports, distribute lateral thrust away from the building, adding stability without reducing the visual openness of the walls.

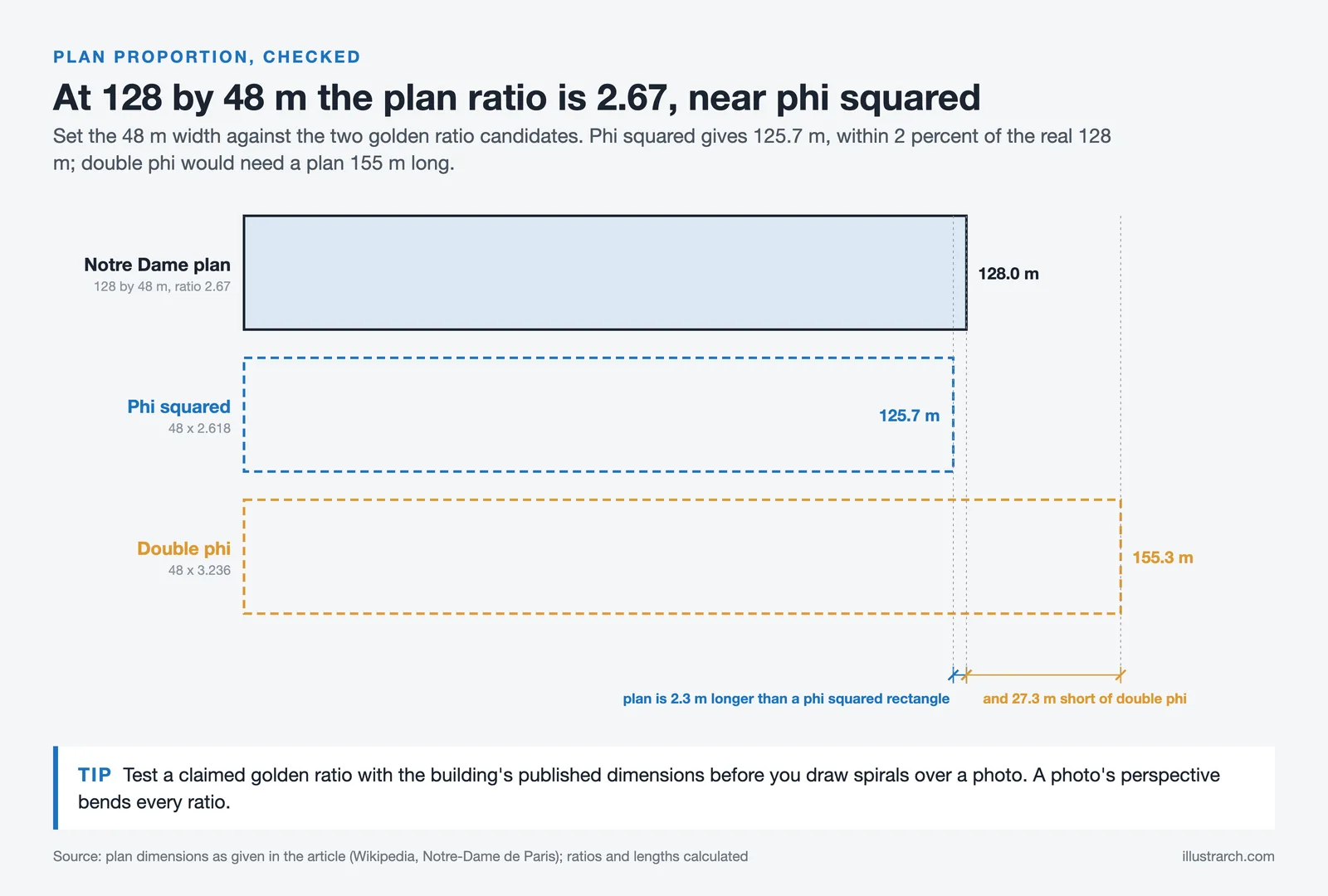

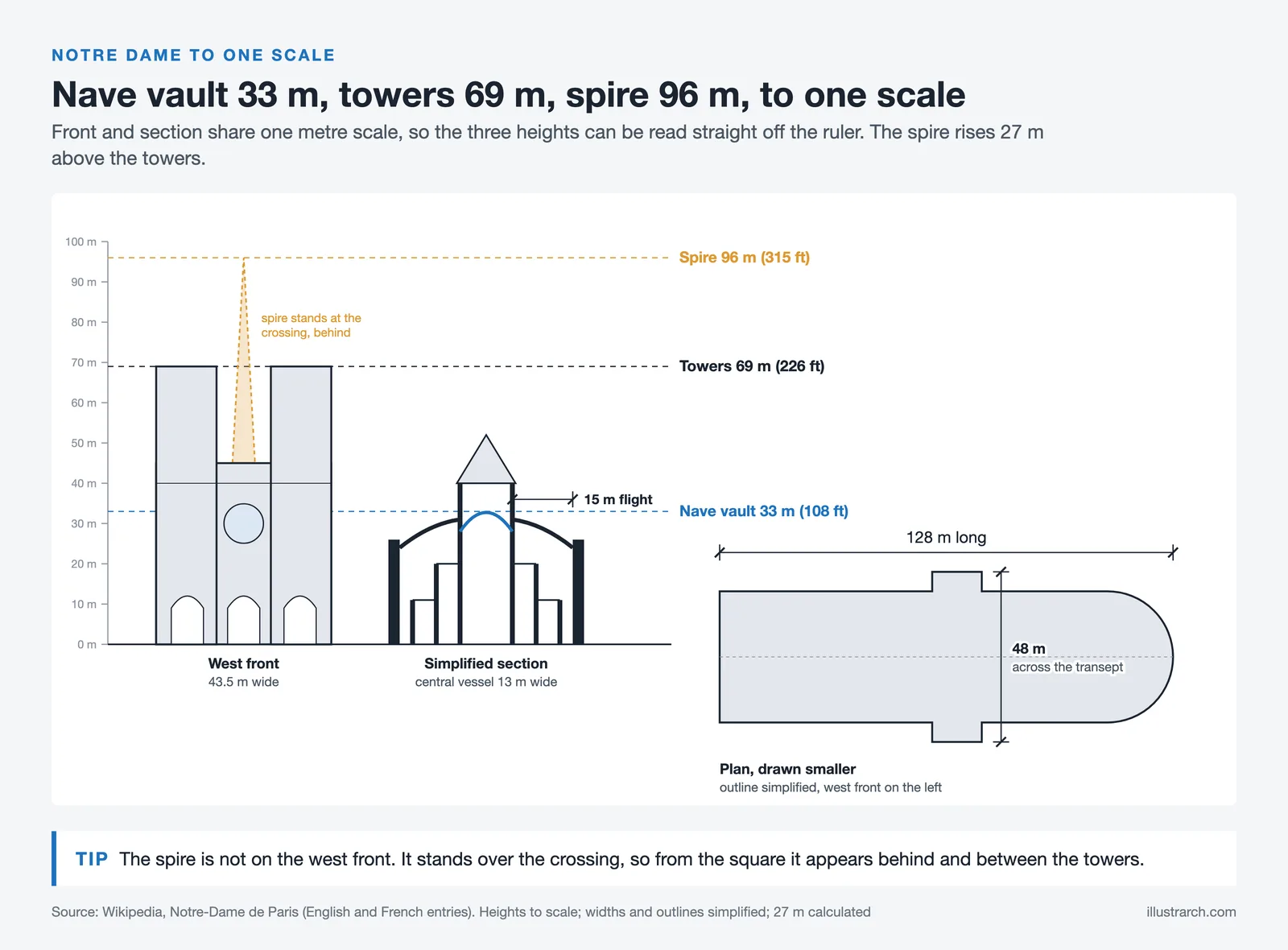

Notre Dame’s nave vaults rise to 33 meters (108 feet) above the floor. The twin towers reach 69 meters (226 feet), and the restored spire stands at 96 meters (315 feet). The cathedral spans 130 meters in length and 48 meters in width across the transept. These dimensions made it one of the tallest structures in medieval Paris and allowed it to accommodate approximately 6,000 worshippers.

Innovative Design Elements

Notre Dame’s design incorporates multiple innovative elements. The rose windows, based on the golden ratio, enhance both beauty and structural balance. The three rose windows measure between 10 and 13.5 meters in diameter, with the west window dating from around 1220 and the north and south transept windows added later. The open interior space, enabled by pointed arches and ribbed vaults, allows for expansive, unobstructed views. The three portals on the western facade, dedicated to the Virgin Mary, the Last Judgment, and St. Anne, hold over 3,000 carved figures and adhere to harmonious proportions reflecting the influence of the golden ratio. These design features contribute to the cathedral’s visual harmony, timeless appeal, and structural integrity.

What Is the Golden Ratio in Architecture?

The golden ratio, approximately 1.618, has influenced architectural design for centuries. This mathematical concept, also known as phi (Φ), the divine proportion, or the golden section, brings a sense of harmony and beauty to built structures.

Understanding the Golden Ratio

The golden ratio represents a specific relationship where the sum of two quantities divided by the larger quantity equals the larger quantity divided by the smaller one. Expressed as a formula: (a+b)/a = a/b ≈ 1.618. Architects and artists consider it aesthetically pleasing because our brains appear to respond positively to proportions that mirror patterns found in nature, from the spiral of a nautilus shell to the branching patterns of trees.

The golden ratio appears in various elements of architecture, including facades, floor plans, window arrangements, and column spacing, creating visually appealing and balanced structures. The ratio is closely connected to the Fibonacci sequence, where each number is the sum of the two preceding ones (0, 1, 1, 2, 3, 5, 8, 13, 21…). As the sequence progresses, the ratio between consecutive numbers approaches 1.618. Understanding the golden ratio allows us to appreciate its application in celebrated monuments such as Notre Dame Cathedral.

Historical Uses of the Golden Ratio in Buildings

Historical structures across cultures often exhibit the golden ratio. The concept was first described by Euclid around 300 BCE in his treatise “Elements.” Ancient Greeks employed it in the Parthenon design, where the western facade can be enclosed within a golden rectangle. The Egyptians used it in the Great Pyramid of Giza, whose base-to-height ratio closely mirrors 1:1.618.

During the Renaissance and into the modern era, architects continued to draw on this principle. Leonardo da Vinci studied it extensively through his work on the Vitruvian Man. Le Corbusier developed the Modulor in 1943, a proportional system combining the golden ratio with human body measurements, which he applied to projects like the Unite d’Habitation in Marseille. In Gothic architecture specifically, the golden ratio enhances both aesthetic appeal and structural integrity. Notre Dame Cathedral incorporates this ratio in its architectural elements, from rose windows and portals to spire proportions, all reflecting this mathematical harmony.

These insights show the timeless application of the golden ratio in creating architectural marvels that feel naturally balanced to the human eye.

How Is the Golden Ratio Used in Notre Dame Cathedral?

Analyzing the golden ratio in Notre Dame Cathedral reveals how this mathematical principle contributes to its design at multiple scales. Both the exterior facade and the interior layout reflect careful proportional planning rooted in phi.

Facade and Proportions

The facade of Notre Dame Cathedral shows the golden ratio’s role in achieving harmonious proportions. Architects used this ratio to determine the height and width relationships of the towers. The towers’ heights relate to the overall width of the facade, forming a golden rectangle. According to historian Frederik Macody Lund, who studied the geometry of several Gothic buildings, Notre Dame’s western facade was designed according to golden ratio principles. This creates a sense of balance and unity visible even from a great distance.

The proportional relationships can be traced at multiple levels of the facade. The vertical height from the ground to the top of the first level relates to the top of the second floor at a ratio close to phi. The horizontal width of the facade sections also follows golden ratio divisions. The placement of the rose windows and the dimensions of the main portals adhere to golden ratio principles, ensuring aesthetic coherence across the entire western elevation.

Rose Windows and the Golden Ratio

The rose windows of Notre Dame provide one of the most visible examples of the golden ratio in the cathedral. The north rose window, measuring approximately 13 meters in diameter, is divided into sections whose sizes relate to each other according to phi. Each concentric ring of tracery expands outward at proportions approaching 1.618 relative to the ring before it.

This proportional system serves a dual purpose. Visually, it creates a sense of natural growth radiating from the center, similar to patterns found in flowers and shells. Structurally, distributing stone tracery and glass panels according to these ratios helps balance the weight across the circular frame, which must resist both gravity and wind loads. The result is a window that has survived for over 800 years while remaining one of the most photographed architectural elements in the world.

Interior Design and Spatial Proportions

Inside Notre Dame, the golden ratio is evident in the layout and proportions of key elements. The nave’s height relative to its width approximates a golden ratio, enhancing the sense of verticality and loftiness. The central nave rises to 33 meters, and the relationship between this height, the width of the nave, and the spacing of the column bays creates spaces that feel both expansive and proportional.

Stained glass windows follow these proportions, contributing to visual harmony throughout the interior. The distances between the columns, the height of the arcade level relative to the triforium and clerestory levels, and the proportional division of the cross-section all reflect phi-based relationships. This careful application of the golden ratio in the interior design reinforces the cathedral’s grandeur and spiritual ambiance, guiding the eye upward and creating a sense of ordered calm within a vast space.

The Debate: Was the Golden Ratio Intentionally Used?

While the golden ratio can be measured in Notre Dame’s proportions, architectural historians have debated whether medieval builders consciously applied it. George Jouven, chief architect of French historic monuments, noted that while the golden ratio appears in many Gothic structures, direct evidence of its deliberate use in medieval design documents is limited. Viollet-le-Duc himself, in his writings on proportions, did not reference it.

On the other hand, medieval builders had access to geometric knowledge inherited from ancient sources, particularly through translations of Euclid’s “Elements” that circulated in cathedral schools. The consistent appearance of phi-based proportions across multiple Gothic cathedrals, including Chartres, Amiens, and Notre Dame, suggests at minimum an intuitive understanding of these ratios, even if builders did not express them in the same mathematical language we use today.

Golden Ratio Proportions in Notre Dame: Key Measurements

The following table summarizes the key proportional relationships where the golden ratio appears in Notre Dame Cathedral’s design:

Influence on Modern Architecture

Modern architecture continuously draws inspiration from historical masterpieces, and Notre Dame Cathedral is no exception. The golden ratio, deeply embedded in Notre Dame’s design, plays a role in contemporary architectural thinking. Architects today integrate this mathematical principle to achieve balance and aesthetic harmony in various structures, continuing a tradition that stretches back to antiquity.

Notable Modern Examples

Several modern structures reflect the influence of golden ratio-derived aesthetics seen in Notre Dame and other historical buildings:

1. Sydney Opera House
   Designed by Jorn Utzon, the Sydney Opera House uses curved shells whose proportional relationships echo the golden ratio, creating a visually striking and balanced form on Bennelong Point.
2. The Louvre Pyramid
   I.M. Pei’s glass pyramid addition to the Louvre in Paris applies the golden ratio in its proportions. The pyramid’s height-to-base relationships contribute to its equilibrium and elegance within the historic museum courtyard.
3. Apple Park
   Foster + Partners’ Apple Park campus (completed 2017) uses golden ratio proportions to organize the main ring building’s internal zones, landscape buffers, and structural grid, demonstrating phi’s continued relevance in 21st-century design.

How Do Architects Apply the Golden Ratio Today?

Today’s architects incorporate the golden ratio across multiple design scales:

In facade designs, using the golden ratio ensures symmetrical and appealing elevations, following the same logic seen in Notre Dame’s rose windows and portals. Interior layouts benefit from this ratio when room dimensions and spatial distribution follow the 62/38 proportion (derived from 1.618), mirroring the harmonious proportions found within the cathedral’s nave and window placements. The golden ratio in design also guides furniture placement, ceiling heights, and the proportional relationship between open and enclosed spaces.

Technological Integration

Advanced software like CAD tools and parametric design platforms facilitates precise application of the golden ratio in modern architecture. These tools enable architects to experiment with proportional relationships and optimize both structural integrity and visual appeal. The same 3D laser scanning technology used to document Notre Dame’s proportions before the 2019 fire (Andrew Tallon captured over one billion data points) now allows architects to analyze golden ratio relationships in existing buildings with millimetric accuracy, informing new designs grounded in historical proportional systems.

Our appreciation of the design intelligence seen in Notre Dame Cathedral profoundly impacts how we shape our urban landscapes. This enduring legacy of harmonious design principles underscores the timeless connection between mathematics and architectural beauty.

Notre Dame’s Restoration and the Preservation of Golden Ratio Proportions

The restoration of Notre Dame following the 2019 fire placed particular emphasis on preserving the cathedral’s original proportions. Chief architect Philippe Villeneuve, assisted by Remi Fromont and Pascal Prunet, led a team that sourced 1,300 limestone blocks from French quarries matching the original stone and used 1,500 oak trees to rebuild the roof framework using 13th-century carpentry techniques.

The French government’s National Commission for Heritage and Architecture (CNPA) unanimously approved that Notre Dame should be restored to its last complete, coherent, and known state. This decision ensured that the golden ratio proportions embedded in the original design would be faithfully preserved. The rebuilt spire, identical to Viollet-le-Duc’s 19th-century design, maintains the proportional relationships between the spire, towers, and facade that contribute to Notre Dame’s iconic silhouette.

How to Identify the Golden Ratio in Gothic Cathedrals

If you want to identify golden ratio proportions in Notre Dame or other Gothic cathedrals, here is a practical approach you can follow:

Start by identifying the major structural divisions of the facade: the ground-level portals, the gallery level, the rose window level, and the tower zone. Measure or estimate the height of each zone and compare adjacent zones. If the ratio of the larger zone to the smaller zone approximates 1.618, you have found a golden ratio relationship. You can also use the golden ratio calculator to check specific dimensions by entering a known measurement and comparing the calculated phi value against the building’s actual proportions.

On the interior, look at the cross-section of the nave. The relationship between the arcade height (ground floor columns), the triforium gallery, and the clerestory windows typically follows proportional divisions where phi appears. Column spacing along the nave often relates to the width of the nave itself at a ratio close to the golden section.

Why the Golden Ratio Matters in Cathedral Architecture

The golden ratio matters in cathedral architecture because it addresses a fundamental challenge: how to create structures that feel both grand and human-scaled. Gothic builders needed their cathedrals to inspire awe, but they also needed visitors to feel comfortable and spiritually uplifted rather than overwhelmed. The golden ratio provided a proportional framework that achieved both goals.

Research suggests that our brains respond unconsciously to proportions tied to the golden ratio, fostering a sense of order and beauty. This reaction explains why Notre Dame’s interior, despite its enormous scale, feels balanced rather than oppressive. The 62/38 proportional split creates a visual hierarchy that guides the eye naturally from one element to the next, whether you are looking at the facade from the parvis or standing beneath the vaulted ceiling inside.

The golden ratio enhances architectural aesthetics by operating at a level that most visitors perceive instinctively rather than analytically. You do not need to understand phi to feel its effect when you walk into Notre Dame for the first time.
