Understanding Section Drawings in Architecture: A Practical Guide

Section drawings are where buildings start to make spatial sense. If plans tell us “what” and elevations show us “how it looks,” sections reveal “how it actually works.” In this guide to Understanding Section Drawings in Architecture, we unpack what sections are, how to read them, and how we use them to design and communicate buildings clearly, from concept to construction.

What Is An Architectural Section?

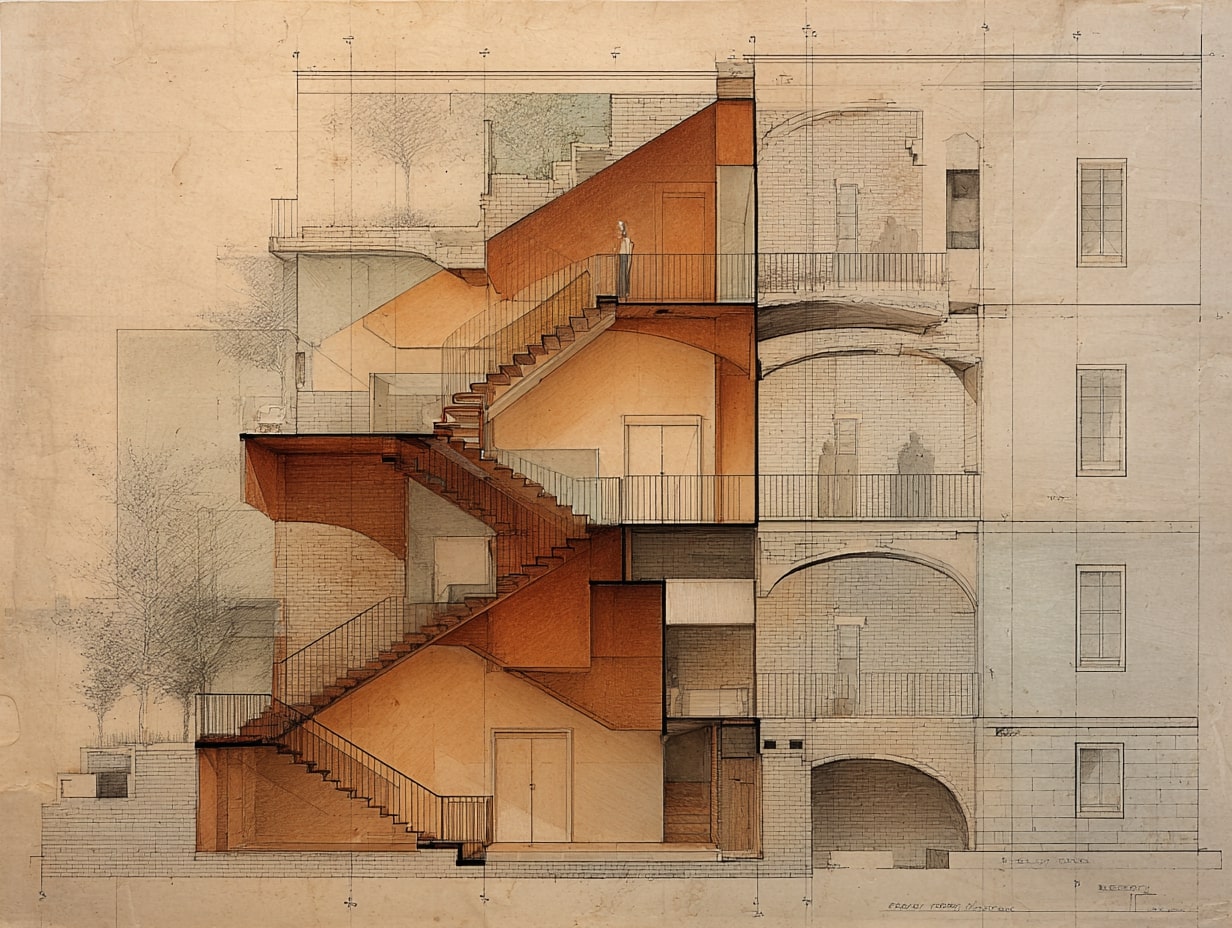

An architectural section is a vertical slice through a building that shows the relationship between spaces, structure, and systems at a specific cut location. Think of it as cutting a cake and looking at the layers, floors, walls, stairs, ducts, and daylight all in one view.

We use sections to:

• Clarify spatial proportions, heights, and adjacencies
• Coordinate structure, MEP services, and envelope layers
• Validate code items like egress and headroom
• Communicate material assemblies and buildability

Unlike elevations (which are exterior-oriented) and plans (which are horizontal cuts), sections combine both interior experience and technical composition. They’re essential for design reviews, client presentations, and construction documentation.

Types Of Section Drawings

Longitudinal And Cross Sections

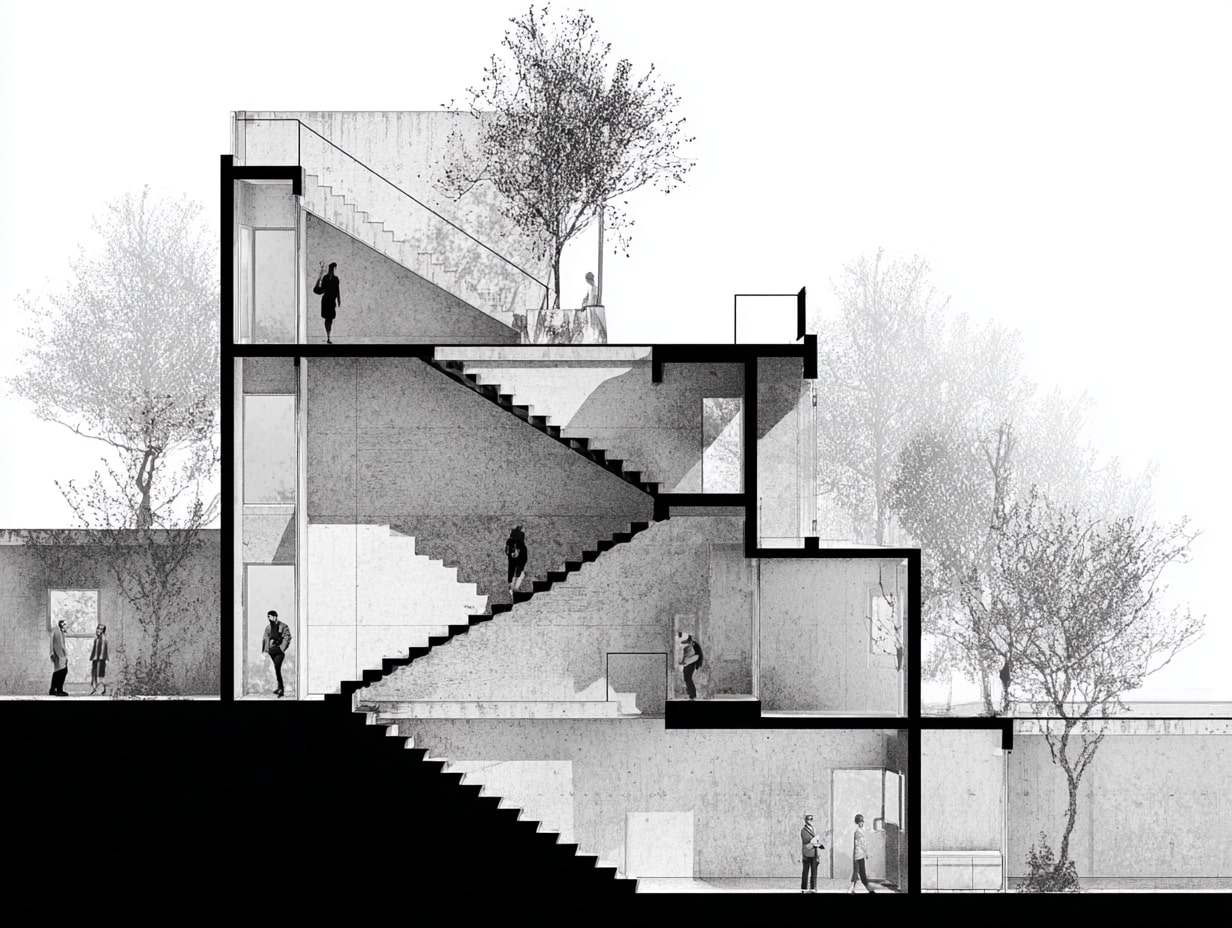

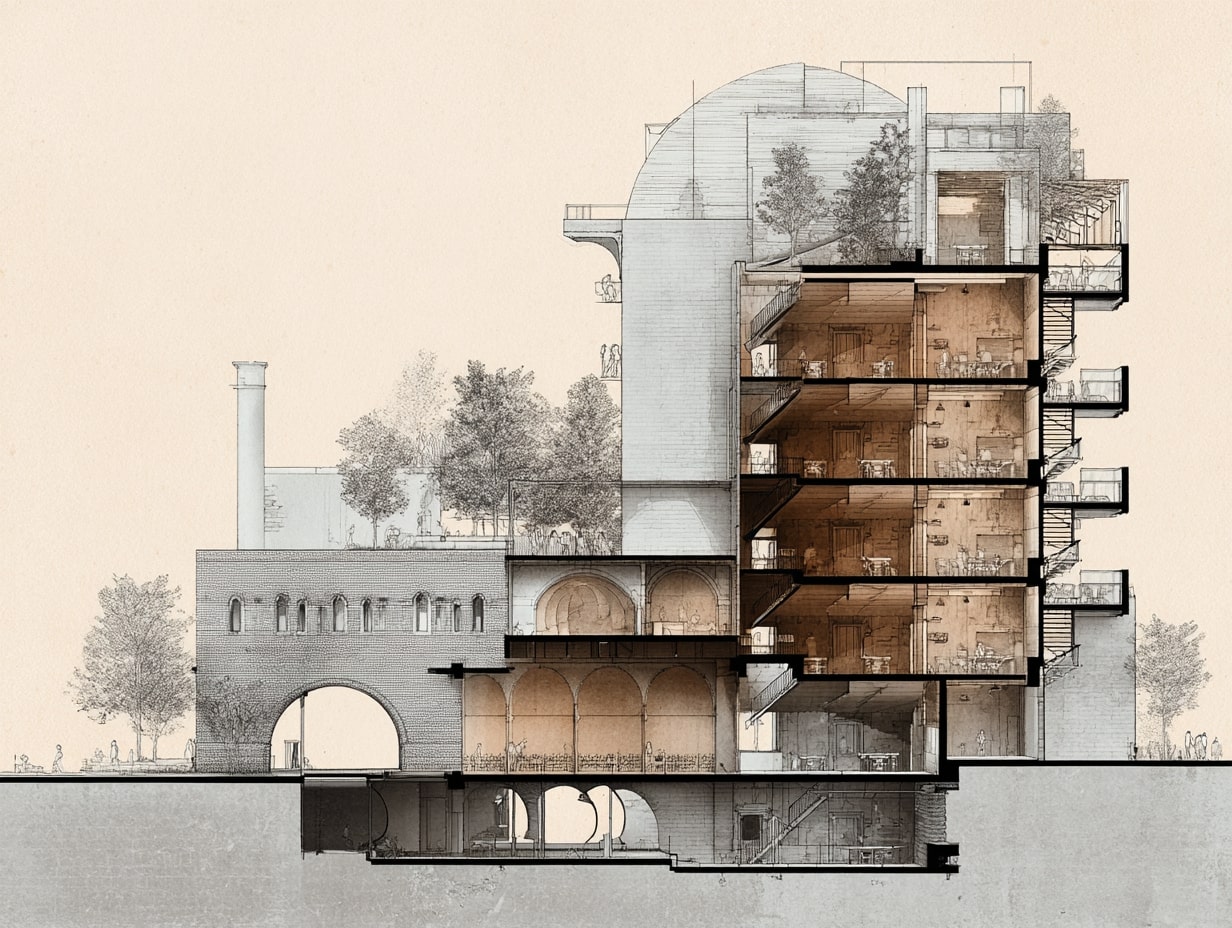

• Longitudinal sections run along the long axis of a building, capturing sequences of spaces, great for public buildings, schools, or transit hubs where procession matters.
• Cross sections cut across the short axis, ideal for showing structural spans, floor-to-floor heights, and façade-depth strategies.

Wall And Detail Sections

• Wall sections zoom in to show full envelope build-ups, cladding, air/water barriers, insulation, structure, and interior finishes, often from foundation to parapet.
• Detail sections focus tightly on junctions (window heads, sill/thresholds, roof-wall intersections) where performance and constructability are most at risk.

Broken, Removed, And Partial Sections

• Broken sections “skip” less relevant areas to focus on critical zones without producing extra sheets.
• Removed sections pull a complex component (like a stair) off to the side at larger scale for clarity.
• Partial sections isolate a specific bay or room when a full-cut is overkill.

How To Read A Section: Symbols, Notation, And Conventions

Section Line, Arrows, And Callouts

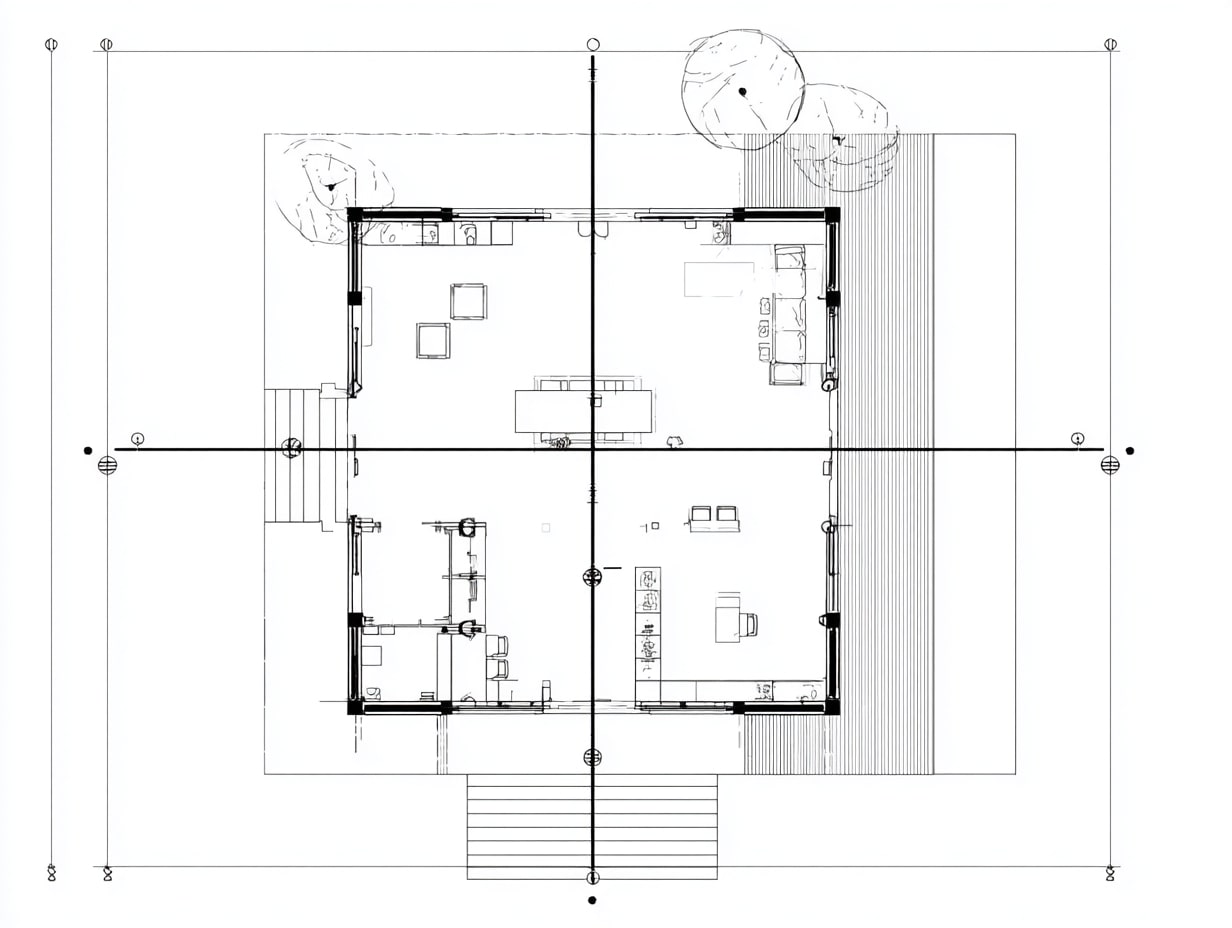

On the plan, a bold section line shows the cut path. Arrows indicate the viewing direction, and a callout or reference bubble points to the sheet and detail number where the section lives.

Cut Plane, Lineweights, And Depth Cues

Cut elements (what the plane slices through) get the heaviest lineweight: beyond-cut elements lighten progressively. We often use poche (filled cut) for structure and walls, and lighter lines or gray poché for background. Some teams add atmospheric depth (halftones or lighter lineweights) to improve legibility.

Hatching, Materials, And Components

Material hatches distinguish concrete, masonry, insulation, and wood. Consistent patterns and a material legend reduce confusion, especially when details are dense. Components like stairs, ducts, and beams should be drawn consistent with plan conventions.

Levels, Grids, And Datums

Levels provide vertical control, top of slab, finish floor, parapet, ridge. Grids help align with plans and structure. A shared datum (often 0′-0″ at ground floor) keeps consultants synchronized, especially in BIM.

Scale, Dimensions, And Notes

Choose the scale that serves the purpose: 1/8″=1′-0″ for overall building sections, 1/4″ or 1/2″ for key areas, and 1-1/2″ or larger for details. Dimension critical heights (clearances, headroom, sill heights), and use concise notes, avoid duplicating specs.

Designing With Sections: What To Analyze

Spatial Organization And Proportion

We test floor-to-floor heights, mezzanines, double-height moments, and how natural light penetrates deep into plans. Proportion checks, like 1:2 or 2:3 room ratios, help spaces feel balanced.

Structure, Services, And Buildability

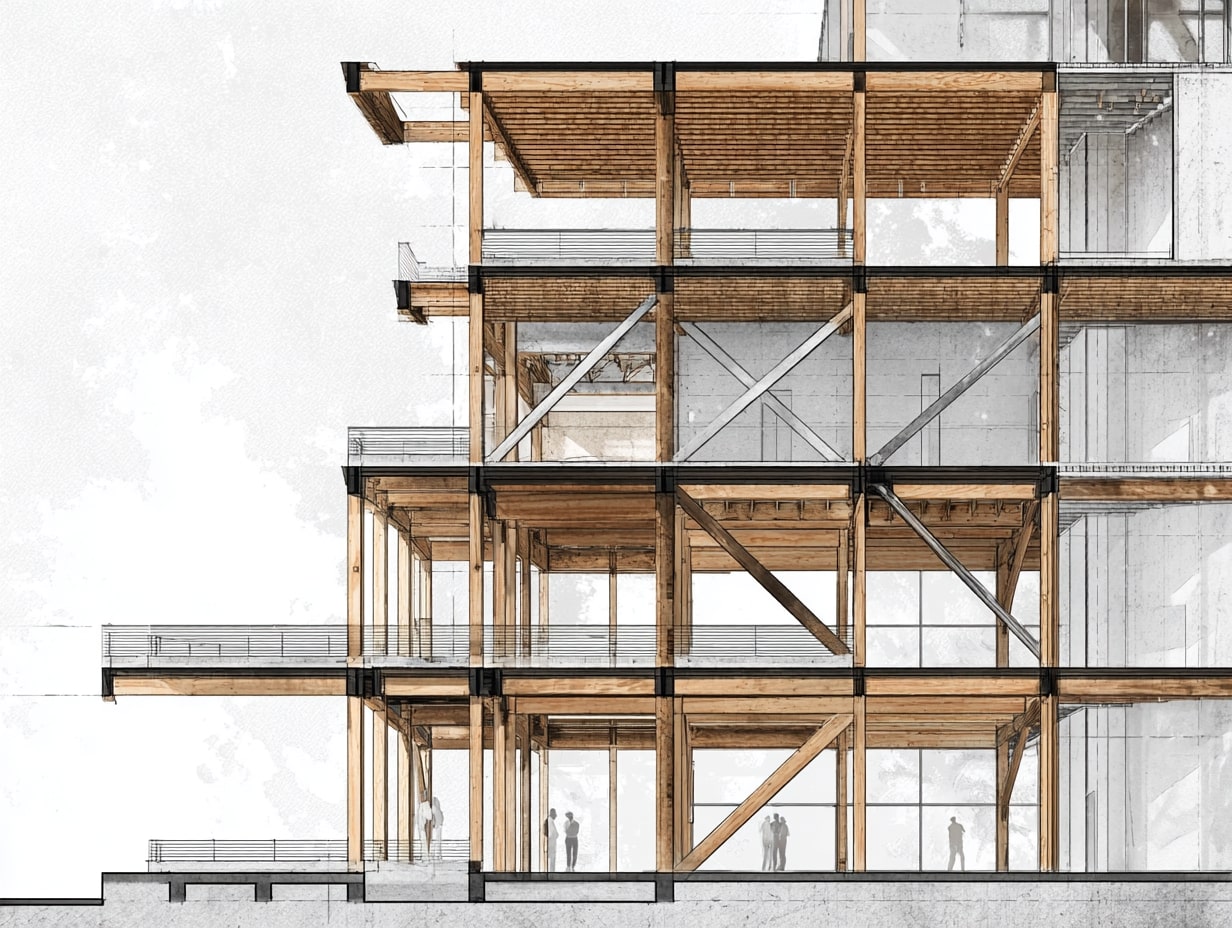

Sections reveal how beams, joists, and slabs align with ducts, pipes, and sprinklers. We look for clashes early: a duct hitting a beam, a stair landing into a transfer girder. If it doesn’t work in section, it won’t work on site.

Daylight, Views, And Natural Ventilation

We trace sun angles, light shelves, clerestories, and stack-effect paths. Simple section studies can increase daylight autonomy and reduce glare by adjusting reveals, soffits, and window heights.

Envelope Performance And Thermal Layers

Thermal continuity, air barriers, and drainage planes must be unbroken. In section we confirm insulation wraps corners, parapets, and slab edges without “thermal shortcuts.” We also check condensation risk at dew-point transitions.

Circulation And Life Safety

Stair geometry, headroom, handrail heights, refuge areas, and smoke control are best validated in section. We verify riser/tread totals, landing lengths, and that exits connect clearly to grade.

Creating Effective Sections: Workflow And Best Practices

Choosing Strategic Cut Locations

Cut where the story is richest: through stairs, double-height spaces, major structural spans, and envelope transitions. Avoid cutting through visual noise (like dense furniture) unless it’s the focus.

Setting Up Datums, Levels, And Grids

Establish shared coordinates early with consultants. Lock levels before heavy detailing, moving them late creates ripple effects across sheets and schedules.

CAD/BIM Modeling And Detailing Workflow

Model primary structure and envelope with sufficient fidelity so sections generate cleanly. Then embellish: add 2D detail components, poche, and tags. Use view templates, filters, and worksets to keep graphics consistent.

Lineweight Hierarchy And Graphic Clarity

Prioritize cut > foreground > background. Reserve poche for cut elements: keep beyond elements lighter or screened. Limit textures: legibility beats decoration.

Annotation Standards And Material Legends

Adopt a consistent keynoting system and material legends. Tag less, but smarter, call out assemblies once and reference them. Keep abbreviations standard to avoid misreads in the field.

Common Pitfalls And How To Avoid Them

• Floating levels that don’t match plans
• Broken thermal or air barriers at transitions
• Overly complex hatches that obscure intent
• Missing dimensions for critical clearances
• Inconsistent section callouts between sheets

Mitigation is simple: coordinated templates, periodic QA reviews, and redline passes focused on constructability.

Coordinating And Presenting Sections

Aligning With Plans And Elevations

We align section cuts with plan grids and key façade moments so drawings “talk to each other.” What you see in section should match elevations, sill lines, parapets, and control joints.

Cross-Referencing Callouts And Sheet Organization

Clear references (A-301/1, etc.) reduce hunting. Group related sections near their plans and details. If a section changes, update the cloud and revision index consistently.

Rendering Styles: Black-Line, Shaded, And Hybrid

• Black-line: crisp and construction-focused.
• Shaded: adds massing and material legibility for clients.
• Hybrid: poche + light shading + subtle entourage to convey depth without sacrificing precision.

Choose per audience, contractor, client, or planning review.

Print Settings, Scale Choices, And Accessibility

Test prints at final scale. Maintain minimum text heights for readability. Provide digital PDFs with layers/bookmarks when possible so stakeholders can navigate quickly.

Conclusion

Sections are where architecture’s logic is laid bare. When we cut with intent, read symbols precisely, and coordinate diligently, section drawings become powerful design tools, not just documentation. If we use them to probe space, verify performance, and communicate clearly, they’ll save time in coordination meetings and headaches on site. That’s the real value of Understanding Section Drawings in Architecture: sharper decisions, fewer surprises, better buildings.
