Top 10 Examples of Parametric Architecture Around the World

Parametric architecture is reshaping global design through computational tools that generate fluid forms, efficient structures, and environmentally responsive buildings. These ten iconic projects reveal how architects use parametric methods to redefine space, structure, and experience across the world.

Share
Top 10 Examples of Parametric Architecture Around the World
KAFD Metro Station by ZHA, Credit: Hufton + Crow
Share

Parametric architecture has transformed the way buildings are conceived, engineered, and experienced. Enabled by advanced computational tools, it shifts design away from fixed forms and toward dynamic systems that can adapt to structure, performance, and context. From fluid cultural centers to complex urban landmarks, parametric design allows architects to explore geometries that were once impossible to model or construct. This approach has not only expanded the boundaries of architectural expression but has also introduced new relationships between material, form, and environmental behavior. The following selection highlights 10 exemplary projects from around the world that demonstrate how parametric thinking has reshaped contemporary architecture. Each example reveals how computation can generate innovation—whether through structural efficiency, environmental responsiveness, or sculptural identity.

Quick Overview: 10 Iconic Parametric Architecture Examples
# Project Architect Location Year Typology Key Parametric Feature
1 Heydar Aliyev Center Zaha Hadid Architects Baku, Azerbaijan 2012 Cultural Center Fluid continuous surfaces, curved steel ribs
2 Metropol Parasol J. Mayer H. Architects Seville, Spain 2011 Urban Structure / Public Space Parametric timber lattice canopy
3 Yas Hotel (W Abu Dhabi) Asymptote Architecture Abu Dhabi, UAE 2009 Hotel / Hospitality Grid-shell facade, 5,800 diamond glass panels
4 Harbin Opera House MAD Architects Harbin, China 2015 Cultural / Performing Arts Algorithmic landscape-like massing
5 Galaxy SOHO Zaha Hadid Architects Beijing, China 2012 Mixed-Use Commercial Fluid non-orthogonal volumes
6 30 St Mary Axe “The Gherkin” Foster + Partners London, UK 2004 Office Tower Aerodynamic form, diagonal structural grid
7 Morpheus Hotel Zaha Hadid Architects Macau, China 2018 Hotel / Hospitality Free-form exoskeletal structure
8 KAPSARC Zaha Hadid Architects Riyadh, Saudi Arabia 2017 Research Center Parametric hexagonal grid system
9 KAFD Metro Station Zaha Hadid Architects Riyadh, Saudi Arabia 2024 Transportation / Infrastructure Wave-like structural ribs, sine-wave facade
10 Louvre Abu Dhabi Dome Ateliers Jean Nouvel Abu Dhabi, UAE 2017 Museum 8-layer perforated dome, “rain of light”
Harbin Opera House, Credit: Adam Mørk

1. Heydar Aliyev Center by Zaha Hadid Architects

The Heydar Aliyev Center, completed in 2012 in Baku, stands as one of Zaha Hadid Architects most iconic parametric works. Its fluid, continuous surfaces were generated through advanced parametric modeling to form a seamless envelope without visible joints, symbolizing openness and cultural transformation. The building’s structure uses curved steel ribs and complex geometries that could only be coordinated through computational tools. As a landmark of contemporary design, it demonstrates how parametric systems can merge architecture, engineering, and sculptural expression into a single coherent form.

Heydar Aliyev Center by ZHA

2. Metropol Parasol by J. Mayer H. Architects

Metropol Parasol, completed in 2011, redefined Seville’s Plaza de la Encarnación through a vast timber lattice generated using parametric modeling. Designed by J. Mayer H. Architects, the project uses a free-form, mushroom-like canopy composed of interlocking timber components precisely fabricated with digital tools. Its parametric structural logic distributes loads efficiently while creating shaded public space in a hot climate. As one of the world’s largest wooden structures, it illustrates how parametric design enables unconventional materials to perform at large urban scales.

Metropol Parasol by J. Mayer H. Architects

3. Yas Hotel by Asymptote Architecture

Completed in 2009, the Yas Hotel Abu Dhabi by Asymptote Architecture features a striking grid-shell facade made from over 5,800 diamond-shaped glass panels. The parametric skin dynamically responds to the building’s curvature and spans across two hotel towers connected by a bridge over the Formula 1 racetrack. Using computational coordination, the facade generates a shimmering, responsive pattern that changes with light and movement. This project is an early milestone in parametric architecture, showcasing how digital geometries can transform hospitality and entertainment experiences.

Metropol Parasol by J. Mayer H. Architects

4. Harbin Opera House by MAD Architects

Completed in 2015, the Harbin Opera House by MAD Architects is shaped through parametric algorithms that model the building as a landscape-like extension of its riverfront site. Its smooth, flowing aluminum exterior and twisting wooden interior surfaces were optimized through digital tools. The sculptural massing interacts with snow, wind, and natural light, reflecting the building’s northern climate. As one of the most poetic examples of computational design, it demonstrates how parametric methods can support atmospheric, site-sensitive architectural expression.

Harbin Opera House, Credit: Adam Mørk

5. Galaxy SOHO by Zaha Hadid Architects

Galaxy SOHO, completed in 2012, consists of four smoothly connected volumes generated through parametric modeling to ensure continuity between circulation, massing, and skylights. Its white, flowing surfaces reflect Zaha Hadid Architects’ signature approach to spatial fluidity. The parametric geometry allows the volumes to shift, merge, and wrap around courtyards, creating dynamic interior experiences. The project shows how commercial complexes can adopt landscape-inspired, non-orthogonal forms made possible through computational tools.

Galaxt SOHO, Credit: Iwan Baan

6. 30 St Mary Axe “The Gherkin” by Foster + Partners

Completed in 2004, The Gherkin by Foster + Partners is a pioneering example of early parametric design applied to skyscraper architecture. Its aerodynamic shape and diagonal structural grid were developed through computational optimization to reduce wind loads and improve energy efficiency. The spiraling atria and natural ventilation system came from parametric environmental studies, making it one of London’s most sustainable towers of its time. It paved the way for performance-driven skyscraper design worldwide.

30 St Mary Axe Tower, Credit: Nigel Young

7. Morpheus Hotel by Zaha Hadid Architects

Completed in 2018, the Morpheus Hotel features an exoskeletal structure formed through parametric algorithms that merge architecture and engineering into a continuous 3D composition. Zaha Hadid Architects created a free-form void system carved through the tower’s mass, enabled by computational modeling and digitally fabricated steel nodes. The facade expresses the building’s structural logic, eliminating internal columns. It is a benchmark in showing how parametric architecture can reinvent high-rise typologies.

Morpheus Hotel, Credit: Ivan Dupont

8. KAPSARC by Zaha Hadid Architects

The King Abdullah Petroleum Studies and Research Center (KAPSARC), completed in 2017, is based on a parametric hexagonal grid system that adapts to climate, program, and orientation. Zaha Hadid Architects designed crystalline volumes optimized for daylight, shading, and energy efficiency. Each cell of the honeycomb pattern is parametrically adjusted to form courtyards, shaded paths, and wind-controlled outdoor spaces. It is a leading example of environmentally responsive parametric planning.

The King Abdullah Petroleum Studies and Research Center, Credit: Hufton + Crow

9. KAFD Metro Station by Zaha Hadid Architects

The KAFD Metro Station features a rhythmic, wave-like structural system generated through parametric algorithms that coordinate geometry, passenger flows, and structural ribs. Its fibrous structure, fabricated with digital precision, emerges from computational modeling of movement patterns across intersecting metro lines. As a major infrastructure project, it demonstrates how parametric design can manage spatial complexity with architectural clarity.

KAFD Metro Station, Credit: Hufton + Crow

10. Louvre Abu Dhabi Dome by Ateliers Jean Nouvel

Completed in 2017, the Louvre Abu Dhabi Dome is one of the most advanced parametric structures ever built. Its 180-meter perforated dome consists of eight superimposed layers of steel and aluminum, each arranged through parametric algorithms to create the iconic “rain of light” effect. Inspired by mashrabiya patterns, the geometry provides natural shading while allowing filtered sunlight into the galleries. It is a landmark example of culturally driven computational design at monumental scale.

Louvre Abu Dhabi, Credit: Luc Boegly & Sergio Grazia

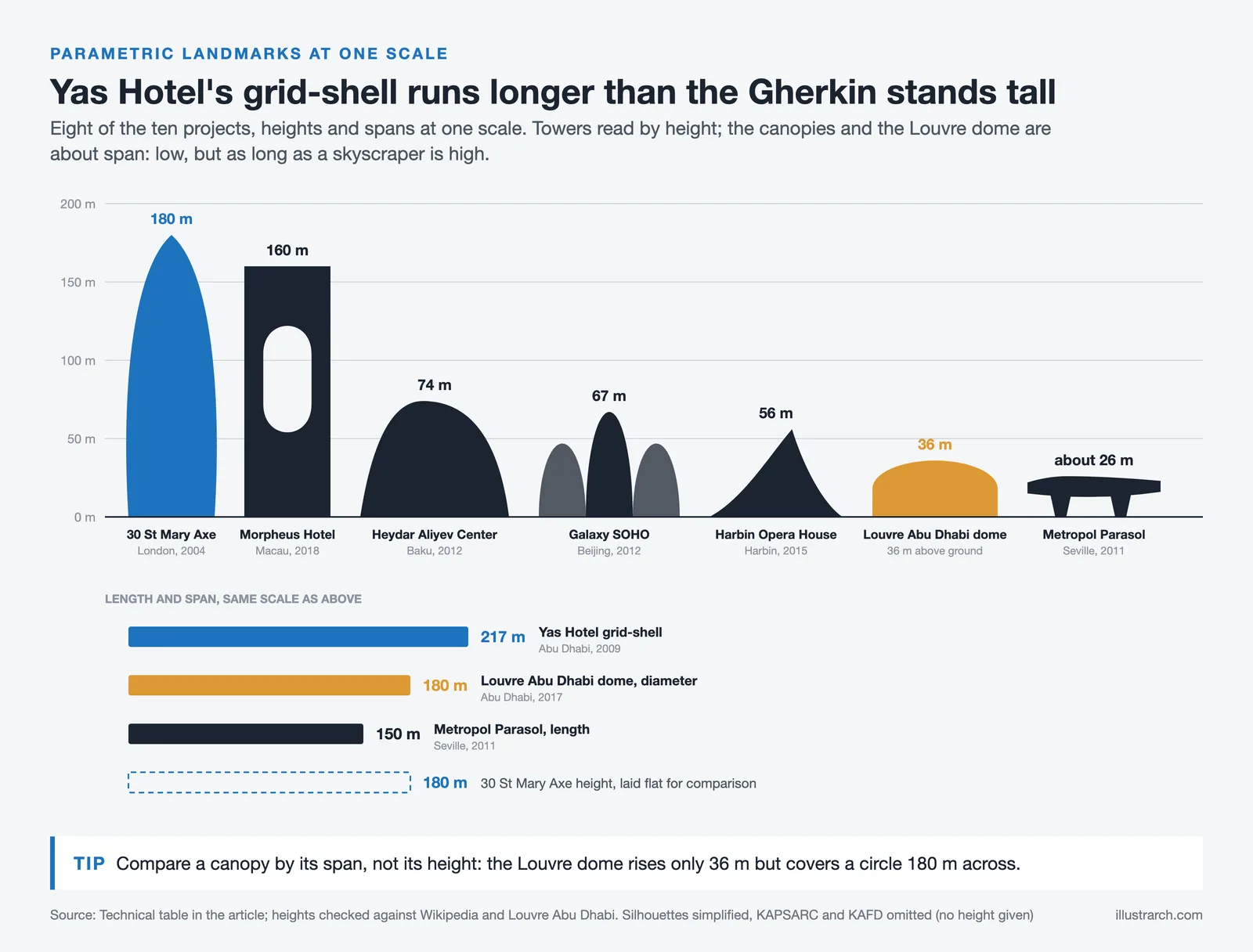

Technical Comparison: Scale, Materials & Structural Systems
Project Total Area Height / Span Primary Materials Structural System
Heydar Aliyev Center 57,500 m² 74 m (height) Steel, GFRC, concrete Two-layer space frame with continuous shell
Metropol Parasol ~11,000 m² (canopy) 28.5 m (h) / 150 × 75 m Engineered timber (Kerto LVL), concrete Parametric timber lattice grid
Yas Hotel 85,000 m² 217 m (grid-shell span) Steel, glass (5,800 panels), LED Grid-shell monocoque canopy
Harbin Opera House ~79,000 m² 56 m (height) Aluminum cladding, Manchurian ash wood Free-form shell with curved steel trusses
Galaxy SOHO 330,000 m² 67 m (height) Aluminum cladding, concrete, glass Interconnected flowing volumes with bridges
30 St Mary Axe 76,400 m² 180 m (height) / 41 floors Steel, glass (5,500 diamond panels) Diagonal diagrid exoskeleton
Morpheus Hotel 150,000 m² 160 m (height) / 40 floors Steel exoskeleton, glass, aluminum Free-form exoskeleton (world’s first)
KAPSARC 70,000 m² Low-rise campus GFRC, concrete, steel canopy Modular hexagonal honeycomb grid
KAFD Metro Station 8,150 m² 5 levels above grade UHPC panels, steel, GFRG Opposing sine-wave lattice envelope
Louvre Abu Dhabi Dome 24,000 m² (museum) 180 m (dome ⌀) / 36 m (h) Stainless steel, aluminum (7,850 stars) 8-layer perforated dome on 4 hidden piers

Parametric Design Approach & Sustainability Performance
Project Parametric Design Strategy Environmental / Sustainability Features Awards & Certifications
Heydar Aliyev Center Surface continuity modeling; seamless form generation through computational geometry Landscape integration reducing heat island effect; natural daylight optimization Design Museum – Design of the Year 2014
Metropol Parasol Digital fabrication of interlocking timber components; parametric load distribution Passive solar shading; sustainable engineered timber construction; urban heat reduction Red Dot Design Award; RIBA International Award shortlist
Yas Hotel Computational coordination of 5,800 unique pivoting glass panels; curvature-responsive skin Environmentally responsive facade; LED-integrated lighting reducing energy waste
Harbin Opera House Algorithmic landscape modeling; form generation responding to terrain and climate data Climate-responsive massing; natural light and ventilation optimization; wetland integration ArchDaily Building of the Year 2016 (Cultural)
Galaxy SOHO Continuous surface modeling; parametric courtyard and skylight optimization Natural ventilation through courtyards; daylight penetration via parametric skylights Emporis Skyscraper Award 2013 (3rd place)
30 St Mary Axe CFD-based aerodynamic optimization; parametric environmental performance studies 50% energy reduction vs. typical towers; spiraling atria for natural ventilation; reduced wind loads RIBA Stirling Prize 2004; Emporis Skyscraper Award 2003
Morpheus Hotel Full parametric model integrating aesthetic, structural & fabrication parameters; void carving algorithms Column-free interiors maximizing usable space; high-performance glazing Prix Versailles – World’s Most Beautiful Hotel 2023; TIME World’s Greatest Places 2018
KAPSARC Hexagonal grid adaptation for climate, program and orientation; modular cell growth logic 45% energy reduction; rooftop solar PV (5,000 MWh/year); 100% water recycling on site LEED Platinum Certification
KAFD Metro Station Traffic-flow-driven form generation; sine-wave frequency variation from daily movement data High-efficiency cooling; intelligent climate control; renewable energy integration LEED Gold Certification
Louvre Abu Dhabi Dome Multi-layer parametric star geometry for controlled light filtration; 7,850 unique star elements 98% solar heat gain elimination; 42% reduction in solar gain; passive cooling design Aga Khan Award for Architecture 2019; LEED Silver

The examples presented here illustrate how parametric architecture has evolved into a globally influential design methodology capable of redefining entire building typologies. Whether expressed through fluid envelopes, adaptive façades, or algorithmically optimized structures, these projects show how digital tools empower architects to merge creativity with precision. More importantly, they highlight architecture that responds intelligently to climate, site, circulation, and cultural context. As computational design continues to advance, parametric architecture will remain a catalyst for innovation, inspiring future architects to push the boundaries of what is possible.
