Architectural Drawings: A Student’s Guide to 8 Essential Types

Architectural drawings are scaled technical and visual representations that communicate how a building looks, works, and gets built. The main types include floor plans, site plans, elevations, sections, detail drawings, axonometric views, perspectives, and concept sketches. Each one shows the design from a different angle and serves a distinct stage of the project. Learning to read and produce drawings is one of the first real skills you pick up in architecture school, and it stays with you for your whole career. A single project usually needs several drawing types working together, each answering a question the others cannot. Knowing what each one is for helps you choose the right tool at the right moment, whether you are sketching a first idea or preparing a final set for construction. Here are the eight types worth knowing early.

What Are Architectural Drawings?

An architectural drawing is a technical illustration that records a building’s form, dimensions, materials, and spatial relationships. Some are precise, measured documents used for permits and construction. Others are looser, conceptual studies meant to test an idea. Drawn with standard drawing symbols and consistent scales, these architectural drawings become a shared language that architects, engineers, and contractors all read the same way. University references like The New School’s architecture drawing guide point to the textbooks that codify these conventions.

The Two-Dimensional Drawing Types

Most working drawings are orthographic, meaning they show the building straight on with no perspective distortion, so every measurement stays true to scale. These flat views form the backbone of any drawing set.

Floor Plans

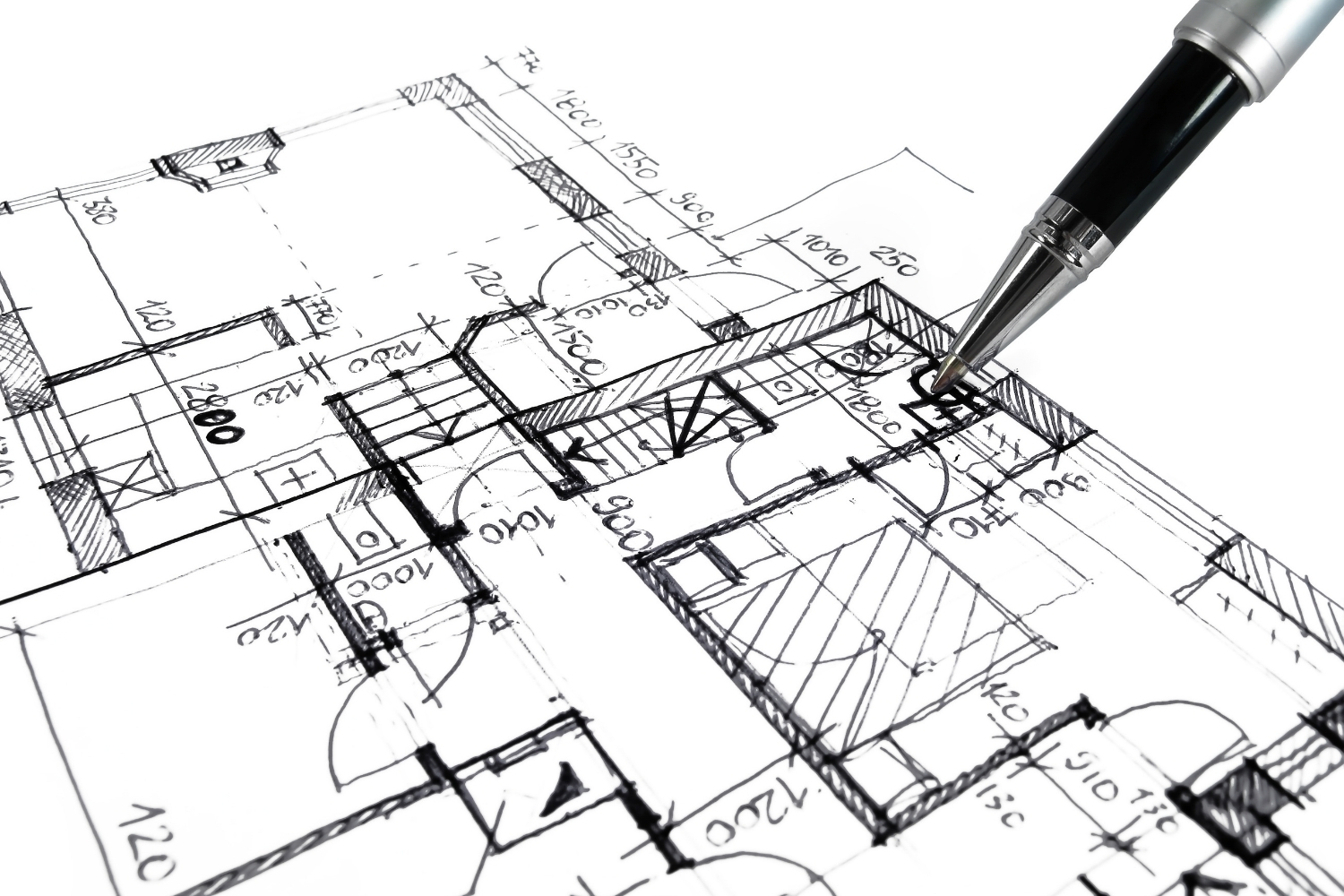

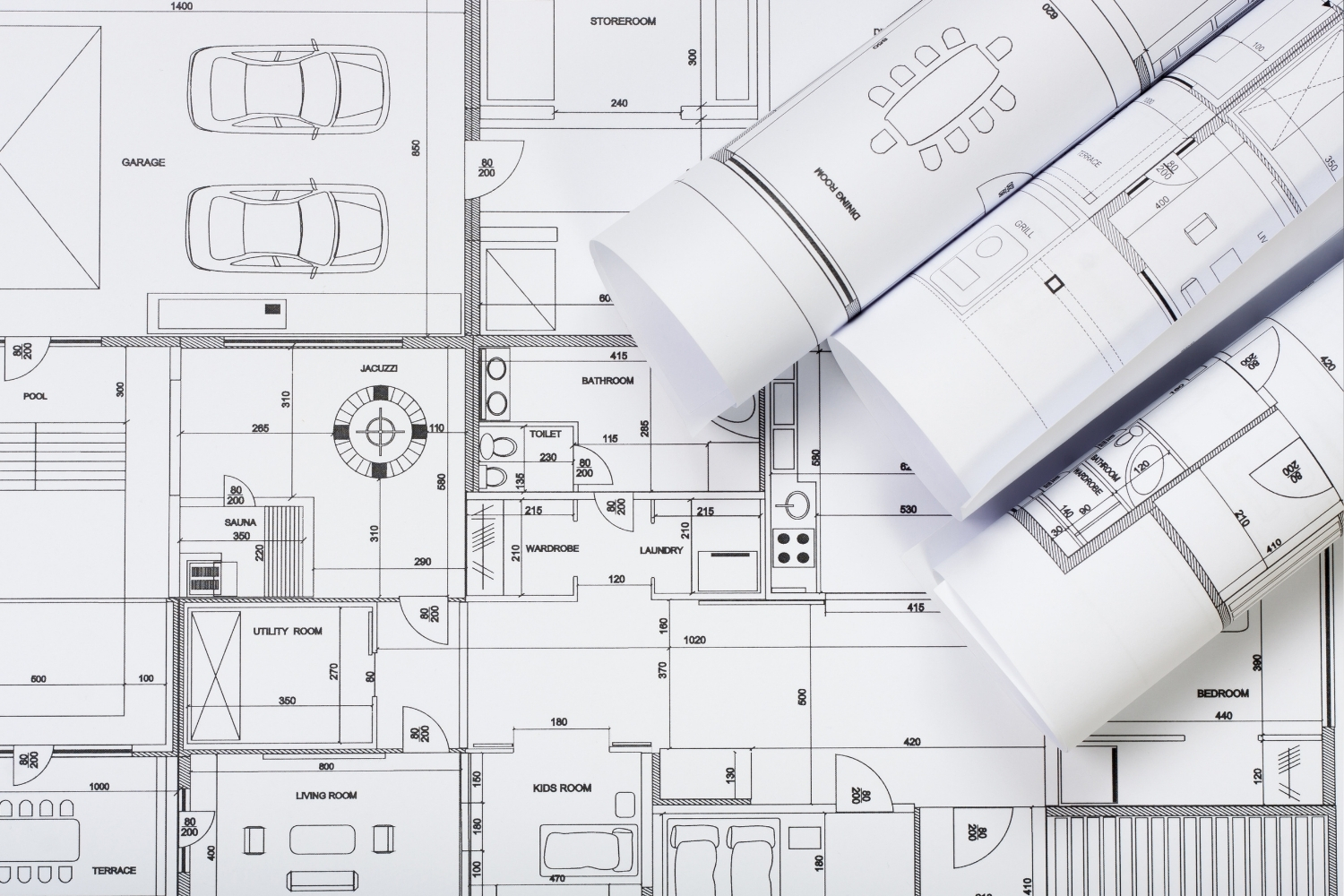

A floor plan is a horizontal slice through the building, usually taken about 1.2 meters (4 feet) above the floor and viewed from above. It shows room layouts, wall positions, doors, windows, and circulation. Plans are the most referenced drawing in any set because almost every other drawing connects back to them. If you master one drawing type first, make it the plan. Our guide to creating architectural floor plans covers the conventions in more depth.

Site Plans

A site plan zooms out to show the building on its plot, including boundaries, access roads, landscaping, parking, and utility connections. Planning authorities almost always require one before granting permission, since it shows how the project sits within its surroundings and respects setbacks and property lines.

Elevations

An elevation is a flat, head-on view of one vertical face of the building, drawn to scale. It shows heights, proportions, materials, and the placement of windows and doors without perspective. Most projects need at least four, and the front elevation gets the most scrutiny in planning reviews, since professional bodies such as the American Institute of Architects treat elevations as standard permit documents. See our breakdown of elevation drawings for the main subtypes.

Section Drawings

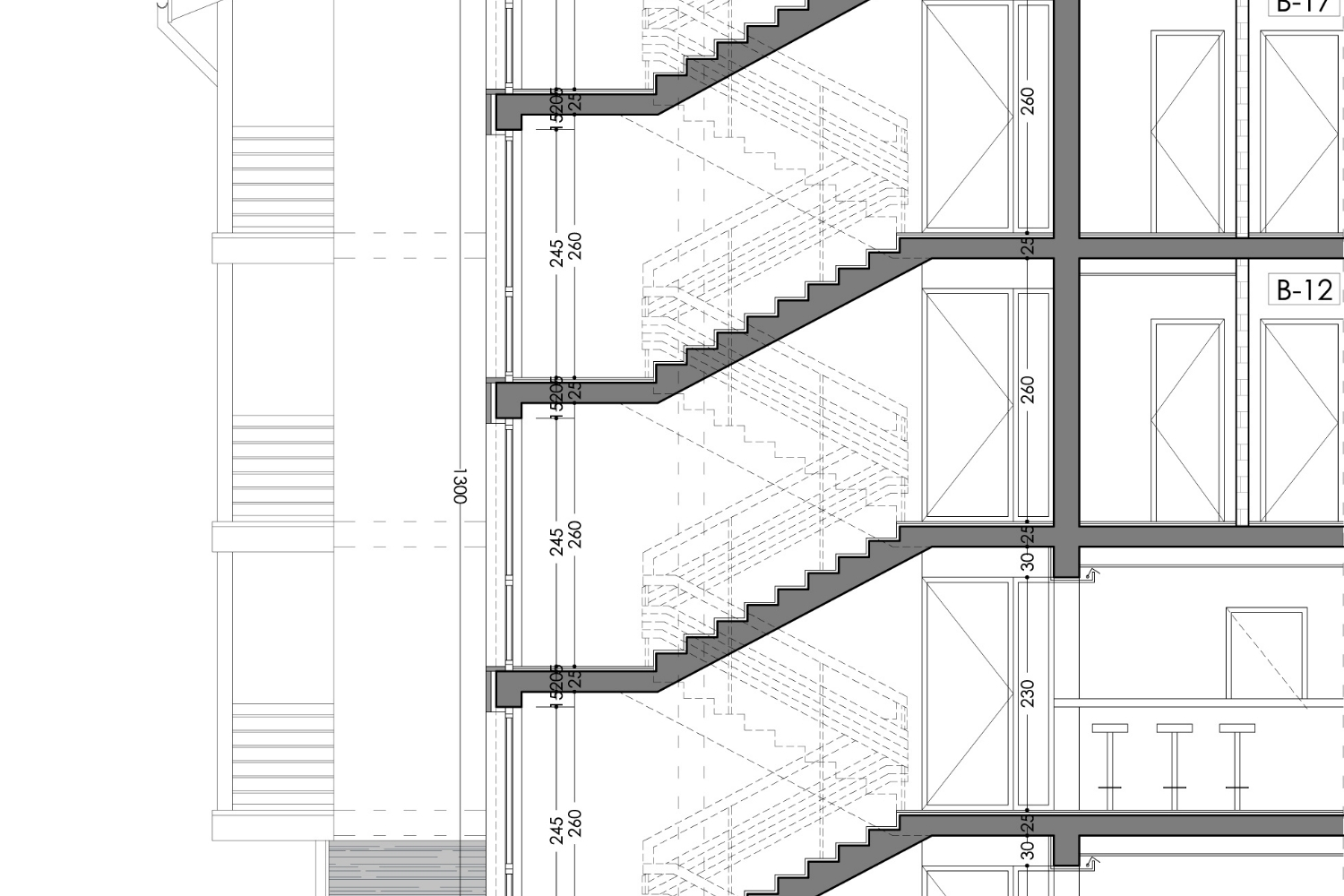

A section cuts vertically through the building to reveal what plans and elevations hide: floor-to-floor heights, ceiling volumes, structural depth, and how spaces stack and connect. Sections are where you understand how light enters and how a building actually feels inside. They range from full-building cuts at 1:100 down to detailed wall sections. Our collection of architectural section drawings shows how leading architects use them.

Detail Drawings

A detail drawing zooms into a specific junction (a window head, a parapet, a foundation edge) at a large scale like 1:5 or 1:10. Where a plan shows a wall as a single line, the detail reveals every material layer, fastener, and dimension a contractor needs. A mid-size project can include dozens of these, and they carry real contractual weight, which is why precision matters. Our guide to architectural detail drawings walks through how to produce them.

The Three-Dimensional and Freehand Types

Beyond the flat orthographic set, architects use drawings that capture depth and volume, or that simply think out loud on paper. Studying real examples helps here, and archives like ArchDaily’s architectural drawing collection show how practicing architects handle each type.

Axonometric and Isometric Drawings

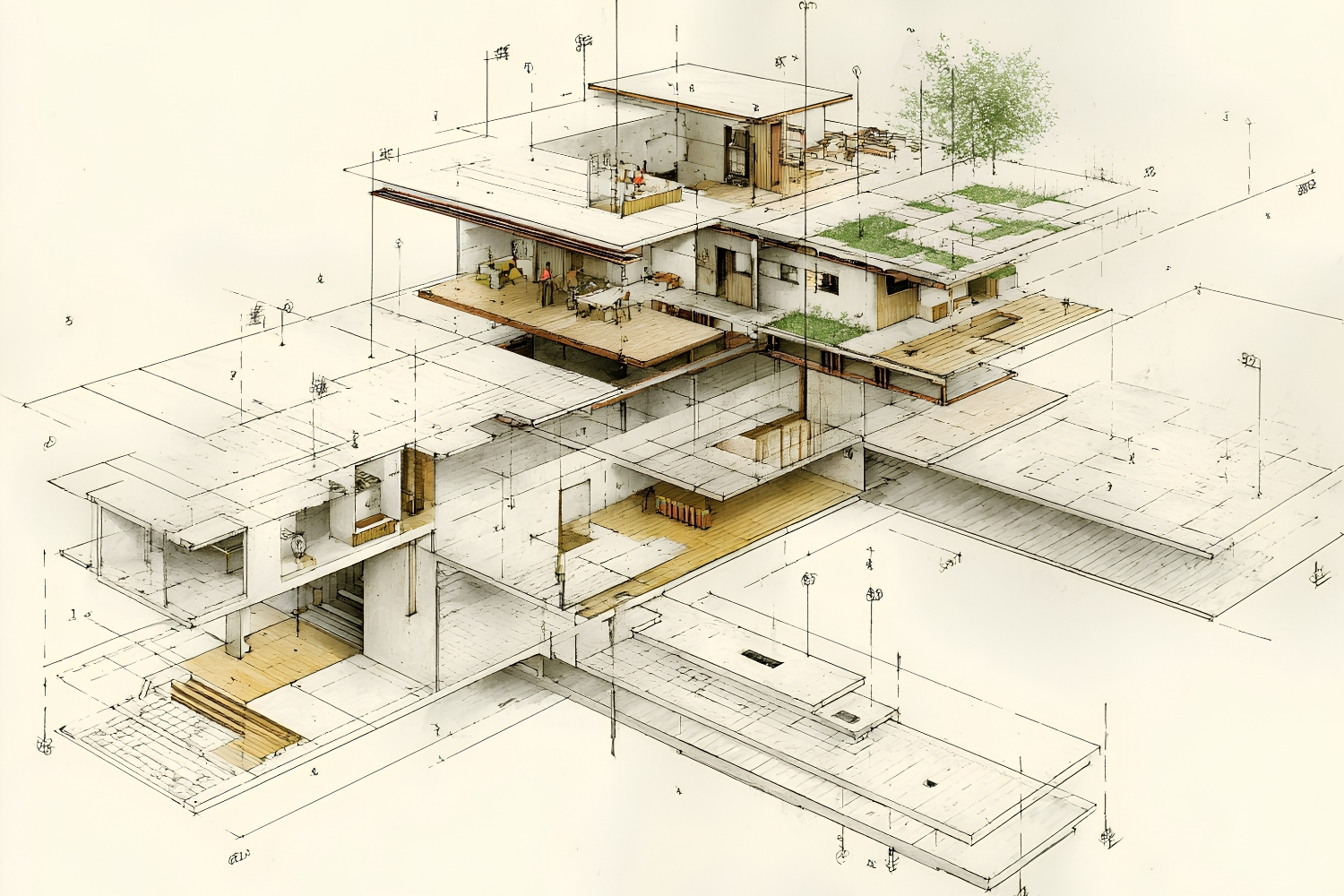

Axonometric drawings are a form of parallel projection that show three sides of a building at once while keeping measurements true along each axis. Unlike perspective, lines never converge, so you can scale directly off the drawing. Isometric is one specific subset where all three axes sit at equal angles. These views are popular for exploded diagrams that pull a building apart layer by layer. Our explainer on axonometric drawings covers the projection types.

Perspective Drawings

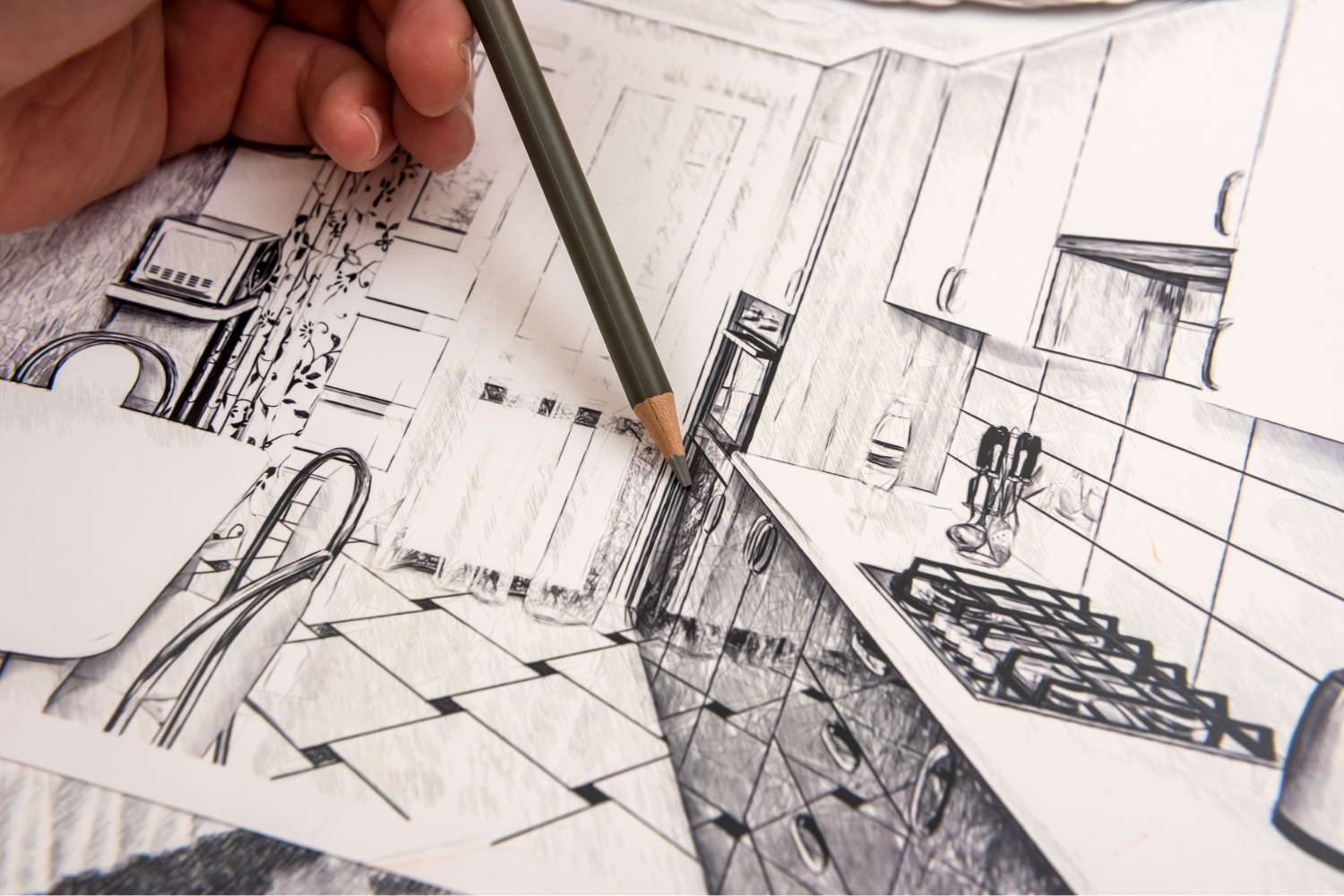

A perspective drawing mimics how the human eye actually sees, with lines converging toward one, two, or three vanishing points. This makes it the most realistic and intuitive view for clients, but it distorts scale, so it works as a communication tool rather than a measured document. Perspectives are strongest in presentations and competition boards where atmosphere matters more than dimensions.

Concept Sketches

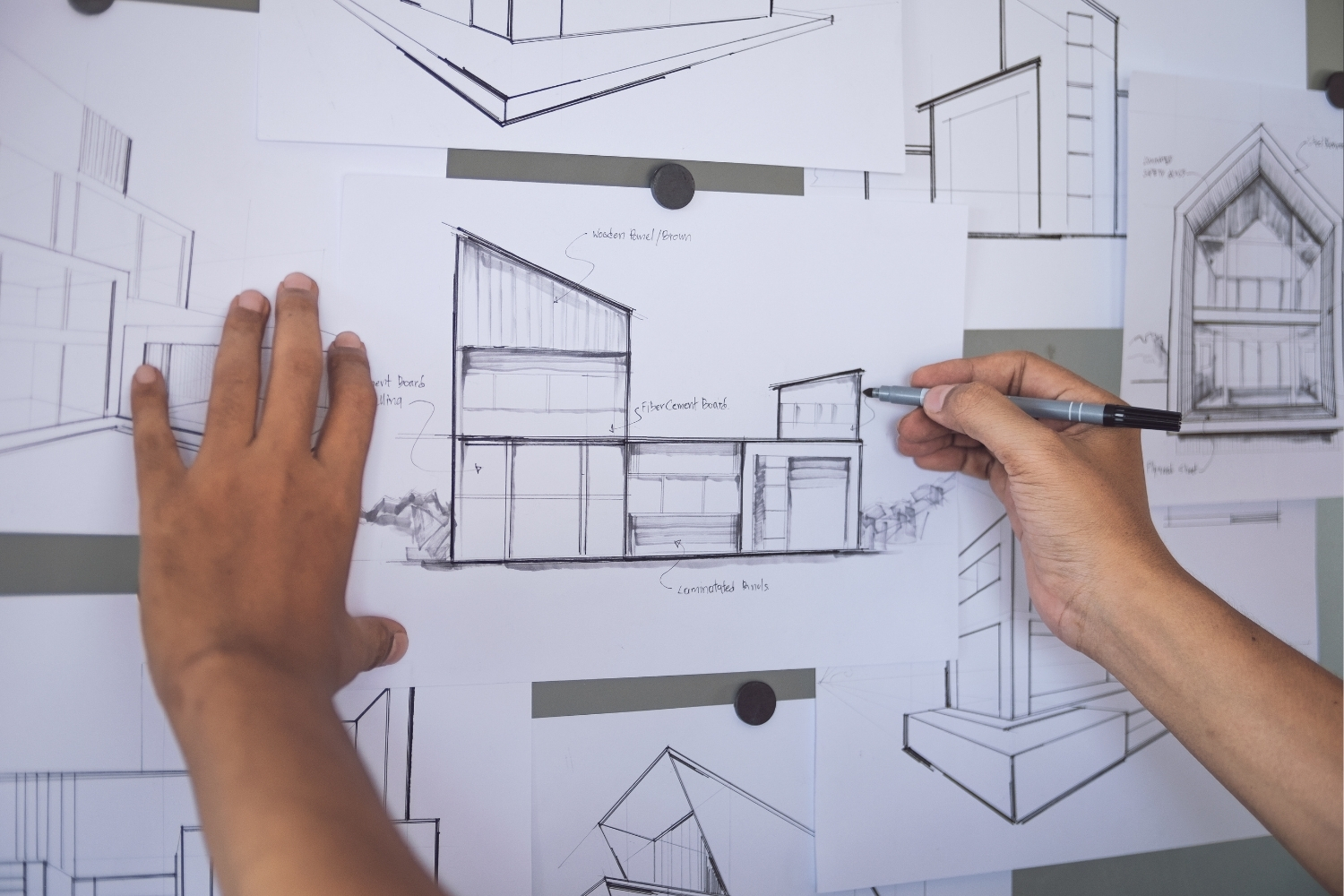

Concept sketches are fast, freehand drawings made to test and develop an idea before any precise work begins. They are thinking tools, not presentation pieces, and they stay deliberately rough. Many respected architects, including Le Corbusier and Renzo Piano, relied on hand sketches throughout their careers because drawing by hand forces quicker decisions. These early studies often sit alongside architectural diagrams, which serve a related but distinct role.

Quick Comparison of the Main Drawing Types

The table below summarizes what each drawing type shows and when you are most likely to use it:

Drawing Type	What It Shows	Typical Use
Floor Plan	Room layout from above	Design and construction
Site Plan	Building on its plot	Planning permission
Elevation	One vertical face	Facade design, permits
Section	Vertical cut, interior heights	Spatial and structural design
Detail Drawing	Close-up of a junction	Construction documentation
Axonometric	3D view, true to scale	Diagrams, system breakdowns
Perspective	3D view, realistic depth	Client presentations
Concept Sketch	Rough idea study	Early design exploration

Where to Go From Here

Your next step: pick one building you admire and try drawing its plan, one elevation, and a section, even roughly. Producing all three for a single project teaches you how the drawing types lock together far faster than studying each one on its own.

Frequently Asked Questions

What are the main types of architectural drawings?

The core types are floor plans, site plans, elevations, sections, and detail drawings, which are all orthographic, plus axonometric views, perspectives, and concept sketches. Plans, sections, and elevations are often called the three fundamental drawing types because together they describe a building completely.

What is the difference between a plan and a section?

A plan is a horizontal cut viewed from above, showing room layout and circulation. A section is a vertical cut viewed from the side, showing heights, levels, and how floors stack. Plans answer “where,” while sections answer “how tall and how connected.”

Which architectural drawing should a student learn first?

Start with the floor plan. It is the most referenced drawing in any set, and nearly every other drawing type, from sections to elevations, ties back to it. Once plans feel natural, move on to sections and elevations.

Are architectural drawings made by hand or by computer?

Both. Most final construction drawings are produced in CAD or BIM software such as AutoCAD or Revit, while early concept sketches and study drawings are often done by hand. Many architects still sketch by hand to think, then refine digitally for presentation and documentation.
