Concept Diagram Architecture: Types, Examples & How to Create

Creating a diagram is one of the most important steps of architectural presentation techniques. A concept diagram in architecture serves as the visual bridge between abstract design thinking and concrete spatial solutions. We are trying to better introduce architectural diagrams to all architects and architecture students. For that reason, in this article, we will talk about the conceptual diagram, which is the second part of the architectural diagram types series. In the continuation of the article, you can get information about what conceptual diagrams are, how they are created, and how they differ from other diagram types such as structure diagrams and bubble diagrams.

Why Do We Need To Create Concept Diagrams in Architecture?

Architectural diagrams are made in order to best presentations of architectural projects. As a result, the sorts of diagrams are determined by the subject to be conveyed. Diagrams are required by architects since technical drawings and renderings are insufficient to describe architectural projects. Only architects and professionals understand technical intricacies, two-dimensional plan and section drawings, and other techniques of representation. Professional renderings are easily understood by everyone, but they are frequently insufficient to describe the project. Architects use architectural diagrams to provide the finest explanations. In this article, we will talk about the conceptual diagram, which is the second diagram of the architectural diagram types series. In the continuation of the article, you can get information about what conceptual diagrams are and how they are created.

Understanding why concept diagrams matter in architecture is essential for both students and professionals. A well-crafted conceptual architecture diagram communicates the designer’s intent far more effectively than pages of written description. According to Archisoup, architectural diagrams operate precisely between form and word, making them indispensable for conveying design ideas to clients and collaborators. Whether you are preparing for a professional presentation or a student jury, concept diagrams architecture professionals rely on will strengthen your communication.

What Is a Conceptual Diagram in Architecture?

A conceptual diagram is a graphic representation of the relationships between abstract concepts in projects. It is used to help visualize processes or systems at a high level by using a succession of distinct lines and shapes. Conceptual diagrams are commonly used in all design fields and architecture. They can be built in a variety of ways to meet the needs of the project. Abstract thoughts are represented as text, encased in forms on a blank background, and connected by a series of arrows or lines in certain popular conceptual diagrams. A fundamental notion is frequently placed in the heart of the diagram, and additional aspects are depicted in relation to this central concept. Some conceptual diagrams, especially in architecture, explain which concepts and ideas come together with buildings with a more massive approach.

In essence, a conceptual architecture diagram distills the core idea of a project into its simplest visual form. Unlike technical drawings that focus on dimensions and materials, concept diagrams architecture professionals create focus on relationships, hierarchies, and the guiding principles behind a design. The American Institute of Architects (AIA) emphasizes the importance of clear visual communication throughout the design process, and conceptual diagrams play a central role in achieving that clarity.

Concept diagrams contain the initial ideas, main concepts and all supporting elements of the project. All elements present in concept diagrams are for architects to convey their projects in the best way possible. It is not possible to read a project through renders or two-dimensional drawings. Concept diagrams explain all concepts below, above, inside and outside the project. Concepts in themselves are a very important element in architecture. Because a concept affects your project from the first lines to the last touches. Architects remain true to the concepts of their projects from start to finish. At the end of the day, they need conceptual diagrams to explain these concepts in a professional way and explain their place in the project. Let’s learn how to create conceptual diagrams, one of the most important types of architectural diagrams!

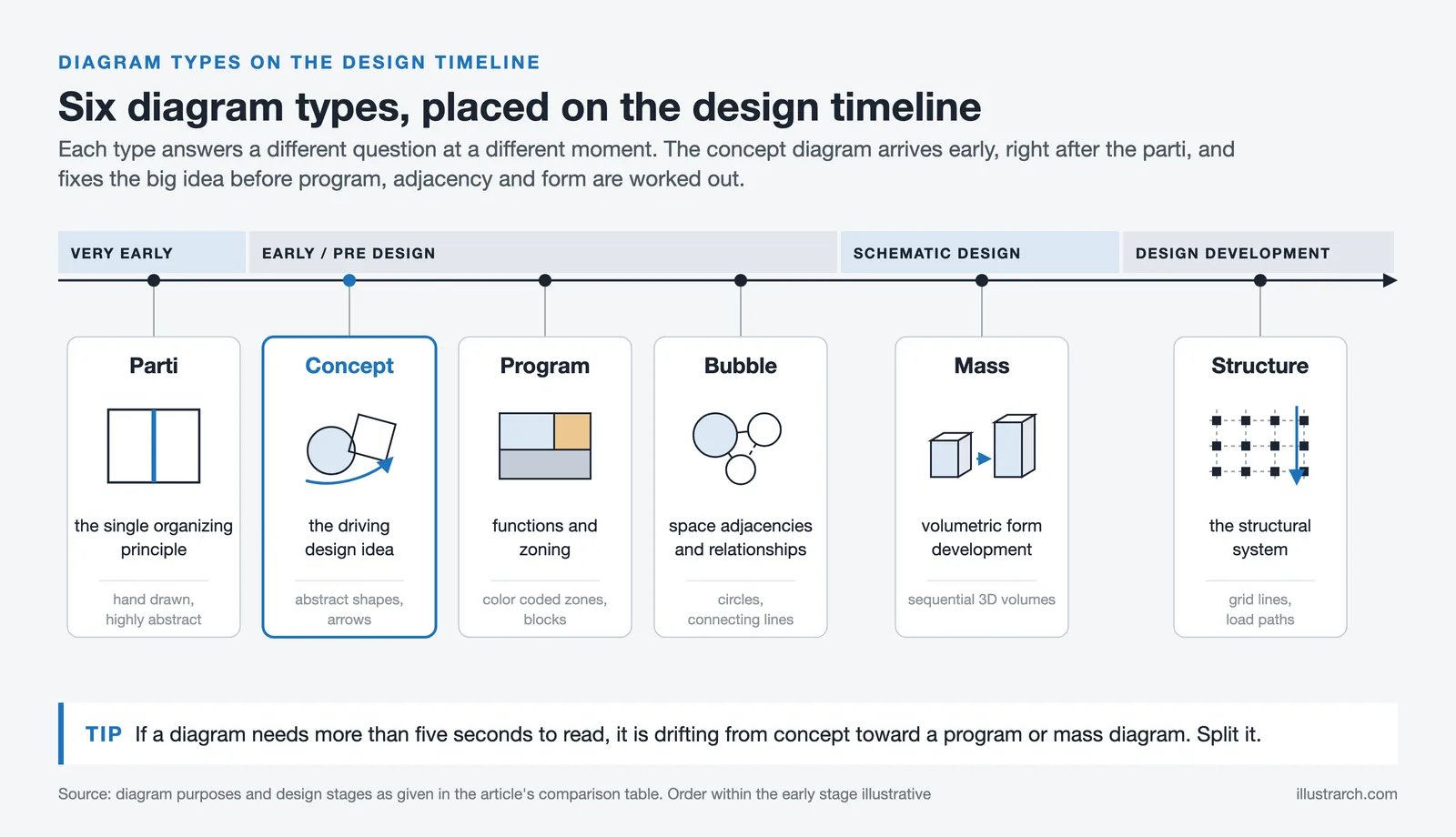

Concept Diagram vs. Other Architectural Diagram Types

Understanding where conceptual diagrams fit within the broader landscape of architectural diagram types helps architects choose the right tool for each stage of their design process. While all architectural diagrams serve communication purposes, each type has a distinct focus.

A concept diagram captures the fundamental design idea — the “parti” or driving concept behind a project. It answers the question “what is the big idea?” In contrast, a bubble diagram focuses on spatial relationships and adjacencies between programmatic elements, typically created during early space planning. Structure diagrams explain the structural system and load-bearing elements, while program diagrams illustrate functional zoning and spatial distribution.

A mass diagram in architecture is closely related to conceptual diagrams but specifically focuses on volumetric studies. Mass diagrams show how building volumes are shaped, subtracted, or added to create the final form. They are often used as a subset of conceptual diagrams to demonstrate how the design concept translates into three-dimensional massing. Architects frequently combine mass diagrams with conceptual diagrams to present a comprehensive story of form development — from abstract idea to physical volume.

How To Create Conceptual Diagrams

Conceptual diagrams are made in order to explain the numerous ideas of architects in a simple and understandable way. As an architect, your aim is to explain in the best way how your concept works in all phases of the project. For this, it is necessary to create detailed but easy-to-understand diagrams. Before creating conceptual diagrams, consider how your abstract ideas become concrete. What is your strongest idea? Aim to highlight this idea first with conceptual diagrams. How did the physical and environmental conditions of your project evolve with this idea?

What is the relationship between the public and private spaces of your project and your concept? Conceptual diagrams are there to explain such relationships, to convey ideas to those who want to understand the project.

To create concept diagrams, you can start by creating simple masses through 3D drawing software that you model your project on. A step-by-step explanation would be better than layering on a single image. Concepts and ideas are abstract, it is necessary to find simple ways to describe the abstract. You must write the necessary explanations in the conceptual diagrams as text. If you use legible texts when explaining the concepts of your architectural project, you will express your ideas in the best way. Besides, you can create abstract conceptual diagrams besides mass and spatial diagrams. Especially with concept maps, you can explain how your ideas are related from the most primitive to the present.

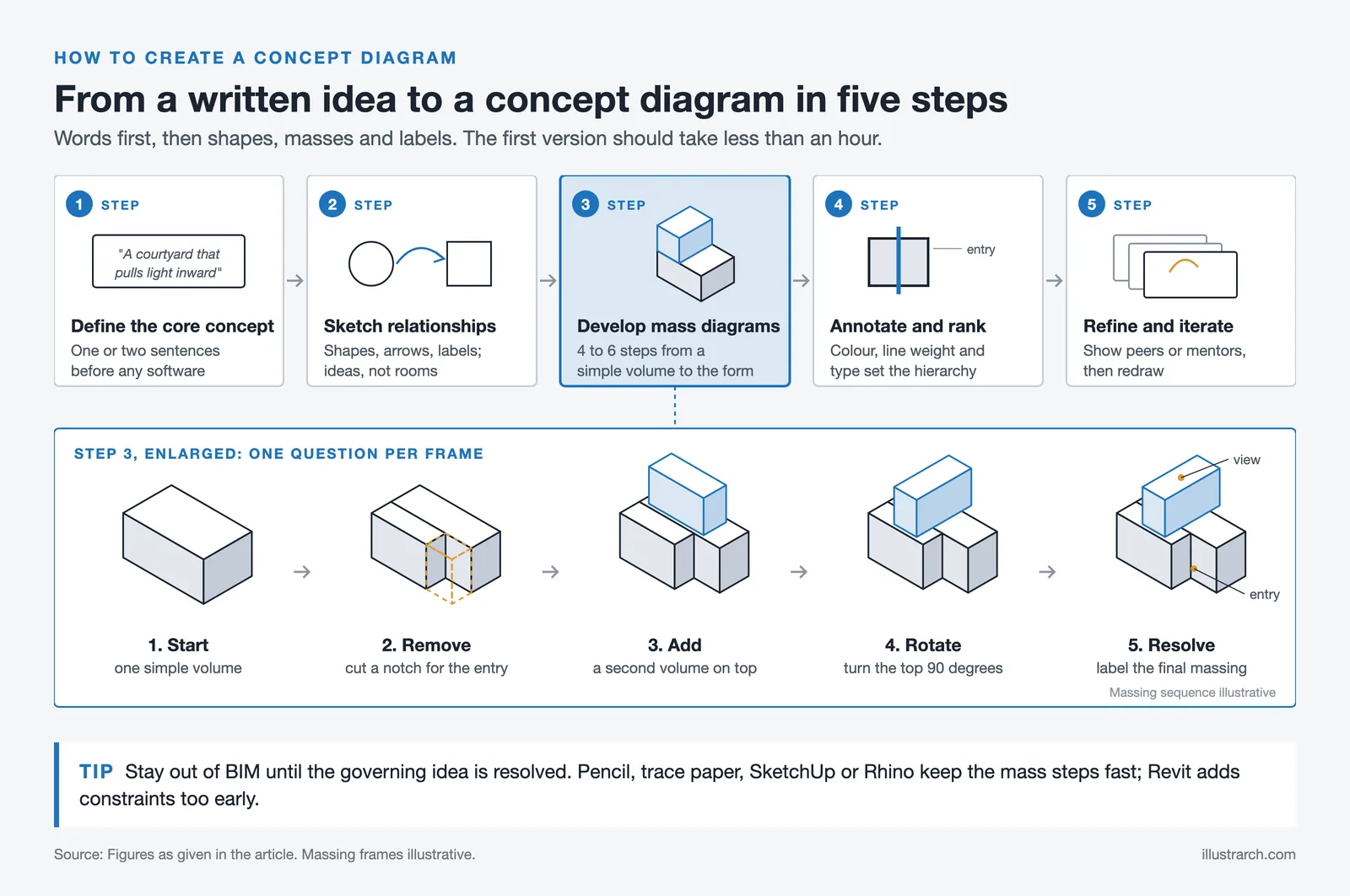

Step-by-Step Process for Creating Architecture Concept Diagrams

To help you get started with creating effective conceptual diagrams, here is a structured approach that works for both students and professionals:

1. Define Your Core Concept: Before opening any software, clearly articulate your design concept in one or two sentences. This driving idea will be the foundation of your conceptual architecture diagram. Whether it is about porosity, connection to nature, or layering of public and private spaces, your concept must be crystal clear.

2. Sketch Abstract Relationships: Begin with rough hand sketches. Use simple geometric shapes, arrows, and labels to map out how your concept influences spatial organization. At this stage, your diagram should feel closer to a bubble diagram but focused on ideas rather than rooms.

3. Develop Mass Diagrams: Translate your abstract sketches into three-dimensional mass studies using software like SketchUp, Rhino, or Revit. A mass diagram in architecture typically shows sequential steps — from a simple volume to the final massing — illustrating how the concept shapes the building form.

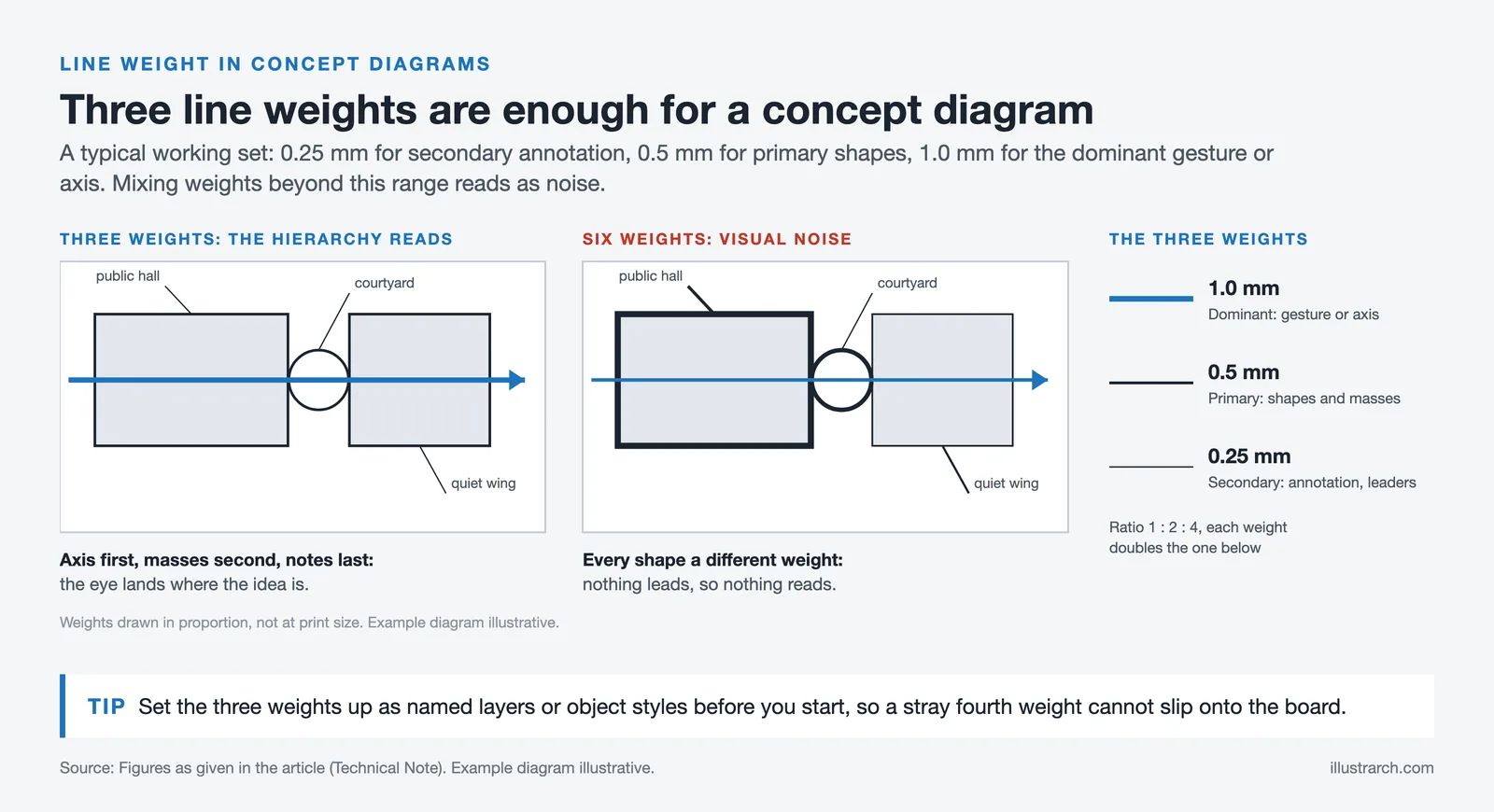

4. Add Annotations and Hierarchy: Label each element of your conceptual diagram clearly. Use color coding, line weights, and typography to create visual hierarchy. As highlighted in our guide to creating architecture diagrams, clarity and readability are paramount.

5. Refine and Iterate: Share your concept diagrams with peers or mentors for feedback. The best conceptual diagrams go through multiple iterations before reaching their final form.

Types of Conceptual Diagrams in Architecture

Conceptual diagrams in architecture can take various forms depending on the project’s needs and the stage of design development. Understanding these variations helps architects select the most effective approach for communicating their ideas.

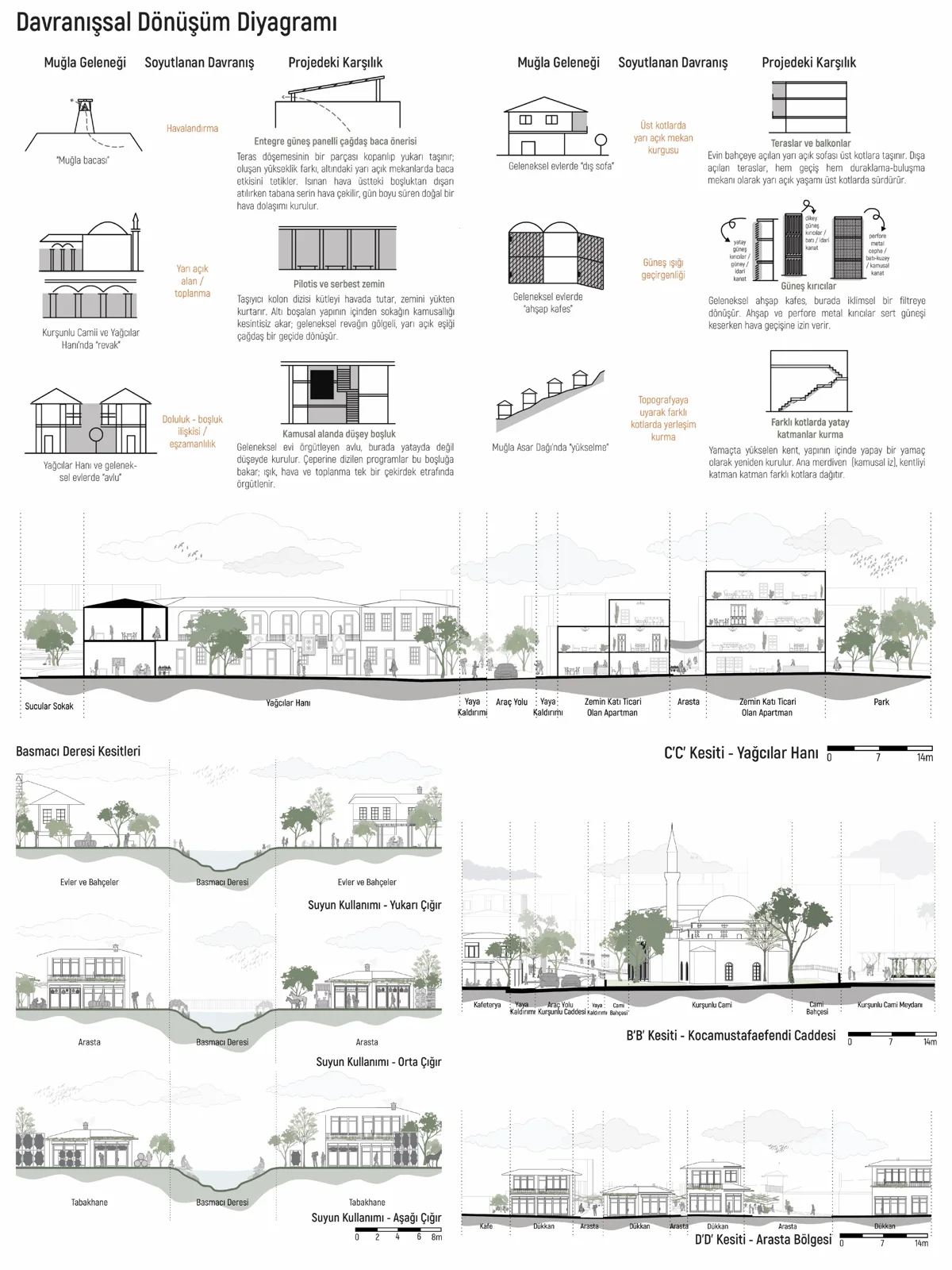

Abstract conceptual diagrams use minimal graphics — simple lines, shapes, and text on a blank background — to represent relationships between ideas. These are ideal for early brainstorming sessions and presenting initial design concepts to stakeholders.

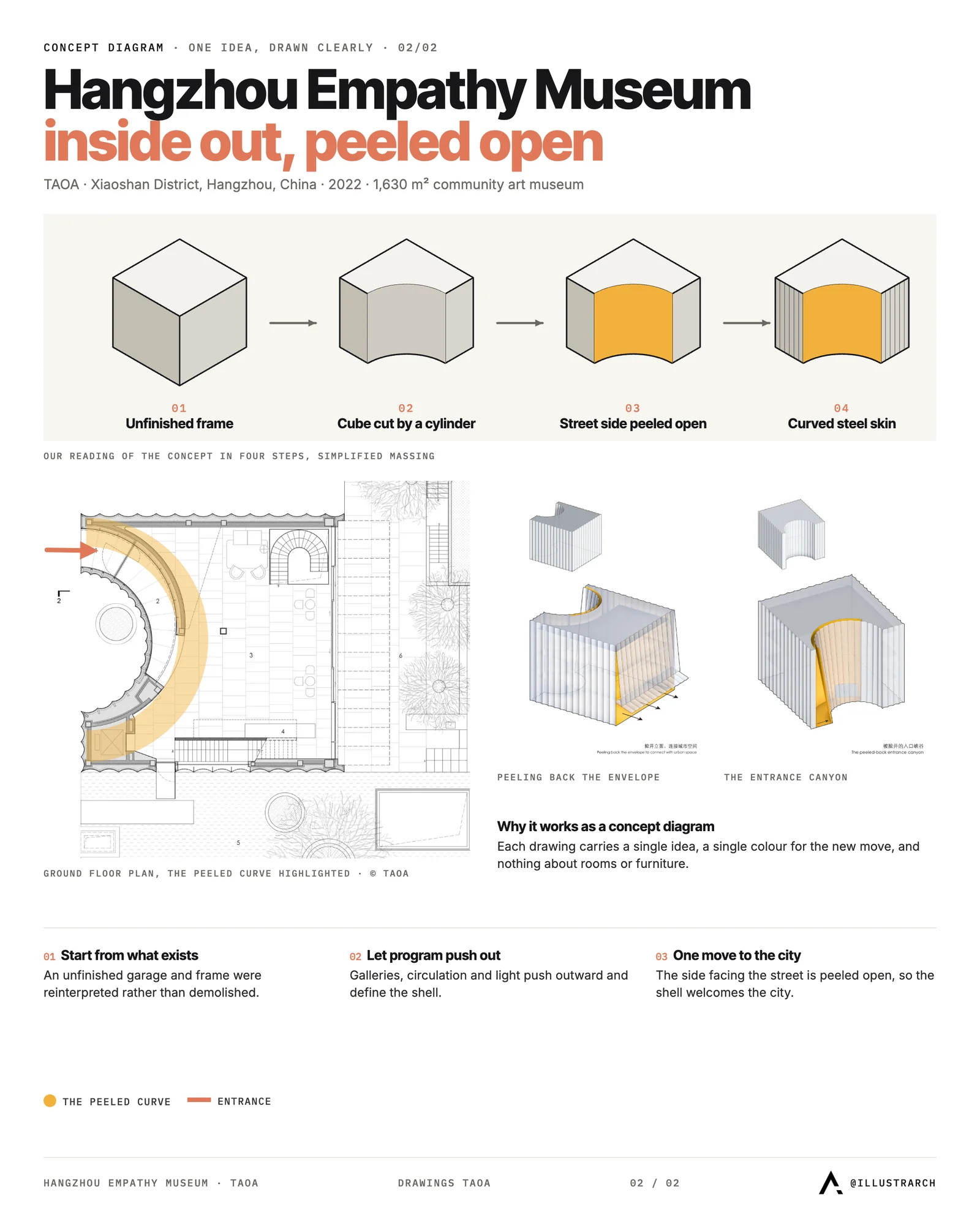

Mass-based conceptual diagrams translate ideas into volumetric representations. These diagrams show the step-by-step evolution of building form, demonstrating how the architect’s concept drives massing decisions. This is where the mass diagram architecture approach becomes particularly useful, as it bridges the gap between abstract thinking and physical form.

Concept maps use node-and-link structures to show how different ideas connect to one another. They are especially valuable for projects with complex programmatic requirements, where multiple concepts must work together harmoniously.

Parti diagrams capture the essential organizing idea of a design in its simplest possible form. As noted by First In Architecture, parti diagrams are among the most abstracted of all architectural diagrams and are typically hand-drawn.

Tools and Software for Creating Concept Diagrams

Modern architects and architecture students have access to a wide range of tools for creating conceptual diagrams. The choice of tool often depends on the level of abstraction needed and personal workflow preferences.

For quick, abstract concept diagrams, tools like Adobe Illustrator, Figma, and even Procreate on iPad offer flexibility for creating clean vector graphics with text annotations. For mass-based conceptual diagrams, 3D modeling software such as SketchUp, Rhino, and Revit allows architects to create sequential massing studies that can be exported as diagram sequences.

Many architects combine hand sketching with digital refinement — starting with rough pencil sketches to capture the spontaneity of the concept, then digitizing and refining in software for professional presentation. The Illustrarch Bubble Diagram Maker is a free browser-based tool that can help with early spatial planning before diving into more detailed conceptual diagrams.

For those working on collaborative projects, cloud-based tools like Miro and FigJam enable real-time co-creation of concept maps and diagrammatic explorations.

Common Mistakes to Avoid in Conceptual Architecture Diagrams

Even experienced architects can fall into common pitfalls when creating conceptual diagrams. Being aware of these mistakes will help you produce more effective and communicative diagrams.

Overcomplicating the diagram is the most frequent mistake. A conceptual diagram should simplify, not add complexity. If your diagram requires extensive explanation to understand, it has defeated its purpose. Aim for a concept diagram architecture professionals can grasp within seconds.

Ignoring visual hierarchy weakens communication. Every conceptual diagram should have a clear focal point and a logical reading order. Use scale, color, and positioning to guide the viewer’s eye through the diagram.

Confusing concept diagrams with technical drawings is another common error. Conceptual diagrams should remain abstract and idea-driven. Adding too much technical detail — like dimensions, material callouts, or structural annotations — turns a concept diagram into something else entirely.

Neglecting context can make a conceptual diagram feel disconnected. Even at the conceptual stage, showing how your design idea responds to site conditions, climate, or urban context adds depth and credibility to your architecture concept diagram.
