Architecture sheets by students are among the most searched topics in architectural education. A successful architecture sheet communicates design intent through clear visual hierarchy, strategic use of white space, and a logical sequence from concept to detail. Whether you are preparing a jury submission, a competition entry, or a portfolio piece, studying real student examples is the fastest way to understand what works and why.

Architecture sheets are more than just layouts, they are the visual storytellers of our designs. A well-composed architectural presentation sheet helps us communicate concepts, ideas, and solutions in a way that is both professional and captivating. Whether we are pitching a project to a client or presenting to a panel, these architect sheets are our opportunity to make a lasting impression.

We know that creating effective architectural sheets requires a balance of creativity and precision. From organizing content to selecting the right visuals, every detail in your architecture sheet matters. When done right, they not only highlight our design skills but also demonstrate our ability to think critically and present clearly. Below, we break down 10 standout examples, each showing a different approach to layout for architecture presentations, that every student can learn from.

What Makes a Great Architecture Sheet?

Before diving into examples, it is worth understanding what separates an effective architecture sheet from a mediocre one. The best architectural sheeting balances three core elements: visual hierarchy, content clarity, and narrative flow. A strong layout for architecture presentations guides the viewer’s eye from concept to detail without confusion. According to the American Institute of Architects (AIA), clear communication of design intent is among the most critical skills for emerging professionals.

The key components of successful architect sheets include a well-defined grid system, consistent typography, strategic use of white space, and a logical sequence of information, from site context and concept diagrams to technical drawings and final renders. Students who master the art of architectural presentation early on carry that advantage throughout their careers.

How Should Architecture Sheets by Students Look in 2026?

In 2026, successful architecture sheets are no longer about fitting as much information as possible onto a single board. Top architecture students now prioritize clarity, hierarchy, and storytelling. Presentation sheets function like visual narratives, guiding the jury’s eye step by step from concept to outcome. Strong negative space, limited color palettes, and consistent diagram styles define the most effective boards, making complex ideas easier to read and remember.

Another clear trend is the inclusion of process visuals rather than only final renders. Diagrams explaining site logic, environmental response, circulation, or parametric decisions are increasingly placed before photorealistic images. This “before and after” logic helps reviewers understand why a design looks the way it does, not just what it looks like. Students who balance analytical diagrams with atmospheric visuals tend to produce architectural sheets that feel both intellectual and professional.

Typography choices have also evolved. Students are moving away from decorative fonts and instead using clean, editorial-style type systems similar to architectural magazines. This shift reinforces credibility and aligns student work with professional architectural standards. Resources like ArchDaily and Dezeen continue to influence how students approach board composition. The most successful architecture sheets of 2026 communicate less, but communicate it far better.

How to Plan Your Architecture Sheet Before Opening Any Software

Most students open InDesign or Photoshop before they have decided what the sheet is actually trying to say. This is the root cause of cluttered, unfocused boards. Before touching any design software, take 10 minutes with a blank piece of paper and answer three questions: What is the single most important drawing on this sheet? What order should the viewer read the content? What can be removed entirely?

Once those decisions are made on paper, the software becomes a production tool rather than a decision-making tool. Students who follow this workflow consistently produce cleaner boards than those who design by filling available space. Start with a rough grid sketch, mark where the focal element sits, then assign supporting content to secondary zones. The full guide to successful architectural presentation boards covers grid systems and spacing principles in more detail.

For a reference point on how process diagrams should be structured before they reach the sheet, the guide to successful architectural diagrams by architects is worth reviewing before you start composing.

10 Successful Architecture Sheet Examples

For more student presentation sheet examples, you can also browse the second collection of 10 successful presentation sheets on illustrarch.com.

Sheet 1 – Neighbourhood Characters

Highlighting the neighborhood’s features establishes context for the architectural design. We gather specific data on location, demographics, zoning, and surrounding infrastructure to present a clear narrative on the architecture sheet.

“Neighborhood Characters” is an architectural urban design presentation sheet that shows different characters of a neighborhood and the respective design solutions. The sheet communicates through illustrations and the composition clearly shows the characters and the respective solutions. Although the sheet is filled with text, the layout for architecture communication is composed and colored such that the illustrations become dominant. This is a strong example of how architectural sheeting can use color coding to separate analysis from design response.

Sheet 2 – Network: When the Community Comes Together

This architecture sheet highlights an architectural concept designed for the Fentress Global Challenge, showing innovative solutions for London Heathrow Airport. Our primary focus was on creating an efficient and aesthetically compelling design aligned with the airport‘s operational and environmental needs.

“Network: When the Community Comes Together” is an urban intervention or a public space designed to bring the community together. It translates the design through an isometric diagram and it becomes the central part of the sheet. Note how the detailed activities at specific places and construction details are shown in circles, effectively breaking down the complex design into understandable segments. The architecture sheet becomes minimalistic with the focus on the design and the context becomes the background.

Sheet 3 – Fentress Global Challenge: London Heathrow Airport Design

This presentation sheet highlights a proposal for the Fentress Global Challenge, focusing on innovative airport design at its core. The design aims to redefine the passenger experience while prioritizing environmental sustainability.

“London Heathrow Airport” is an airport design from the Fentress Global Challenge 2016. Since it is an airport design, the position of the airport in context became important, and so the city isometric explains the whole design. The illustrations below resemble old yet futuristic movie shots, fitting for a futuristic design competition. The layout for architecture in this sheet demonstrates how scale and context can drive the entire composition of an architecture sheet.

Sheet 4 – Fentress Global Challenge: Airport Design

This architectural sheet presents a proposal for the Fentress Global Challenge, focusing on innovative airport design. The design aims to redefine the passenger experience while prioritizing environmental sustainability.

One of the simple yet successful presentations of airport design. The detailed and exploded isometric on a white background clearly explains every part of the design, and the visualizations on the side show the interior of the spaces in the airport. This architecture sheet proves that a clean white background and a single strong diagram can carry the entire narrative.

Sheet 5 – Design for Vietnamese-German University

This sheet covers the design proposal for the Vietnamese-German University campus, focusing on cultural integration and sustainable urban development. The approach integrates modern architectural techniques with contextual elements that reflect the university’s goal to promote international collaboration and academic excellence.

“Design for Vietnamese German University” is a campus design. The presentation has three parts: a plan, concepts, and a render. Since it is a campus design, the plan becomes the core of the design and so of the presentation. Each block is explained in words through the plan and the render in aerial view explains the overall design. This architectural sheet is a textbook example of how large-scale projects benefit from a plan-centered layout.

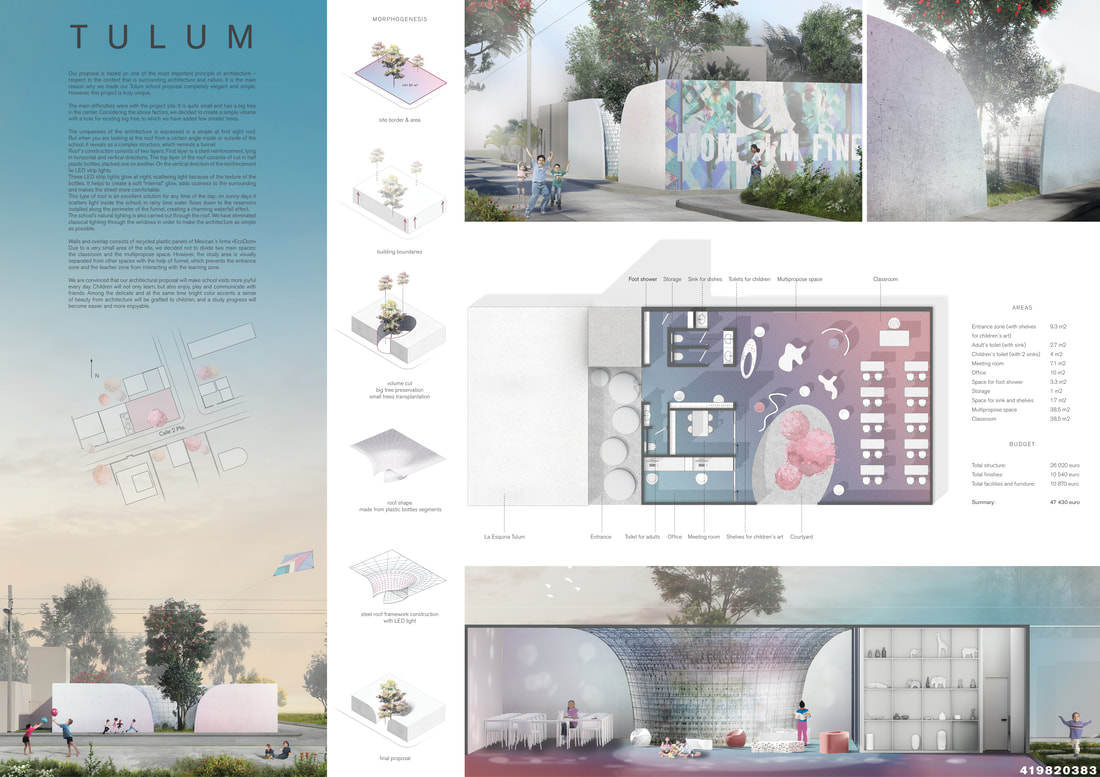

Sheet 6 – Tulum Plastic School: Archstorming Competition

The Tulum Plastic School submission centers on sustainable design and community engagement. This project repurposes plastic waste into construction materials to create an eco-friendly educational space near Tulum, Mexico. The design addresses environmental challenges while offering functional solutions for local needs.

Tulum Plastic School is the shortlisted entry from the Archstorming school competition. The combination of cool colors makes the presentation sheet stand out. There is a clear distinction between the three parts with renders, concept, and drawings each in their own section. This is one of the best examples of how a cohesive color palette can unify all elements on an architecture sheet.

Sheet 7 – KOMA-CBD

The KOMA-CBD Project presents an innovative approach to mixed-use urban development with a focus on sustainability and functional integration. The design balances commercial, residential, and recreational areas in a dense urban core, drawing on sustainable design principles and modern architectural techniques.

“KOMA-CBD” is the design of a vertical commercial development and is the best example of a portrait architecture sheet for a vertical building design. The isometric plan with the view is one of the time-efficient yet powerful tips in composing diagrams. The uniqueness of the sheet lies in presenting the isometric plans as the main feature and reducing the render to a small circle, which is not the usual approach. For vertical projects, this layout for architecture presentation is highly effective.

Sheet 8 – Play with Plinth

Incorporating the Plinth concept into architect sheets demonstrates creativity and spatial depth. This design approach emphasizes the strategic layering of elements to establish visual hierarchy and dynamism.

Play with Plinth is another winning school design from the Archstorming competition. This architecture sheet is well composed with a variety of content, including plans, construction drawings, renders, isometric, concept diagrams, and sections. Although it has a lot of content, each part of the sheet is distinct yet coherent with appropriate space for each. For students preparing boards with dense content, check the full guide to successful architectural presentation boards for spacing and hierarchy principles. It is a masterclass in visual storytelling within a single board.

Sheet 9 – Community Rampant

Community Rampant is the design of a community center. The subtle white background of the architecture sheet highlights all the content and gives importance to even smaller diagrams. Minimal content makes the sheet clear and composed, explaining the design without noise. The uniqueness of the sheet lies in keeping the background white and making all the content clear and visible. As the Royal Institute of British Architects (RIBA) often notes, clarity in presentation reflects clarity in design thinking.

Sheet 10 – Tiber Living Lab × Roma

Tiber Living Lab is the redevelopment of the Tiber basin in Rome. The sheet is divided into two sections of different colors, with a sectional render in one and concept notes and diagrams in the other. This presentation is a practical time-saver since one strong illustration explains the project in full. For students working under tight deadlines, this architectural sheeting approach delivers maximum impact with minimal elements.

Layout for Architecture Sheets: Key Principles to Follow

Across all ten examples above, a few common principles define strong architecture sheets. First, visual hierarchy is non-negotiable. The most important drawing or render should occupy the largest area and be placed where the eye naturally lands. Second, consistency in graphic language, covering line weights, color palettes, and font choices, creates a cohesive reading experience. Third, every successful architectural sheet treats white space as a design element, not wasted area. These principles align with portfolio best practices outlined by institutions like the RIBA and leading architecture competitions worldwide.

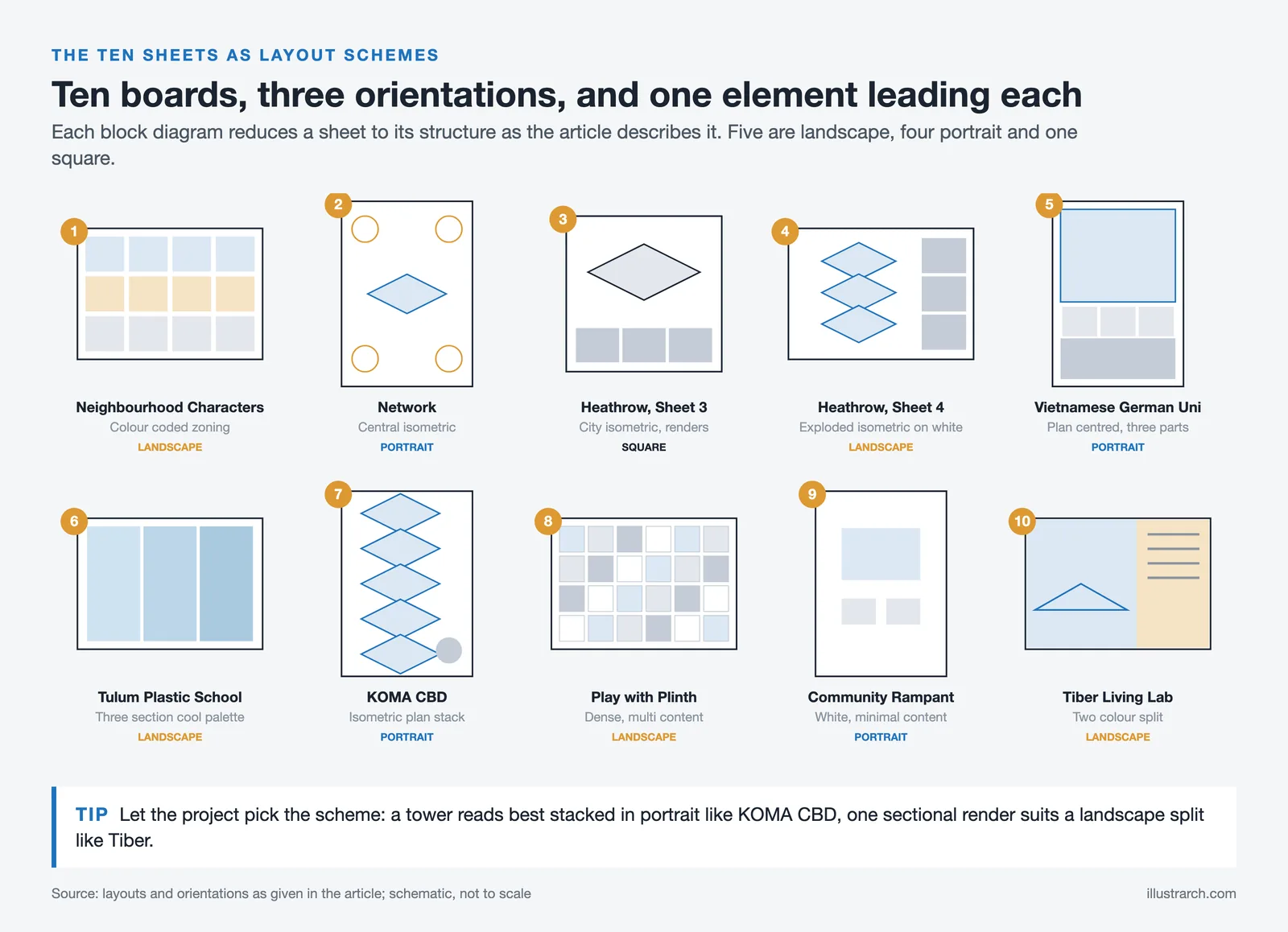

The table below summarizes the layout approaches used across the 10 examples:

When developing your own layout for architecture presentations, start by defining a grid. A well-structured grid helps you place drawings, text blocks, and diagrams in a logical order. Then decide on your narrative flow: does the viewer read left to right, top to bottom, or is there a central focal point? These decisions should be made before you open any design software. Whether you are preparing a concept diagram or a final competition board, a clear grid and flow will improve any architecture sheet.

For a broader look at how successful diagrams fit into presentation boards, the guide to 10 successful architectural diagrams by architects is worth reading alongside these examples. And if you want a deeper breakdown of all architectural diagram types, the architectural diagram types guide covers every category used in professional and student presentations.

What Software Do Architecture Students Use for Presentation Sheets?

Knowing which tools to use is just as important as knowing what to put on the sheet. Most students build their architecture sheets using a combination of two or three programs. Adobe InDesign handles the overall layout grid and typography. Adobe Photoshop is used for color correction, background adjustments, and compositing renders. Adobe Illustrator works best for diagrams, icons, and vector-based graphics.

For generating the drawings and renders that go onto the sheet, students commonly use AutoCAD and Revit for plans and sections, SketchUp or Rhino for 3D models, and rendering engines such as V-Ray, Lumion, or Enscape for photorealistic output. Some students also use Affinity Publisher as a lighter InDesign alternative for layout work. Whichever tools you choose, the final architecture sheet should always be exported at a minimum of 150 DPI for digital presentation and 300 DPI for print.

For a practical breakdown of how these tools fit into the full process, see the guide to mastering architectural presentation sheets. For layout tips from another authoritative source, Archisoup’s presentation board guide and the First in Architecture board tips article are both worth bookmarking.

Final Thoughts: Why Strong Architecture Sheets Matter More Than Ever

In today’s architectural education landscape, architecture sheets are not just a requirement for final submissions. They are a direct reflection of how an architecture student thinks, analyzes, and communicates design ideas. A well-crafted architectural sheet can elevate an average project into a compelling architectural narrative, while a poorly structured one can weaken even the strongest concept. This is why successful presentation boards consistently balance clarity, intention, and visual discipline rather than relying on excessive graphics or overcrowded layouts.

As seen in the most successful student architect sheets, the real strength lies in decision-making. What to show, what to remove, and how to guide the viewer’s eye are just as important as the design itself. Clear hierarchies, readable diagrams, and intentional use of white space help reviewers understand the project within seconds. An architecture sheet is not judged line by line but read at a glance, making structure and storytelling critical.

Architecture students who treat architectural sheets as communication tools rather than decorative posters will stand out. Whether the goal is academic success, competition entries, or building a professional portfolio, strong architect sheets demonstrate maturity, architectural thinking, and readiness for practice. Mastering this skill early not only improves studio outcomes but builds a foundation for clearer design expression throughout an architect’s career. For downloadable templates to get started, see the practical guide to architectural presentations on illustrarch.com.
