Best Free CAD Blocks and Resources for Architects

Free CAD blocks are ready-drawn DWG or DXF elements, doors, furniture, sanitary fixtures, trees and people, that you insert into a drawing instead of drafting them again. The strongest sources are ARCAT, CAD-Blocks.net, Bibliocad, CADdetails, Dimensions.com and Freecads. Which one fits depends on the file format you need and the licence attached to the download.

Most roundups on this topic count files, which is the least useful number available. A library of 120,000 blocks with no stated licence is worth less to a practice than one holding 5,000 you can point a client to. What follows covers where the files are, what condition they arrive in, and which ones belong in paid work. If you need 3D geometry and BIM objects rather than 2D symbols, our roundup of free CAD model websites covers that side separately.

What Makes a Free CAD Block Worth Inserting?

Four things, and file count is not one of them. The geometry has to be drawn at 1:1 in a stated unit system so it lands at the right size on insertion. It should sit on layer 0, or on a few clearly named layers, so it takes the properties of the layer you insert it onto rather than dragging a foreign layer structure into your file. The insertion point needs to be useful, a wall face or a centreline rather than a corner of the bounding box. And there should be a licence you can find without emailing anyone.

Blocks failing the first two tests are why a 400 KB plan becomes a 40 MB one. Every file carrying its own text styles, dimension styles and layer names adds definitions the drawing keeps forever, whether the block is still in it or not. Scale mismatches are the other common failure and they surface late, because a block inserted at the wrong unit factor looks correct on screen until someone measures it. Our reference on CAD scale factors covers the arithmetic behind that.

Check the Software You Already Pay For

Before opening a browser, open DesignCenter. AutoCAD ships with sample architectural blocks, and if your subscription includes the Architecture toolset you have a large library sitting unused on your own machine. Autodesk states that the AutoCAD Architecture toolset carries more than 8,500 intelligent architectural objects and styles, with multi-view block content packs supplied in both imperial and metric profiles through DesignCenter.

These carry something no download site offers: they already match the layer standards the toolset applies, and they behave predictably in elevation and section views. For generic plan work, the built-in content plus a handful of custom blocks covers most daily needs before you go looking for free CAD blocks elsewhere.

Best Free CAD Block Sites for Architects

Six sources, each solving a different problem. The order below runs from the most reliable for construction documents to the most useful for early design work.

ARCAT

ARCAT holds thousands of building product details in DWG and PDF, organised by construction division and manufacturer. It states plainly that there are no dues, no subscriptions and no registration requirement, which is rare among manufacturer platforms. Because the drawings track real, orderable products, they belong in a specification package in a way generic geometry does not, and every file is governed by a licence agreement you accept at the point of download. Browse it at ARCAT CAD Drawings.

CAD-Blocks.net

The cleanest source of generic 2D content here. The site describes over 5,000 DWG files in thematic collections, compatible with AutoCAD 2026 and earlier, drawn by architects and draftsmen, and purged so geometry sits on layer 0 only. That last detail matters more than the file count, because a purged layer-0 block adds nothing to your drawing’s definition tables. No registration required, with good coverage of autocad furniture blocks in plan and elevation. Visit CAD-Blocks.net.

Bibliocad

Bibliocad describes itself as the largest free download library of CAD blocks for architecture and engineering, spanning 2D and 3D with files for AutoCAD, Revit and SketchUp. Volume is the draw, along with building types documented from Spanish-speaking practice that English-language libraries rarely carry. An account is required, and quality varies because much of the catalogue is contributed, so treat entries as starting points rather than finished drawings. See Bibliocad.

CADdetails

CADdetails serves manufacturer-sponsored 2D details, 3D models and specification documents in DWG, RVT, SKP and PDF. It is strongest on site work, landscape furnishings, paving and hardscape assemblies, the standard conditions most practices redraw on every project. Pairing each detail with the spec text that goes into the project manual is what separates it from a plain block library. Explore CADdetails.

Dimensions.com

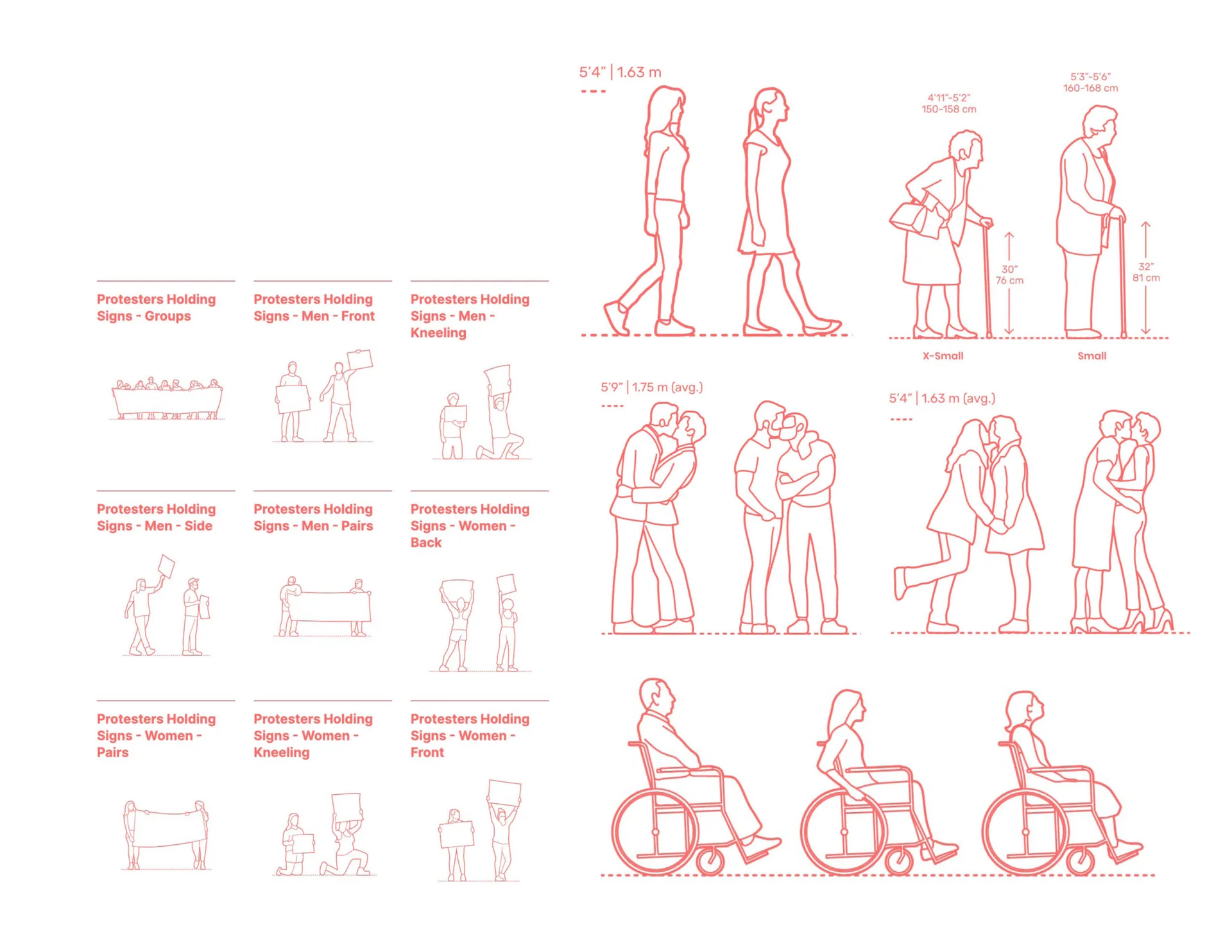

Dimensions.com works differently from every other entry. Rather than hosting uploads, it publishes dimensioned reference drawings researched and drawn in-house, in DWG, SVG and JPG for 2D and 3DM, SKP and OBJ for 3D. When you need the clearance a wheelchair turning circle takes, or what a standard banquette measures, it is the fastest reliable answer. Read the licensing section below before it reaches a client drawing.

Freecads

Freecads covers architectural elements drawn metric at 1:1, so doors, windows, stairs, columns and roof details scale cleanly to 1:50, 1:100 or 1:200, with dimensions following standard construction sizes rather than approximations. Format support is unusually wide for a free autocad blocks source, running from DWG and DXF through SKP, RVT and IFC. Content is community uploaded under a revenue share, so apply the same checks you would to any contributed file. See Freecads architecture blocks.

Free CAD Block Sources Compared

The table below summarises what each source serves and where it fits in a project:

How Do You Check a Free CAD Block Before You Insert It?

Open it in a blank drawing first, never straight into a live file. Run AUDIT to catch errors, PURGE to strip unused definitions, then check three values: the drawing units, the block’s overall dimension against a known figure, and the insertion point. Anything passing those three is safe to bring across with DesignCenter or a copy and paste.

The dimension check is the one people skip. Measure a door leaf that should read 900 mm, or a bed that should be 1900 mm long. If the number is out by a factor of 10, 25.4 or 1000, the file was drawn in a different unit system and the insertion scale needs correcting rather than the geometry. The same class of error produces mismeasured prints, as set out in our guide to reading a graphic scale on drawings.

The Licence Question Most Block Libraries Leave Unanswered

Free to download and free to use in paid work are two different statements, and the gap between them catches practices out. The clearest example sits on one of the most widely recommended sites in this category. Dimensions.com grants an irrevocable, worldwide licence to download, copy, modify and use its drawings for non-commercial uses, with attribution and a working link required where the work is referenced, and directs users to contact the company for commercial purposes. Its terms are published at dimensions.com/legal. Resale, repackaging and redistribution of its DWG, SVG, SKP and OBJ files are ruled out entirely.

That is a fair position for a company funding its own drafting, but it is not what most architects assume when a site turns up in a list of free autocad blocks. A block used to check a clearance during design is one thing. The same block sitting inside an issued drawing set on a fee-paying project is another.

Compare that with sources that state the opposite plainly. CADBlockDWG publishes a licence granting a worldwide, royalty-free right to download, modify and use its blocks in commercial deliverables with no attribution required, excluding only resale of the collection itself. ARCAT attaches a licence agreement to every download. Those are the terms you want on file when a client or an insurer asks where a drawing came from.

Three questions settle it for any library offering free CAD blocks. Does the site publish licence terms at all, or only a terms of use page about the website itself? Do those terms name commercial use in words rather than by implication? And is the content user contributed, in which case the site may not hold the rights it is granting you? Where answers are missing, the safe use is reference only and the block gets redrawn before it reaches the set. Annotation elements are quicker to draw yourself anyway, and our reference on architectural drawing symbols covers the conventions they follow.

Licence terms on free CAD block platforms change without notice and vary by individual file. Check the current terms attached to each download, and seek professional advice where content will be used in commercial deliverables.

Building a Block Library You Will Actually Use

The practices that draft fastest do not have the biggest collection. They have fifty blocks they trust. Every autocad blocks free download you keep is a file someone must maintain, version and explain to a new starter, so the useful move after a download session is subtraction.

Build one folder per category, name files by what they are and their size rather than where they came from, and keep a single reference DWG holding one instance of every approved block at 1:1. That file becomes your Tool Palette source, and dragging from a palette beats any search on any website. For categories used on nearly every project, furniture and human figures being the obvious two, a vetted set such as our AutoCAD Blocks Box saves collecting the same content file by file.

Keep the same discipline across formats. A practice running DWG and BIM together needs both libraries held to one standard, and the same three licence questions apply to free Revit family sources as to DWG ones. Where a block has to be rescaled, the architectural scale converter handles metric and imperial conversion without arithmetic, and our roundup of free tools for architectural design covers the software side of the same question.
